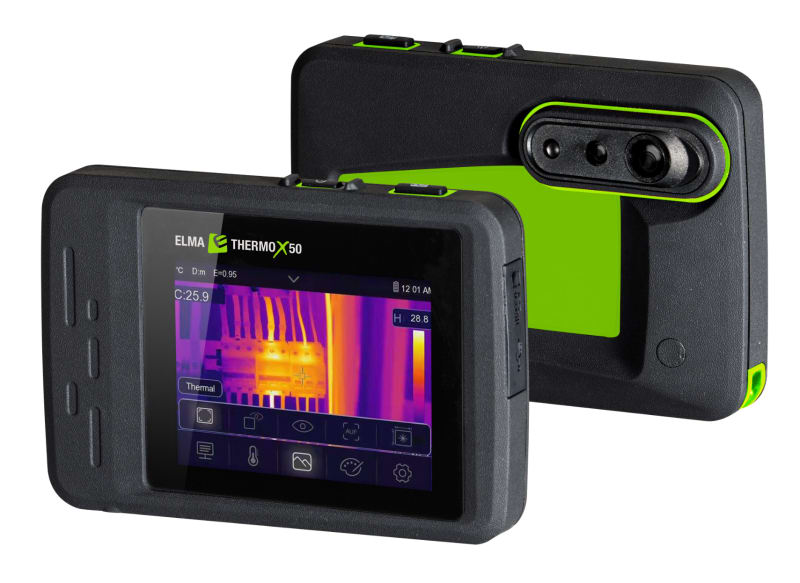

Elma Instruments Thermo X50 Thermal Pocket Camera 256×192 px
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 5706445840755 is a Thermo X50 pocket thermal imaging camera with a 256 × 192 px sensor, 4-inch touch screen and a temperature range of -10 to 500 °C. Blended thermal and visual imagery, internal memory, SD-card slot, USB and Wi-Fi connectivity support field inspection workflows. Typical use is electrical, mechanical and building surveys where a compact, battery-powered thermographer is required.
Technical Specifications
- Manufacturer part number (MPN)
- 5706445840755
- EAN / GTIN
- 5706445840755
- Sales unit
- pcs
- Sensor resolution (horizontal)
- 256 px
- Display diagonal
- 4 inch
- With touch screen
- Yes
- Thermal image
- Yes
- Visual image
- Yes
- Thermal-/visual image (in one image)
- Yes
- Video recording
- No
- Frames per second (fps)
- 4
- Thermal sensitivity at 30 °C
- 2 °C
- Temperature measuring range
- -10–500 °C
- Relative measurement accuracy
- 2 %
- Wave band
- 7–14 µm
- Field of view (FOV) horizontal
- 56 °
- Field of view (FOV) vertical
- 42 °
- Auto focus
- No
- Auto orientation
- No
- Focus stacking
- No
- Increase image size
- No
- With memory function
- Yes
- Internal memory
- Yes
- SD-card slot
- Yes
- MiniSD-card slot
- No
- MicroSD-card slot
- No
- CompactFlash I card slot
- No
- CompactFlash II card slot
- No
- USB connection
- Yes
- Bluetooth interface
- No
- Wi-Fi-compatible
- Yes
- Analogue video out
- No
- HDMI-connection
- No
- Ethernet
- No
- Gigabit Ethernet
- No
- With communication interface RS-232
- No
- With communication interface RS-485
- No
- FireWire (IEEE1394) connection
- No
- Detector cooled
- No
- Ambient temperature
- -10–50 °C
- With laser
- No
- With built-in torch
- No
- With stand holder
- No
- Suitable for exchangeable lenses
- No
- With digital alarm
- No
- With humidity sensor
- No
- With laser distance measurement
- No
- Battery powered
- Yes
- External power supply required
- No
- Input voltage AC 50 Hz
- 230–240 V
- Input voltage AC 60 Hz
- 230–240 V
- Input voltage DC
- 5–7 V
- Power consumption
- 1 W
- Max. battery duration
- 4 h
- Weight
- 0.196 kg
- Country of origin
- China
Standards & Compliance
- HS Code
- 9027.50
Cross References
- EAN 5706445840755
- SAP 1200824590
- Code 84007268
Product Documentation
