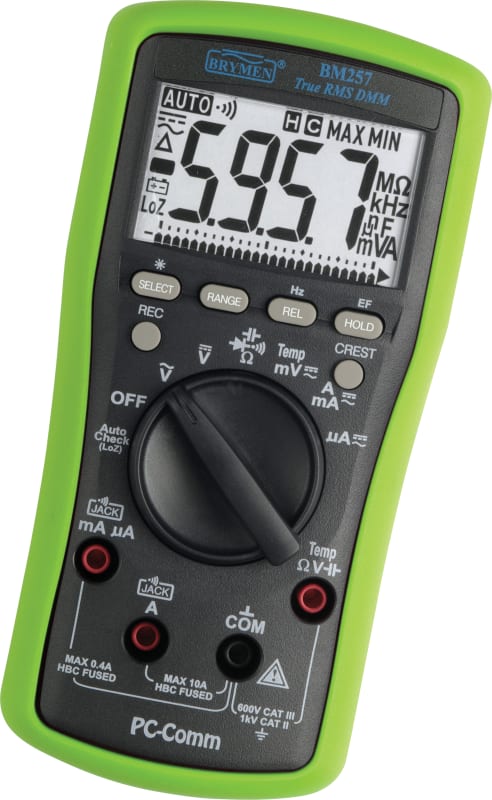

ELMA BM 257 True RMS

Elma Instruments 42257 True RMS mini-multimeter with two new functions. Auto-Check is an intelligent function that automatically detects and selects AC voltage, DC voltage and continuity / resistance.

Manufacturer part number (MPN)

42257 EAN / GTIN: 5706445410293 Sales unit: pcs Package quantity: 20 pcs Current supply: Battery Measured value memory: Yes Indication: Analogue/digital Measuring range selection: Manual/automatic True RMS measurement: Yes Continuity test: Yes Isolation resistance measuring range: 0–60 MOhm Interface: No Capacitance measurement: Yes Frequency measurement: Yes With decibel measurement (dB): Yes Measurement principle: True root mean square Data hold: Yes IR interface: No Explosion-tested version: No Analogue bar graph display: Yes Resistance test/diode test: Yes Inductance measurement: No Lowest resolution, DC voltage: 0.1 mV Lowest resolution, DC current: 1 µA Lowest resolution, AC voltage: 0.1 mV Lowest resolution, AC current: 1 µA Lowest resolution, resistance: 0.1 Ohm With conductivity measurement: No Max. voltage measuring range AC: 1000 V Max. voltage measuring range DC: 1000 V Max. current measuring range, AC: 10 A Max. current measuring range, DC:

HS Code

9031.80

• EAN 5706445410293
• SAP 1000092019
• Code 8584686
