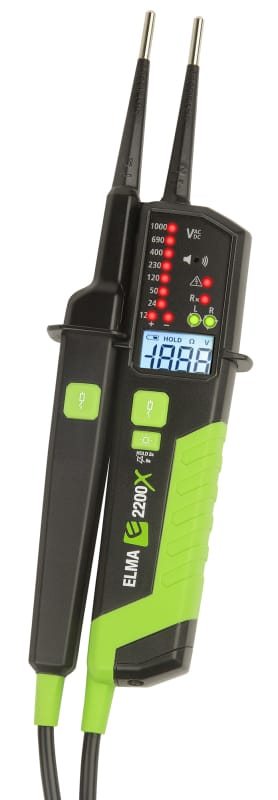

Elma 2200X Two-Pole Voltage Tester CAT IV
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma 2200X is a two-pole voltage and continuity tester with an internal switchable load. The load discharges induced ghost voltage and permits loading of the measurement point to confirm a live circuit. Covers 6–1500 V with LED, LCD and analogue indication, single-pole and contactless phase detection, phase-rotation display and CAT IV rating for use on service entrances and industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- Elma 2200X
- EAN / GTIN
- 5706445140404
- Sales unit
- pcs
- Current supply
- With and without battery
- Continuity test
- Yes
- Continuity indication
- Optical/acoustic
- Length
- 300 mm
- Blade length
- 40 mm
- Blade width
- 4 mm
- Voltage indication
- LED/LCD/analogue
- Internal base load
- Yes
- Single pole phase indication
- Yes
- Contactless voltage detection
- Yes
- Data hold
- Yes
- Background lighting LC-indication
- Yes
- Probe tip protection
- Yes
- Measuring point lightning
- Yes
- Voltage measuring range
- 6–1500 V
- Indication of direction of field rotation
- Yes
- Load switchable
- No
- Measuring circuit category
- CAT IV
- Type of test
- 2-pole
- Resistance measurement
- 20 Ohm
- Usable at precipitation
- No
- Resistance measuring range
- 0–2 kOhm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 5706445140404
- SAP 1200539635
- Code 82706604
