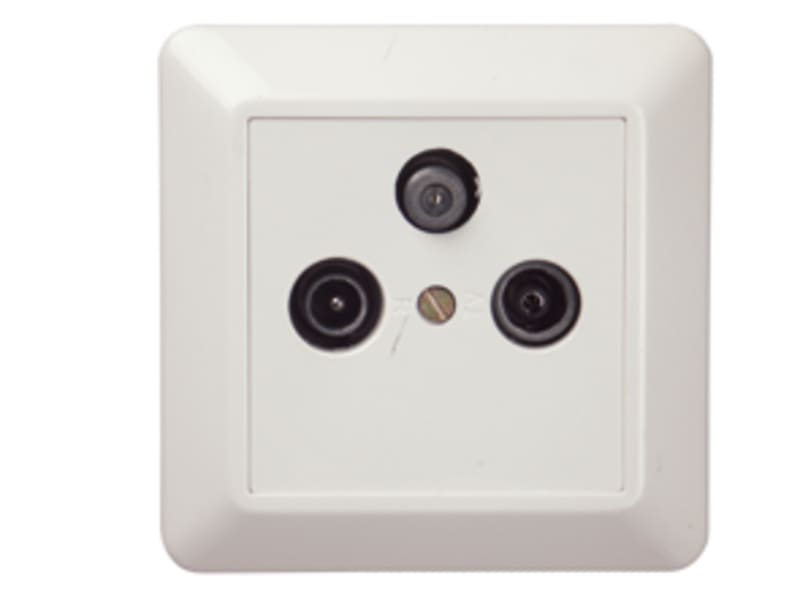

RS16 Antenna Outlet 3 dB with Satellite, End, White POLAR WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO06462 — RS16 flush-mounted antenna outlet with a satellite connection, rated 3 dB. End socket; 3 outlets for radio, TV and satellite, 47–2050 MHz, 3 dB tap loss at 860 MHz. White, RAL 9010 similar. The POLAR WHITE suffix is ELKO’s code for this white finish.
Technical Specifications
- Manufacturer part number (MPN)
- EKO06462
- EAN / GTIN
- 7020160646200
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- End socket
- Halogen free
- Yes
- Cover
- Complete housing
- Surface protection
- Untreated
- With cover
- Yes
- Frequency
- 47–2050 MHz
- Number of outlets
- 3
- Through loss at 860 MHz
- 3 dB
- Tap loss at 860 MHz
- 3 dB
- Material quality
- Thermoplastic
- Suitable for cable modem
- No
- Suitable for remote power supply
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Type of socket outlet
- TV/RD/SAT
- Tap loss at 2150 MHz
- 3 dB
- Through loss at 2150 MHz
- 3 dB
- RAL-number (similar)
- 9010
- Degree of protection (IP)
- IP20
- Surface finishing
- Glossy
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 24.5 mm
- Number of modules (module system)
- 1
- DAB+
- No
- Min. depth of built-in installation box
- 30 mm
- Anti-bacterial treatment
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8517.70
Cross References
- EAN 7020160646200
- SAP 1000052124
- Code 8863303
Product Documentation
More from ELKO
ELKO

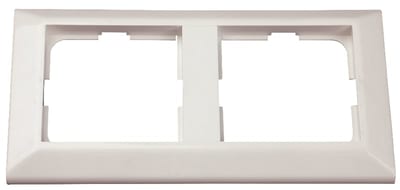

L990 KOMB PL 2 RS16 RE
EKO09874
ELKO

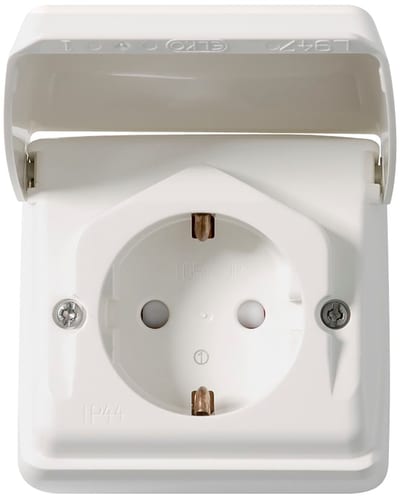

AS1054 UPT socket POLAR WHITE
EKO06764
ELKO

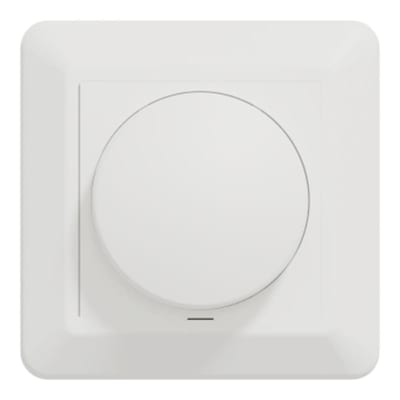

SMARTDIM Rotary Multiwire RS PURE WHITE
EKO30198
ELKO

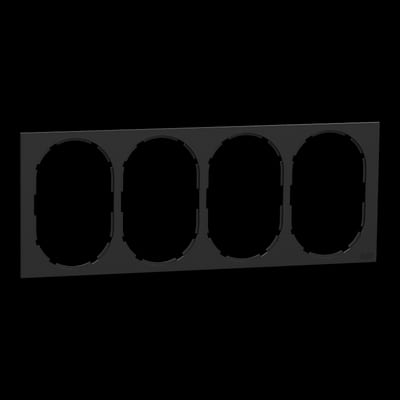

Frame 4-Hole for socket One Black
EKO50015
ELKO
Sentralpl. 2X UNI oblique One PURE WHITE
EKO50119
ELKO
JUNCTION BOX Surface LSA 4-Pair
EKO05956
ELKO

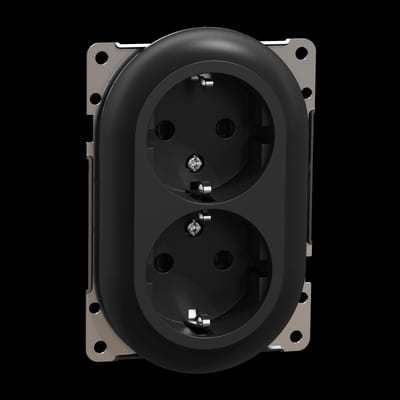

ELKO One Low-Profile Double Socket Outlet with Earth
EKO50082
ELKO

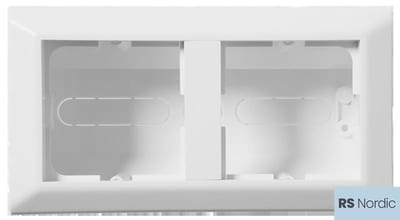

ELKO RS Nordic Double Surface Corner Installation Box White
