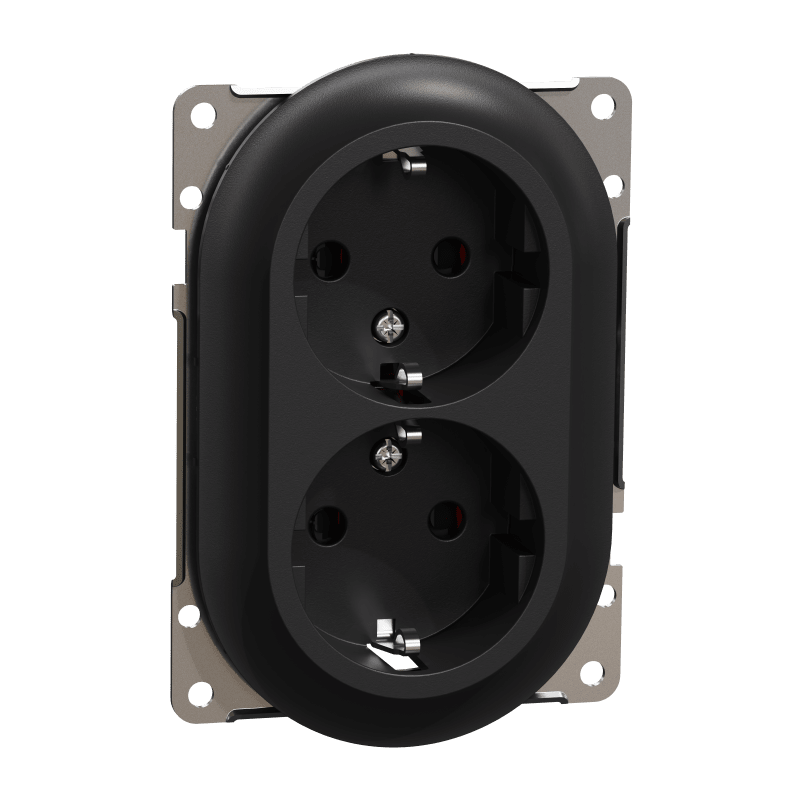

ELKO One Low-Profile Double Socket Outlet with Earth
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO50082 is a One series flush-mounted low-profile double socket outlet with earth (CEE 7/3 type F) rated 16 A at 250 V AC 50-60 Hz. The 71 x 106 x 42 mm black thermoplastic housing uses push-in clamp connections and offers IP21 with IK08 impact resistance. Halogen-free and supplied without a frame, it is packaged in sets of 50.
Technical Specifications
- Manufacturer part number (MPN)
- EKO50082
- EAN / GTIN
- 7020160500823
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Colour
- Black
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 2
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with claw and screw
- Imprint/indication
- None
- RAL-number (similar)
- 9005
- Impact strength
- IK08
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP21
- Device width
- 71 mm
- Device height
- 106 mm
- Device depth
- 42 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 31 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Number of loop throughs
- 2
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7020160500823
- SAP 1200727074
- Code 83859004
Product Documentation
