ELKO

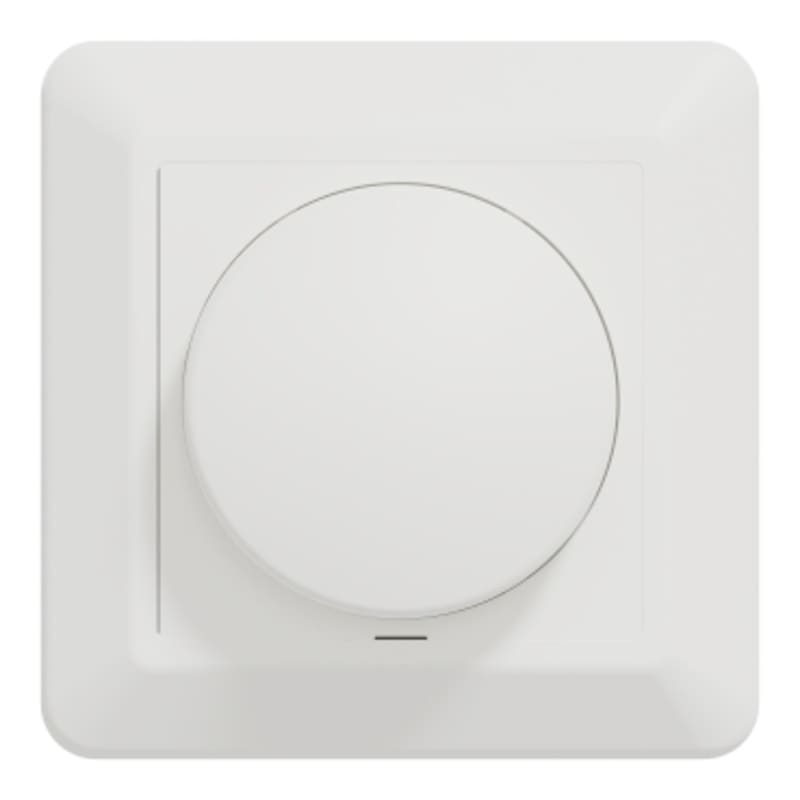

SMARTDIM Rotary Multiwire RS PURE WHITE
Part numberEKO30198EAN / GTIN7020160301987HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO - Rotary dimmer - RS Pure white - min 0W with optional neutral, 7W without - max 200W.
Technical Specifications
- Manufacturer part number (MPN)
- EKO30198
- EAN / GTIN
- 7020160301987
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Method of operation
- Turn/push button
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.4 W
- Frequency
- 50 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- No
- Impact strength
- IK02
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1–2.5 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 41 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Min. depth of built-in installation box
- 27 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 14–200 W
- Nominal power inductive load
- 14–150 VA
- Nominal power capacitive load
- 14–150 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 100 W
- Min. brightness controllable
- No
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160301987
- SAP 1200619148
- Code 83027121
Product Documentation
Document preview: SMARTDIM Rotary Multiwire RS PURE WHITE (EKO30198) — Specification sheet
