ELKO

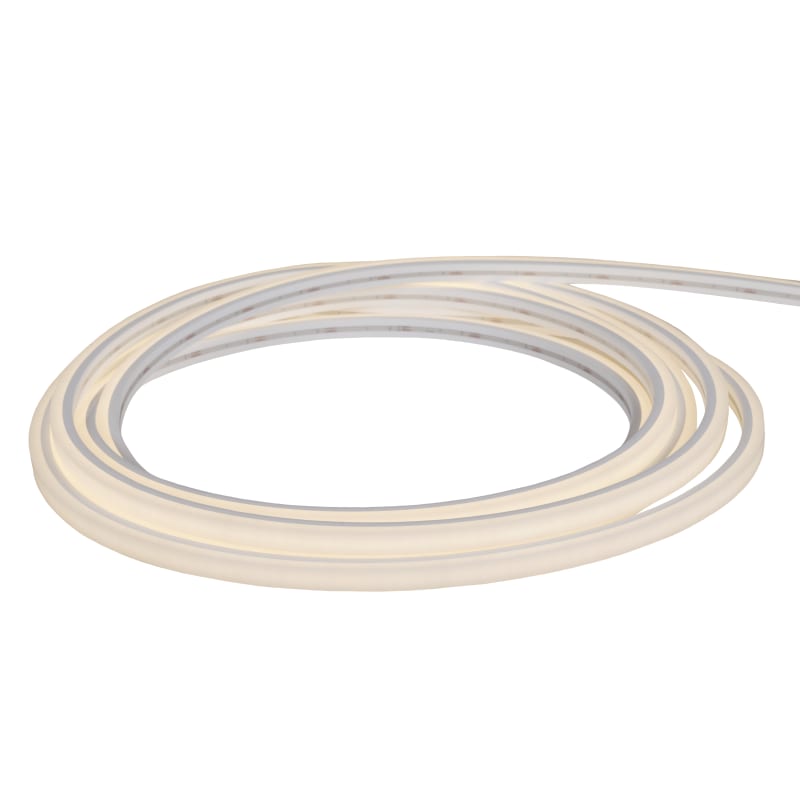

LEDstrip 24V Neon Mini IP67 3000K lpm
Part number7507401HS code9405.49
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO 7507401 LEDstrip 24V Neon Mini IP67 3000K lpm, 160°, 10W/m, 830lm/m, Ra>80. Service life L90 100 000 h. Running metre.
Technical Specifications
- Manufacturer part number (MPN)
- 7507401
- Sales unit
- pcs
- El-nummer (NO)
- 3206999
- ETIM class
- SC002706
- Voltage
- 24 V
- IP rating
- IP67
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 168
- Number of nodes per foot
- 56
- Lamp power per meter
- 10 W
- Lamp power per foot
- 3 W
- Luminous flux per meter
- 830 lm
- Voltage type
- DC
- Beam angle
- 160 °
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP67
- Protection class according to IEC 61140
- III
- Max. system power
- 10 W
- Colour of light
- White
- Constant light output (CLO)
- No
- Colour rendering index CRI
- 80-89
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 10 mm
- Height/depth
- 10 mm
- Length
- 1000 mm
- Lowest bending radius
- 50 mm
- Length of particular segments
- 35 mm
- With end piece
- No
- With connection set
- No
- With protective cover
- Yes
- Self-adhesive
- No
- Type of wiring
- Ending
- Number of poles
- 2
Standards & Compliance
- HS Code
- 9405.49
Cross References
- SAP 1200930504
- Code 84216771
- El-nr 3206999
Product Documentation
Document preview: LEDstrip 24V Neon Mini IP67 3000K lpm (7507401) — Specification sheet
More from ELKO
ELKO

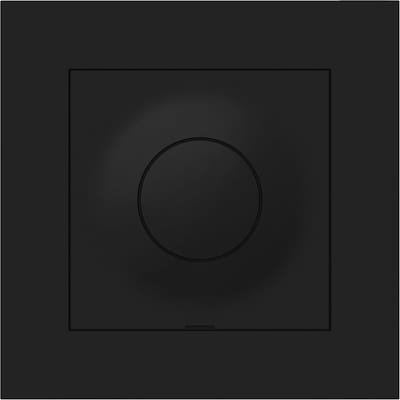

EasyDim Universal Plus Black
EKO07014
ELKO

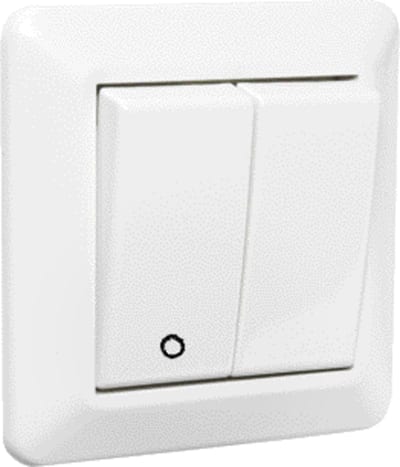

Switch 2+1-P.RECESSED H16/2+1
EKO05120
ELKO
RS16/MOD in 2XUTP C6/1XF-F HUN
EKO05588
ELKO

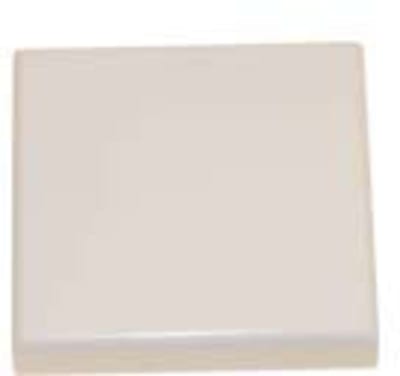

ELKO Rocker Piece for RS16/1+1+1 Switch
EKO09283
ELKO

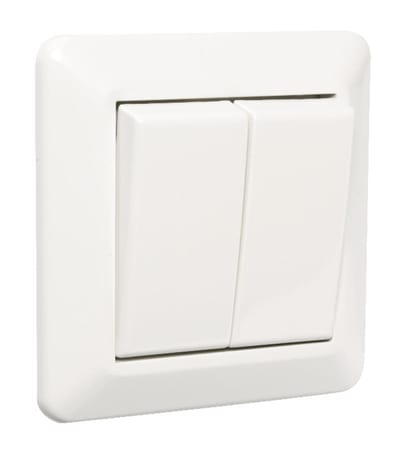

Two-Way Double RECESSED
EKO05124
ELKO

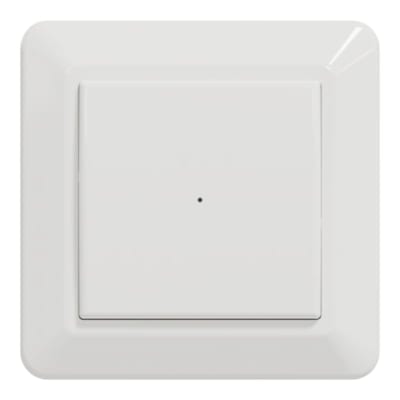

SMARTDIM Pressure Multiwire RS POLAR WHITE
EKO07277
ELKO

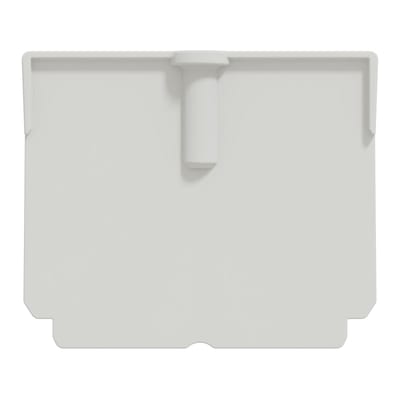

Partition for double box
EKO07445
ELKO

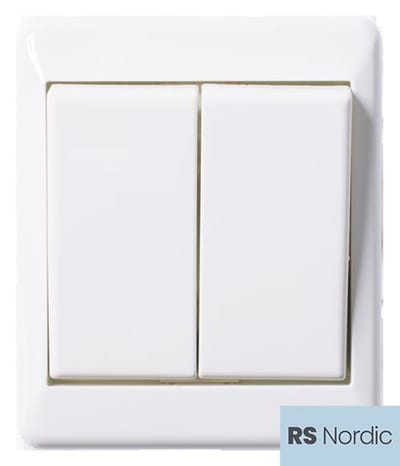

ELKO RS 5 Surface-Mount Switch 2x1-Pole with Push-In Terminals
