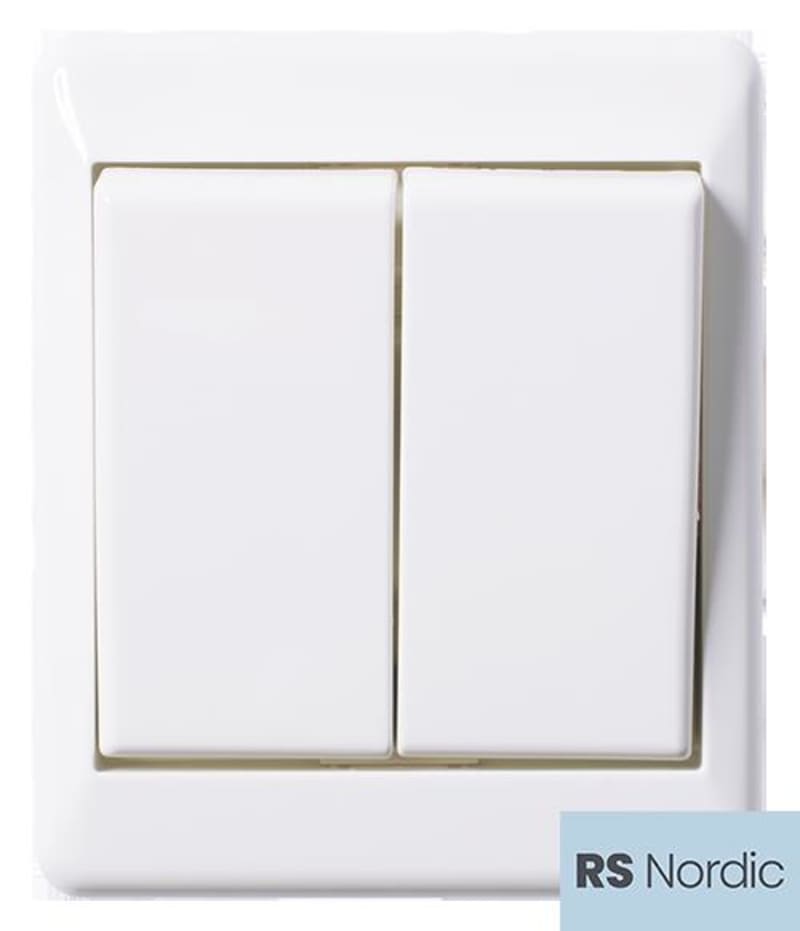

ELKO RS 5 Surface-Mount Switch 2x1-Pole with Push-In Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Surface-mounted 2x1-pole rocker switch from the ELKO RS Nordic range with push-in (quick) terminals for fast installation. Rated 250 V, 16 A and 10 AX for fluorescent lamps; typical use is switching two independent lighting zones on and off from a single wall device. Thermoplastic housing in white (RAL 9003), rated IP21.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07545
- EAN / GTIN
- 7020160754509
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Wiring system
- Switch 2x1-pole
- Method of operation
- Rocker/button
- Assembly arrangement
- Basic element with complete housing
- Number of modules (module system)
- 1
- Push button switch
- No
- Number of rockers
- 2
- Mounting method
- Surface mounted
- Type of fastening
- Screw mounting
- With mounting plate
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- No
- Lighting
- No
- Suitable for degree of protection (IP)
- IP21
- Impact strength
- Not available
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 10 AX
- Monitoring contact
- No
- Connection type
- Push-in clamp
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 71 mm
- Device height
- 84 mm
- Device depth
- 28 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160754509
- SAP 1200514129
- Code 82648868
Product Documentation
