ELKO

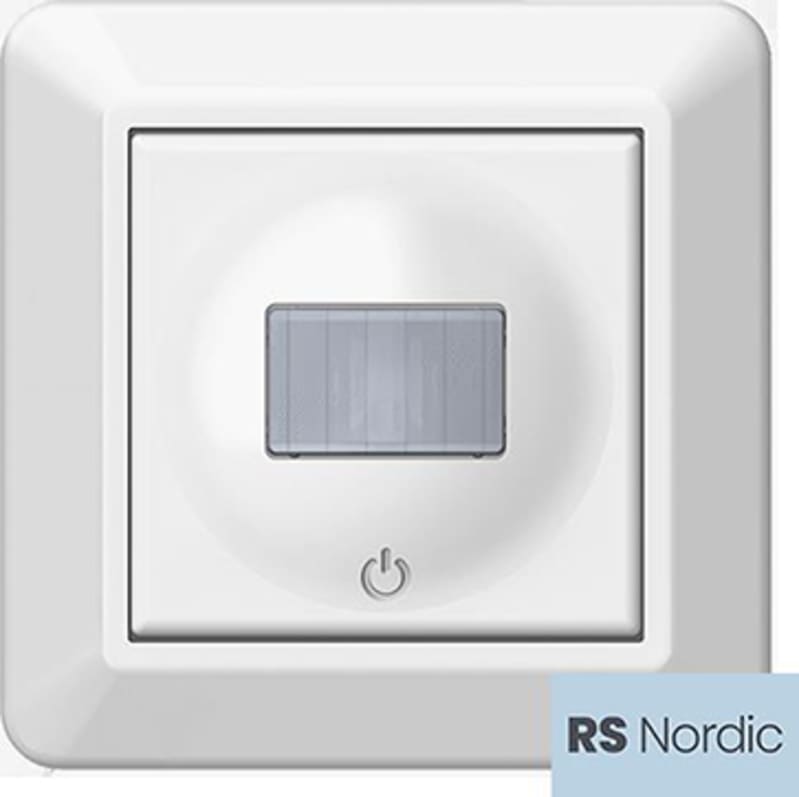

SmartPir 10A RS RH (EKO30170)
Part numberEKO30170EAN / GTIN7020161301702HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
RS Nordic SmartPir with 10 A switch, well suited for storerooms, stairs, hallways or WCs where the light should switch automatically.
Technical Specifications
- Manufacturer part number (MPN)
- EKO30170
- EAN / GTIN
- 7020161301702
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated current
- 10 A
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 84 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 84 mm
- Depth
- 44 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 27 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 86 mm
- Suitable for wall mounting
- Yes
- Built-in width
- 86 mm
- Built-in diameter
- 73 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- Yes
- Material quality
- Thermoplastic
- Max. reach frontally
- 8 m
- Max. reach sideways
- 8 m
- Max. switching power
- 2200 W
- Temperature
- 5–45 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–500 lx
- Suitable for C-load
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020161301702
- SAP 1200558042
- Code 82906176
Product Documentation
Document preview: SmartPir 10A RS RH (EKO30170) — Specification sheet
More from ELKO
ELKO
Optic Deep White Tune
7464984
ELKO
Switch 1+1+1 Pole Push-In Flush RS PURE WHITE
EKO07357
ELKO
PLUS Option Smoked Black 1H
EKO04427
ELKO
PLUS Timer 2T10 Black
EKO04652
ELKO
ELKO Cast-In Mounting Bracket for Installation Boxes
EKO07446
ELKO

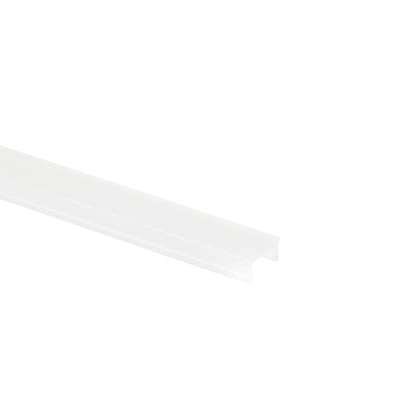

Dekkcover Opal 15mm (7512006)
ELKO

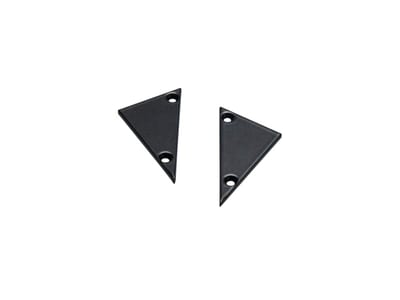

ELKO 7511350 End Piece Wedge Aluminium Black-Lacquered 2 pcs
