ELKO

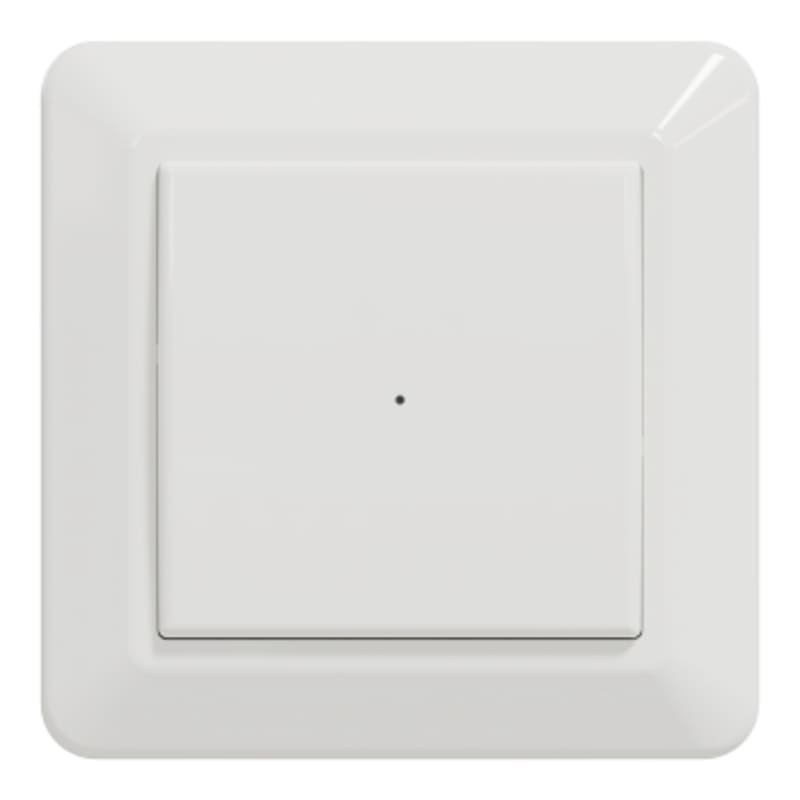

SMARTDIM Pressure Multiwire RS POLAR WHITE
Part numberEKO07277EAN / GTIN7020160727701HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO - Push-button dimmer - RS Polar-white - min 0W with optional neutral, 7W without - max 200W.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07277
- EAN / GTIN
- 7020160727701
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Method of operation
- Push button
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.4 W
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9010
- Serial dimmer
- Yes
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- No
- Impact strength
- IK02
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1–2.5 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 41 mm
- Number of modules (module system)
- 1
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160727701
- SAP 1200619142
- Code 83027118
Product Documentation
Document preview: SMARTDIM Pressure Multiwire RS POLAR WHITE (EKO07277) — Specification sheet
