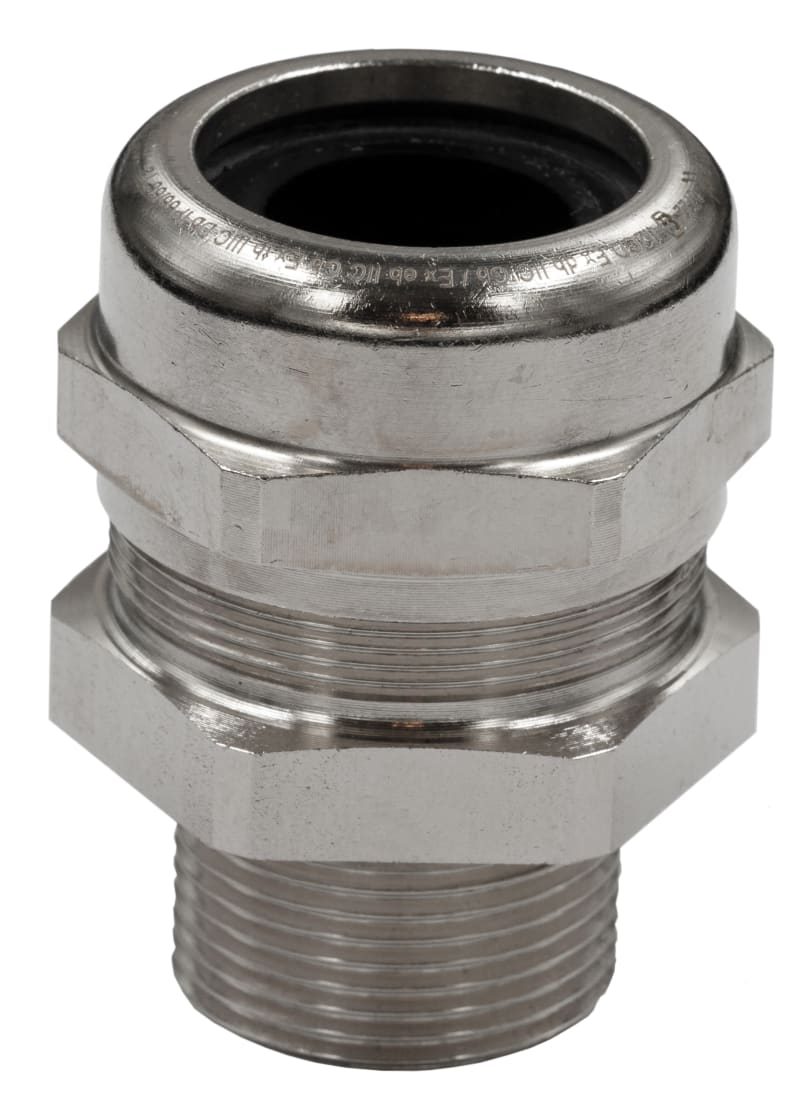

Nipple M40X1,5 Ex-db/eb/tb OCTANS (26-34
Part number1255789EAN / GTIN7070613074098HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255789 Nipple M40x1,5 Ex-db/eb/tb OCTANS (26-34).
Technical Specifications
- Manufacturer part number (MPN)
- 1255789
- EAN / GTIN
- 7070613074098
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- EL number
- 1255789
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 45.5 mm
- Product width
- 46 mm
- Product length / depth
- 46 mm
- Net weight
- 282 g
- Product volume
- 0.096278 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 56
- Suitable for cable diameter (mm)
- 26 to 34
- Nominal thread size metric/PG
- 40
- Wrench width (mm)
- 50
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 18
- Working temperature (°C)
- -40 to 80
- Shock resistant
- Yes
- With strain relief
- Yes
- Snapping in opening
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- Pressure-compensating
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–80 °C
- For armoured cable
- No
- Material sealing
- CR (neoprene)
- Colour
- Nickel
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074098
- SAP 1200754702
- Code 83896743
Product Documentation
Document preview: Nipple M40x1,5 Ex-db/eb/tb OCTANS (26-34 (1255789) — Data Sheet (OEM, Norwegian)
