Elis Elektro

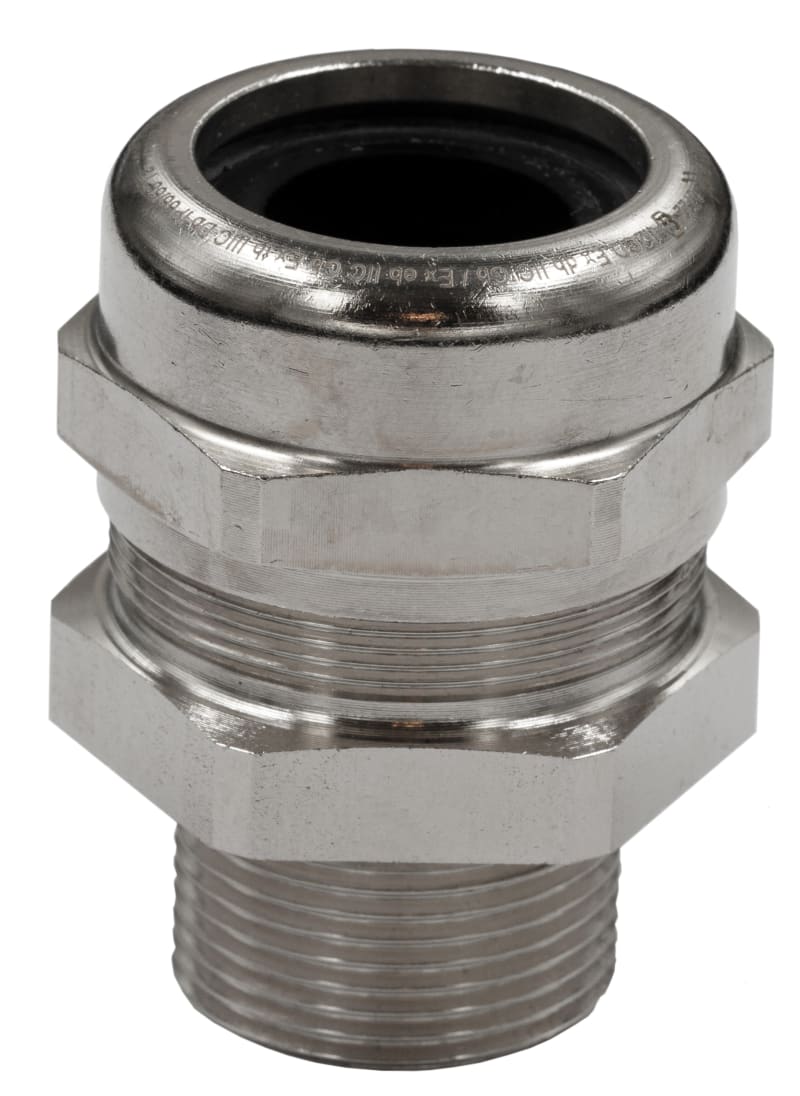

Nipple M25X1,5 Ex-db/eb/tb OCTANS (14-20
Part number1255787EAN / GTIN7070613074104HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255787 Nipple M25x1,5 Ex-db/eb/tb OCTANS (14-20).
Technical Specifications
- Manufacturer part number (MPN)
- 1255787
- EAN / GTIN
- 7070613074104
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- EL number
- 1255787
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 36 mm
- Product width
- 39 mm
- Product length / depth
- 39 mm
- Net weight
- 116 g
- Product volume
- 0.054756 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 39
- Suitable for cable diameter (mm)
- 14 to 20
- Nominal thread size metric/PG
- 25
- Wrench width (mm)
- 35
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 16
- Working temperature (°C)
- -40 to 80
- Shock resistant
- Yes
- With strain relief
- Yes
- Snapping in opening
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- Pressure-compensating
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–80 °C
- For armoured cable
- No
- Material sealing
- CR (neoprene)
- Colour
- Nickel
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074104
- SAP 1200754700
- Code 83896732
Product Documentation
Document preview: Nipple M25x1,5 Ex-db/eb/tb OCTANS (14-20 (1255787) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro

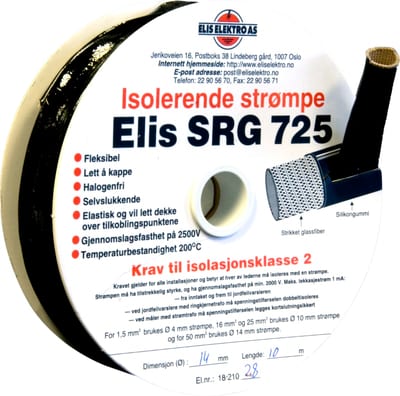

Sleeve 10mm Black 100M SRG725
1821054
Elis Elektro

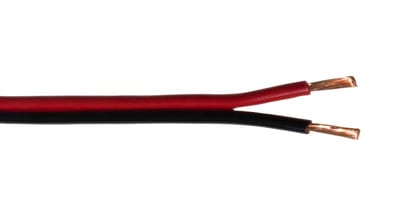

RKUB 2X2,5 mm² Black/Red 100M
1006673
Elis Elektro

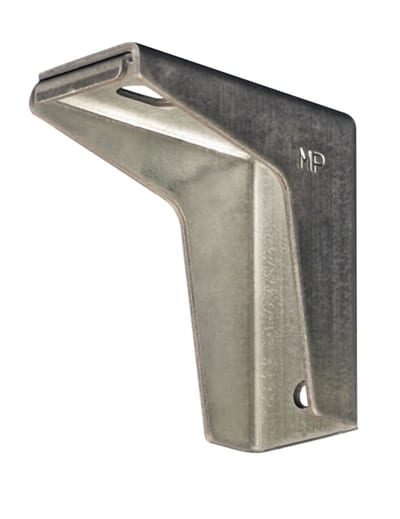

Ceiling Bracket for anchor rail Hot-dip galvanised
MP-230Z
Elis Elektro

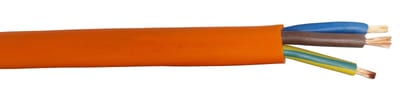

H07 BQ-F SUB4 3G2,5 mm²
1021616
Elis Elektro

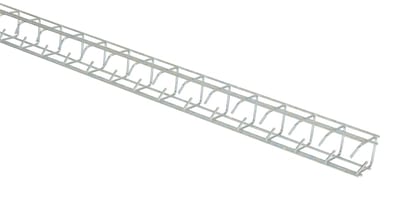

Wire Mesh Tray with lock MP-772SS 50X50MM L=3000
Elis Elektro

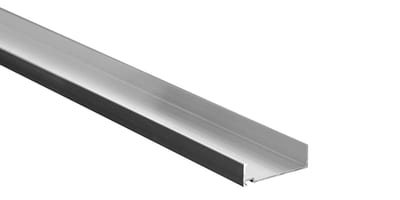

Partition 52X15MM 1M
TDH1
Elis Elektro

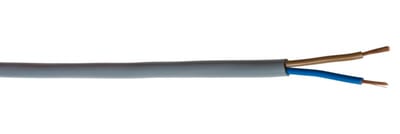

Elis Elektro 1001760 ØPVC-OB 2x0.75 mm² Cable without Earth 500 m
Elis Elektro

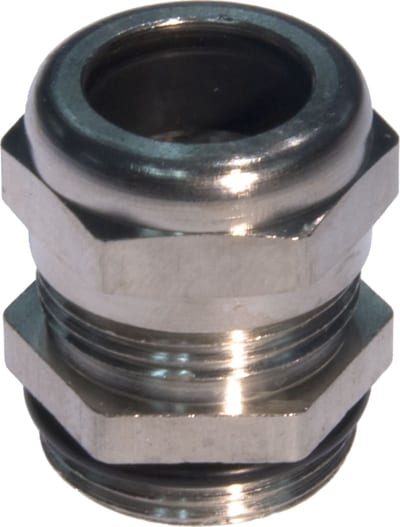

Nipple WADI-TEC M32 15-24
