Elis Elektro

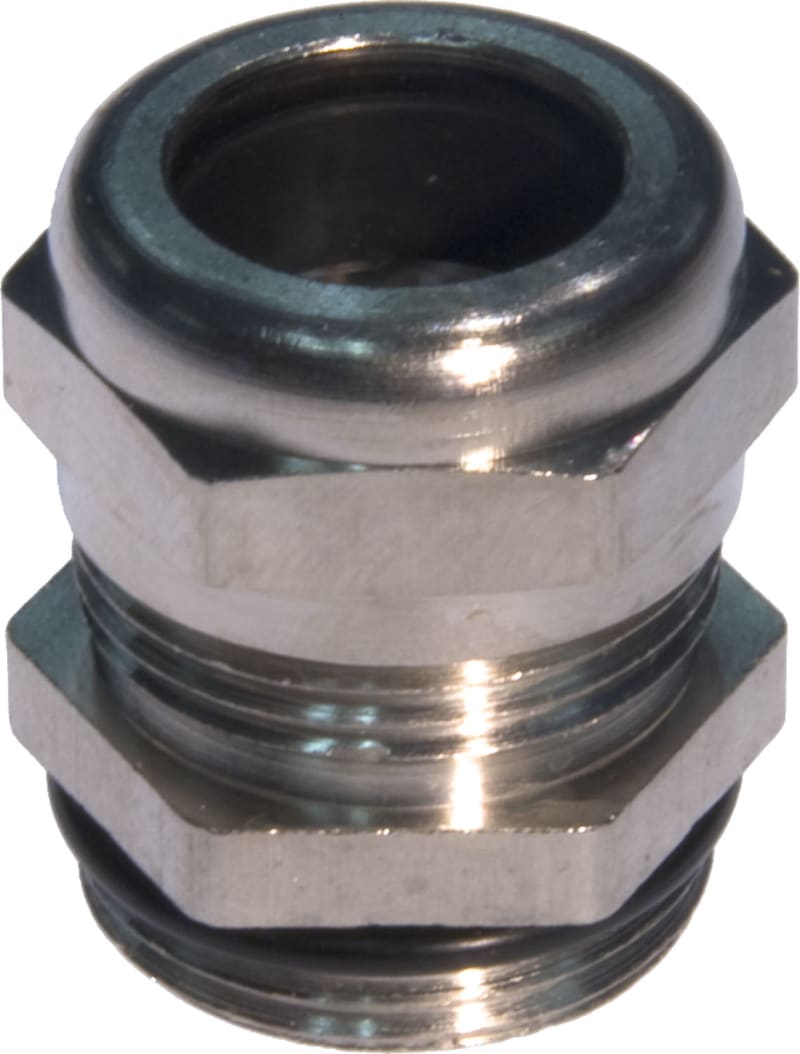

Nipple WADI-TEC M80 55-74
Part number1249297EAN / GTIN7070613064402HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1249297 Nipple WADI-TEC M80 55-74.
Technical Specifications
- Manufacturer part number (MPN)
- 1249297
- EAN / GTIN
- 7070613064402
- Sales unit
- pcs
- Package quantity
- 5 pcs
- EL number
- 1249297
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 104 mm
- Product width
- 100 mm
- Product length / depth
- 100 mm
- Net weight
- 1243 g
- Product volume
- 1.04 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 100
- Suitable for cable diameter (mm)
- 55 to 74
- Nominal thread size metric/PG
- 80
- Wrench width (mm)
- 95
- Pitch thread (mm)
- 2
- Thread length (mm)
- 12
- Working temperature (°C)
- -40 to 100
- Halogen free
- Yes
- With strain relief
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–100 °C
- For Ex-zone gas
- None
- For armoured cable
- No
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613064402
- SAP 1200927325
- Code 84212338
Product Documentation
Document preview: Nipple WADI-TEC M80 55-74 (1249297) — Data Sheet (OEM, Norwegian)
