Elis Elektro
Nipple EX/EMC M25 12-14
Part numberØ=12-14mmEAN / GTIN7070613002718HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

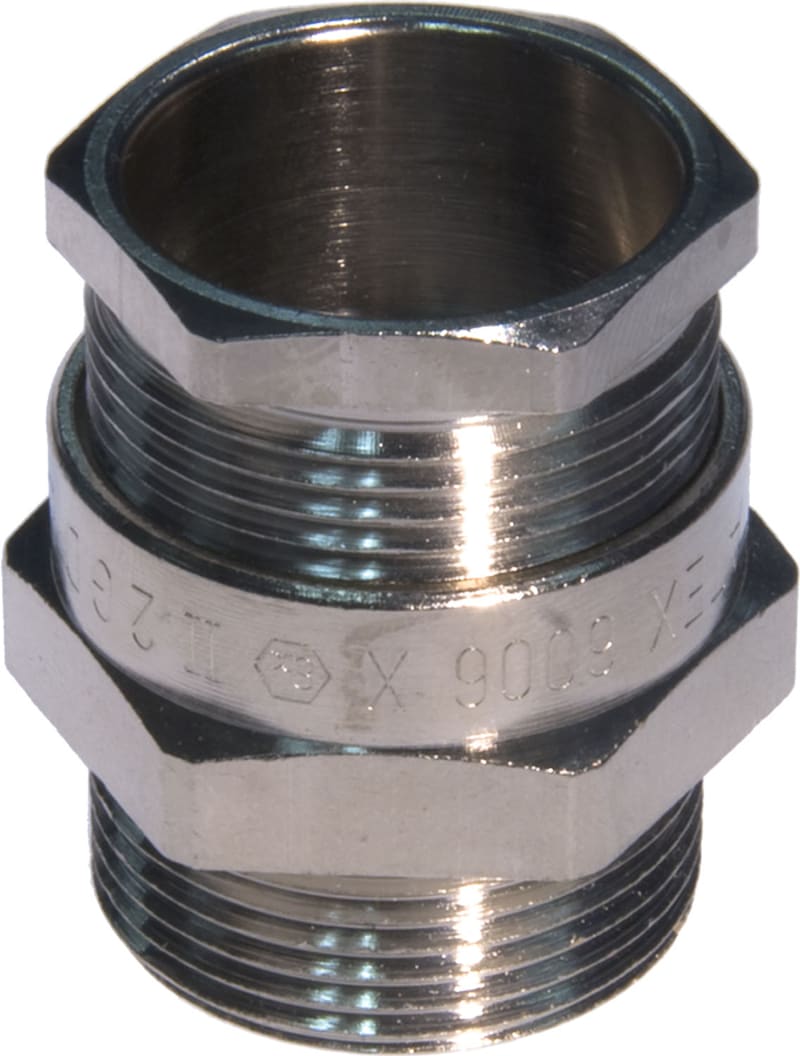

Elis Elektro Ø=12-14mm Nipple EX/EMC M25 12-14.
Technical Specifications
- Manufacturer part number (MPN)
- Ø=12-14mm
- EAN / GTIN
- 7070613002718
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Thread size
- M25
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–9 mm
- Thread type
- Metric
- Nominal thread size metric/PG
- 25
- Pitch thread
- 1.5 mm
- Thread length
- 14 mm
- Wrench width
- 22 mm
- Hexagon angular dimension
- 30 mm
- Suitable for cable diameter
- 12–14 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP66
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Operating temperature
- -20–55 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- CR (neoprene)
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613002718
- SAP 1000000512
- Code 814668
Product Documentation
Document preview: Nipple EX/EMC M25 12-14 (Ø=12-14mm) — Specification sheet
