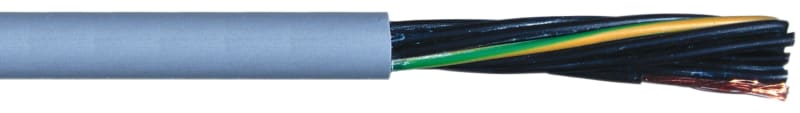

FLEX-JZ-H 12G1,5 mm² Unshielded Halogen-free
Part number1003328EAN / GTIN7070613015114HS code8544.49
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1003328 FLEX-JZ-H 12G1,5 mm² Unshielded Halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 1003328
- EAN / GTIN
- 7070613015114
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1003328
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 280 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 1.5
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 16
- Cable width approximate (mm)
- 13.2
- Cable height approximate (mm)
- 13.2
- Number of cores
- 12
- Weight (kg/km)
- 280
- Min. permitted bending radius, moving application with forced guidance (mm)
- 147
- Min. permitted bending radius, moving application/free movement (mm)
- 147
- Outer diameter approximate (mm)
- 13.2
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 73.5
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Screen
- Yes
- With protective conductor
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Torsion resistant
- No
- Low smoke according to EN IEC 61034-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613015114
- SAP 1200827212
- Code 84015384
Product Documentation
Document preview: FLEX-JZ-H 12G1,5 mm² Uskjerm Halogen-free (1003328) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Cable ladder 400 PZ4 6M
MP-154PZ4
Elis Elektro
Pendant Bracket 200 with handle White MP-743V
1352949
Elis Elektro
Fully Threaded rod M10 Els L=2M
MP-927E
Elis Elektro
Elis Elektro MP-576S Combi Bracket, 500 mm, Suspended, Zinc
Elis Elektro
Nipple SCHL-TEC PG7 2,5-6,5
1248061
Elis Elektro
Corrugated Conduit NW 7,5 50M
1212501
Elis Elektro
Elis Elektro 1002145 OPVC-JZ 12G2.5 mm-squared Numbered Control Cable
Elis Elektro

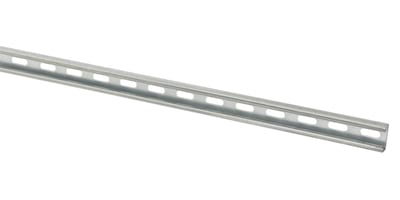

Anchor Rail 41X21 L=3M Hot-dip galvanised
