Elis Elektro
Nipple SCHL-TEC PG7 2,5-6,5
Part number1248061EAN / GTIN7070613002138HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1248061 Nipple SCHL-TEC PG 7 2,5-6,5.
Technical Specifications
- Manufacturer part number (MPN)
- 1248061
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1248061
- EAN / GTIN
- 7070613002138
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 15 mm
- Product width
- 32 mm
- Product length / depth
- 32 mm
- Net weight
- 4 g
- Product volume
- 0.01536 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 15
- Nominal thread size metric/PG
- 7
- Wrench width (mm)
- 15
- RAL-number
- 7001
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 8
- Working temperature (°C)
- -40 to 100
- Halogen free
- Yes
- With strain relief
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- PG
- Suitable for cable diameter
- 2.5–6.5 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Snapping in opening
- No
- Operating temperature
- -40–100 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Colour
- Grey
Standards & Compliance
- HS Code
- 3917.40
Cross References
- 7070613002138
Product Documentation
Document preview: Nipple SCHL-TEC PG7 2,5-6,5 (1248061) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Corrugated Conduit NW 7,5 50M
1212501
Elis Elektro
Elis Elektro 1002145 OPVC-JZ 12G2.5 mm-squared Numbered Control Cable
Elis Elektro
Anchor Rail 41X21 L=3M Hot-dip galvanised
MP-231Z
Elis Elektro

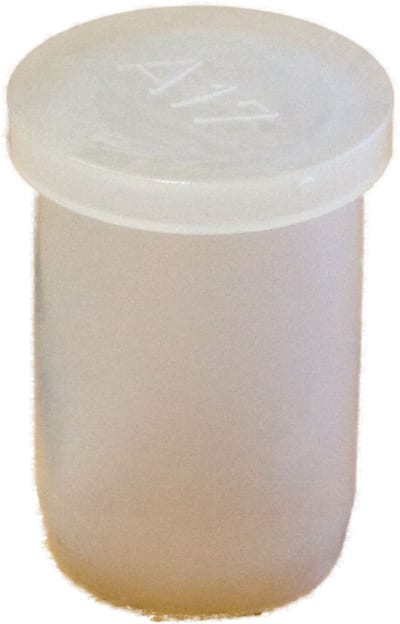

Blanking Plug PG29/M32 Ø:24mm
1252656
Elis Elektro

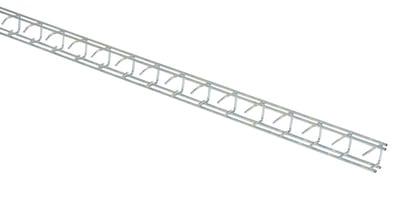

Wire Mesh Tray m/lock MP-771R 25X25MM L=3000M
1352195
Elis Elektro

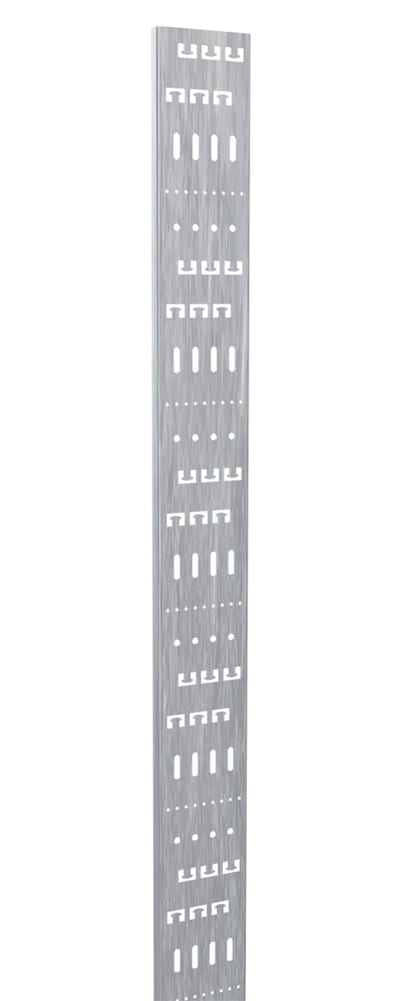

Mounting channel 100mm L=2M MP-823Z4
Elis Elektro

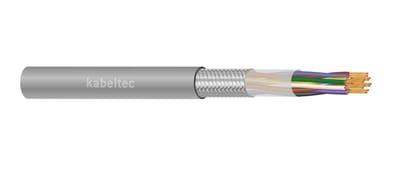

LIYCY-TP 4X2X0,50 mm²
1001717
Elis Elektro

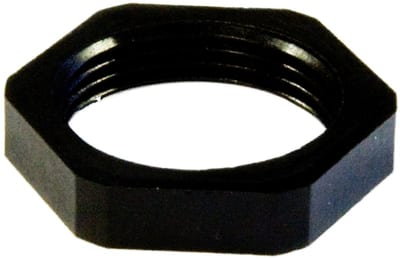

Locknut KP M40 black
