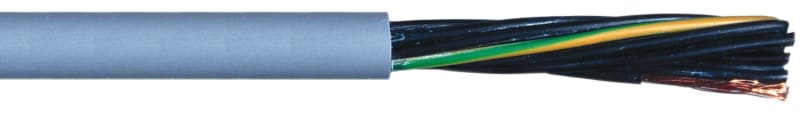

Elis Elektro 1002145 OPVC-JZ 12G2.5 mm-squared Numbered Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1002145 is a flexible OPVC-JZ control cable with 12 cores of 2.5 mm-squared, each numbered for identification, and a protective conductor. Rated 300/500 V, the PVC-jacketed cable has an outer diameter of approximately 14.6 mm and is designed for moving applications with a minimum bending radius of 241.5 mm free-flexed and 64.4 mm stationary. Typical use is wiring of machine tools, conveyors and control-cabinet interconnections across -15 to +80 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- 1002145
- EAN / GTIN
- 7070613061883
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002145
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 510 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 2.5
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 14
- Cable width approximate (mm)
- 14.6
- Cable height approximate (mm)
- 14.6
- Number of cores
- 12
- Weight (kg/km)
- 510
- Min. permitted bending radius, moving application with forced guidance (mm)
- 241.5
- Min. permitted bending radius, moving application/free movement (mm)
- 241.5
- Outer diameter approximate (mm)
- 14.6
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 64.4
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- With protective conductor
- Yes
- Screen
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613061883
- SAP 1200827255
- Code 84015638
Product Documentation
More from Elis Elektro
Elis Elektro
Anchor Rail 41X21 L=3M Hot-dip galvanised
MP-231Z
Elis Elektro
Blanking Plug PG29/M32 Ø:24mm
1252656
Elis Elektro
Wire Mesh Tray m/lock MP-771R 25X25MM L=3000M
1352195
Elis Elektro
Mounting channel 100mm L=2M MP-823Z4
Elis Elektro
LIYCY-TP 4X2X0,50 mm²
1001717
Elis Elektro
Locknut KP M40 black
1251974
Elis Elektro

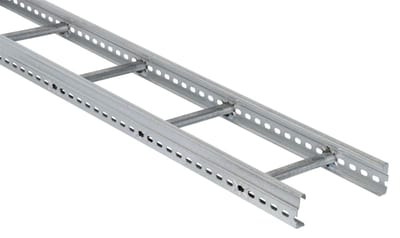

Cable ladder 300 Z4 6M
MP-153Z4
Elis Elektro

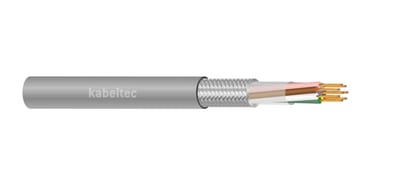

LIYCY 4X1,5 mm² (1001659)
