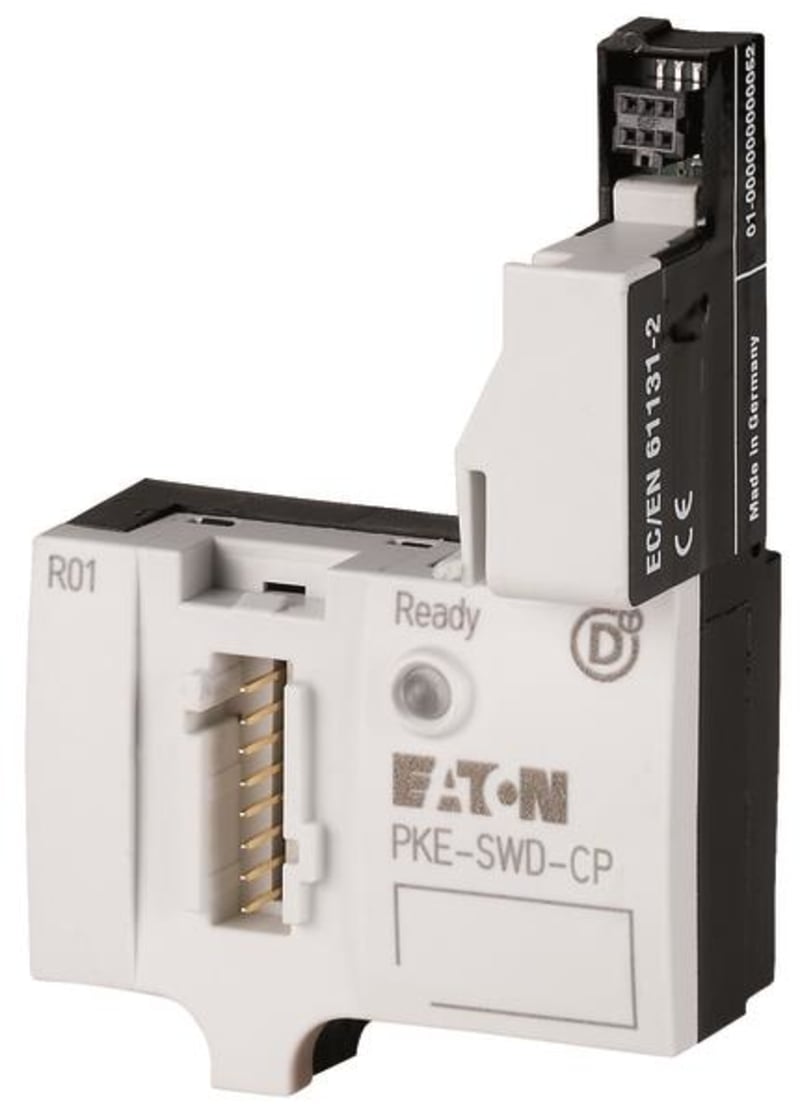

Funksjonelement, SWD, PKE
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Funksjonelement, SWD, PKE (part number PKE-SWD-CP) is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 172735; Depth: 75 mm; Height: 65 mm; Width: 67.5 mm; Weight: 0.028 kg.
Technical Specifications
- Manufacturer part number (MPN)
- PKE-SWD-CP
- EAN / GTIN
- 4015081692811
- Sales unit
- pcs
- Eaton catalogue number
- 172735
- Depth
- 75 mm
- Height
- 65 mm
- Width
- 67.5 mm
- Weight
- 0.028 kg
- Certifications
- IEC/EN 61131-2
- Constant acceleration
- 1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
- Constant amplitude
- 3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
- Drop and topple
- 50 mm Drop height, Drop to IEC/EN 60068-2-31
- Height of fall (IEC/EN 60068-2-32) - max
- 0.3 m
- Mounting position
- As PKE32/65
- Shock resistance
- 15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
- Ambient operating temperature - max
- 60 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - min
- -30 °C
- Environmental conditions
- Condensation: prevent with appropriate measures
- Relative humidity
- 5 - 95 % (non-condensing, IEC/EN 60068-2-30)
- Addressing
- Address set automatically
- Connection to SmartWire-DT
- Yes
- Connection type
- SWD: Plug, 8-pole; External device plug SWD4-8SF2-5, SmartWire-DT
- LED indicator
- Status indication of SmartWire-DT network: Green LED
- Station
- SmartWire-DT slave, SmartWire-DT network
- Air discharge
- 8 kV, according to IEC 61131-2, level 3, ESD
- Burst impulse
- 1 kV, SmartWire-DT cable, Signal cable, according to IEC/EN 61131-2, Level 3; 1 kV, CAN/DP-bus cable, SmartWire-DT cables, according to IEC/EN 61131-2, Level 3
- Contact discharge
- 4 kV, according to IEC/EN 61131-2, Level 2, ESD
- Electromagnetic fields
- 10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
- Radiated RFI
- 10 V (IEC/EN 61131-2:2008, Level 3)
- Radio interference class
- Class A (EN 55011)
- Accessory/spare part type
- Communication and measuring function
- Current consumption
- 35 mA, SmartWire-DT network, 15-V-SWD supply
- Degree of protection
- IP20
- Overvoltage category
- II
- Pollution degree
- 2
- Product category
- Accessories SmartWire-DT slave
- Type
- Function element
- Type of accessory/spare part
- Communication and measuring function
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081692811
- SAP 1200607319
- Code 82994737
