Eaton
Wireless Second Switch
Part numberCPAD-00/215EAN / GTIN9010238033542HS code8536.90
Electrical Components
Home Automation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

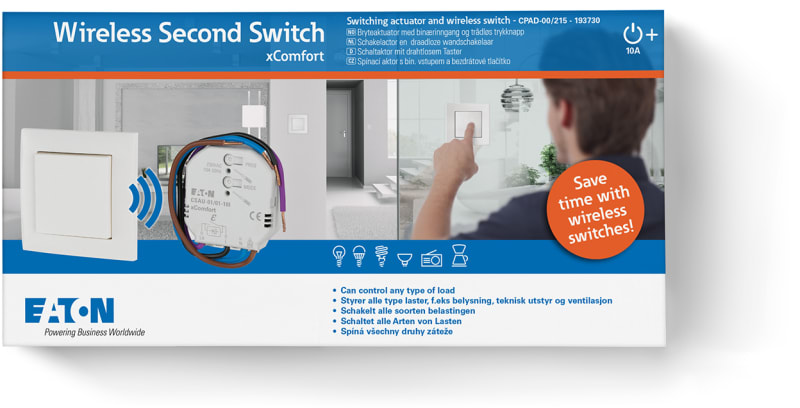

Wireless switch, supplied pre-programmed with a single xComfort push-button and a 10 A switching actuator with binary input that can be connected.
Technical Specifications
- Manufacturer part number (MPN)
- CPAD-00/215
- EAN / GTIN
- 9010238033542
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Eaton catalogue number
- 193730
- Depth
- 223 mm
- Height
- 31 mm
- Width
- 111 mm
- Weight
- 0.222 kg
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Features
- Local operation/hand operation; Radio frequent bidirectional
- Bus system operating type
- Other; Radio frequent
- Actuation function
- Switching
- Bus system product type
- Package: actuator, pushbutton
- Built-in installation box depth - min
- 18 mm
- Number of gangs (rocker)
- 1
- Number of inputs (binary)
- 1
- Number of switching contacts - max
- 1
- Rated operating voltage (Ue) - max
- 253 V
- Rated operating voltage (Ue) - min
- 196 V
- Amperage rating
- 10 A
- Fitted with
- LED indication; Bus connection
- Switching current - max
- 10 A
- Switching power - max
- 2300 W
- Width in number of modular spacings
- 3
- Output power
- 2300 W
- Power supply
- Mains; Battery
- Color
- Pure white
- Degree of protection
- IP20
- Functions
- Modular expandability
- Mounting method
- Flush mounting; Flush mounted (plaster); Surface mounting
- Suitable for
- C-load
- Power consumption
- 0.23 W
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238033542
- SAP 1200099016
- Code 81953127
Product Documentation
Document preview: Wireless Second Switch (CPAD-00/215) — Specification Data Sheet (OEM)
