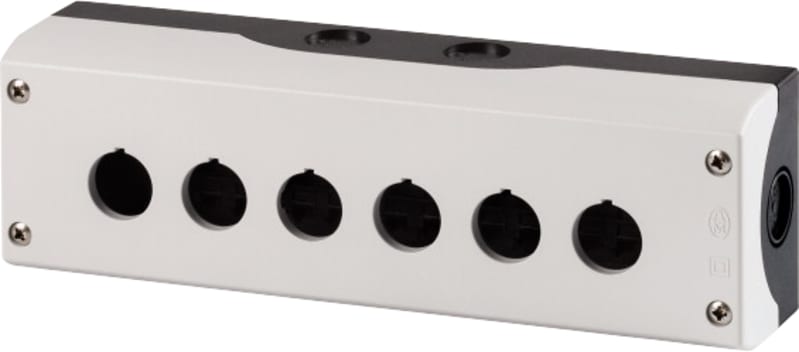

BOX 6 HOLE (M22-I6)

Eaton M22-I6 Push-Button Stations for 1-6 hole.

Manufacturer part number (MPN)

M22-I6

EAN / GTIN

4015082165406

Sales unit

pcs

Eaton catalogue number

216540

Depth

80 mm

Height

56 mm

Width

252 mm

Weight

0.362 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; UL 508; CSA Std. C22.2 No. 14-05; IEC 60947-5; EN 60947-5; VDE; CSA File No.: 012528; CSA Class No.: 3211-03; UL; UL Category Control No.: NKCR; IEC/EN 60947-5; CE; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CSA; UL File No.: E29184

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Gray

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Color

Gray

Fitted with

High-grade steel screws

Knockouts

2 x M20/25 (cable entry knockout at the side, 1 x each side); 2 x M20 (cable entry knockouts at the top); 2 x M20 (cable entry knockouts at the rear)

Number of command positions

6

Number of locations

6

RAL-number

7035

Accessories

High-grade steel screws

Degree of protection

IP66; NEMA 3R

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10
