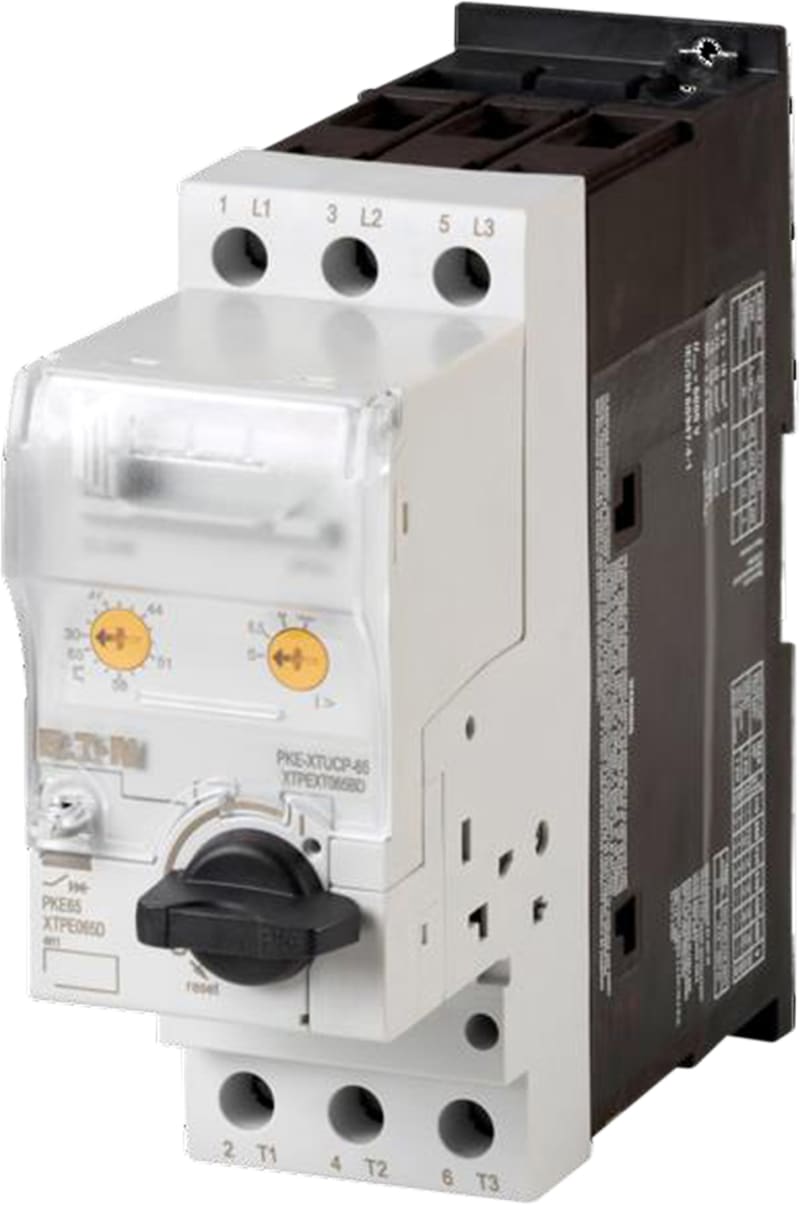

Switch, systemprotection (PKE65/XTUCP-65)

Eaton Switch, systemprotection (PKE65/XTUCP-65) is listed under Electrical Components / Moulded Case Circuit Breakers. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 168974; Depth: 187 mm; Height: 162 mm; Width: 55 mm.

Manufacturer part number (MPN)

PKE65/XTUCP-65

EAN / GTIN

4015081654659

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

168974

Depth

187 mm

Height

162 mm

Width

55 mm

Weight

1.469 kg

Certifications

IEC/EN 60947; VDE 0660

Catalog Notes

This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection

Screw terminals

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

21.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

7.2 W

Rated operational current for specified heat dissipation (In)

65 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

65 A

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

65 A

Actuator type

Turn button

Features

Complete device with protection unit

Fitted with

Standard knob

Functions

Line and cable protection; Overload release; System protection

Number of poles

Three-pole

Cut-out periods - min

≤ 500 ms, main conducting paths, AC-4 cycle operation

Degree of protection

IP20; Terminals: IP00

Lifespan, electrical

50,000 operations (at 400V, AC-3)

Lifespan, mechanical

30,000 Operations (Main conducting paths)

Mounting Method

DIN rail (top hat rail) mounting optional

Operating frequency

60 Operations/h

Overload release current setting - max

65 A

Overload release current setting - min

30 A

Overvoltage category

III

Pollution degree

3

Product category

Circuit-breaker PKE

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Resistance per pole

1.6 mΩ

Suitable for

DIN rail (top hat rail) mounting

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Short-circuit release

Trip block adjustable 5 - 8 x Ir; Basic device fixed 15.5 x Iu, Trip Blocks; ± 20% tolerance, Trip blocks; Delayed approx. 60 ms, Trip blocks

Stripping length (main cable)

14 mm

Terminal capacity (flexible with ferrule)

2 x (0.75 - 25) mm², ferrule to DIN 46228; 1 x (0.75 - 35) mm², ferrule to DIN 46228

Terminal capacity (solid)

2 x (0.75 - 16) mm²; 1 x (0.75 - 16) mm²

Tightening torque

1 Nm, Screw terminals, Control circuit cables; 3.3 Nm, Screw terminals, Main cable

HS Code

8536.90
