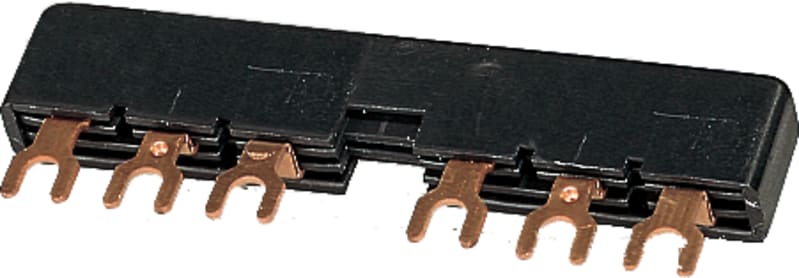

Busbar 2 SWITCHES+AUXILIARY CONTACT

Eaton B3.1/2-PKZ0 Busbar for PKZ0 with auxiliary contact.

Manufacturer part number (MPN)

B3.1/2-PKZ0

EAN / GTIN

4015080449454

Sales unit

pcs

Package quantity

10 pcs

Eaton catalogue number

044945

Depth

99 mm

Height

34 mm

Width

12 mm

Weight

0.038 kg

Certifications

UL 508; UL File No.: E36332; IEC/EN 60947-4-1; CSA-C22.2 No. 14; CSA; CSA Class No.: 3211-06; CSA File No.: 98494; UL; UL Category Control No.: NLRV; CE

Catalog Notes

For parallel power feed to several motor-protective circuit-breakers on terminals 1, 3, 5 2 circuit breaker with auxiliary contact or trip indicator built onto the right side can be extended by rotating installation protective against direct contact

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Rated operational current for specified heat dissipation (In)

63 A

Equipment heat dissipation, current-dependent Pvid

3.3 W

Heat dissipation per pole, current-dependent Pvid

1.1 W

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

63 A

Color

Black

Features

Insulated

Functions

Can be extended by rotating installation

Number of poles

Three-pole

Number of phases

3

Electric connection type

Fork

Mounting width

45 + 9 mm

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

2 Circuit-breakers

Used with

PKZ0; PKE12; PKE32

Colour

Black

Insulated

Yes

Rated permanent current Iu

63 A

Length

99 mm

Width in number of modular spacings

5.5

Rated surge voltage

6 kV

Type of electric connection

Fork

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

No

Suitable for number of devices

2

Max. rated operation voltage Ue

690 V

Module width

54 mm

Can be cut to size

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015080449454
• SAP 1000072954
• Code 8790599
