Eaton
Wireless Ventilation (CPAD-00/216)
Part numberCPAD-00/216EAN / GTIN9010238033559HS code8526.92
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

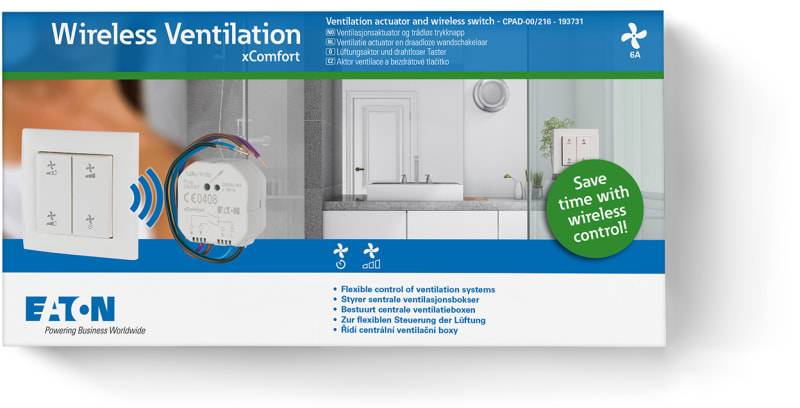

Eaton CPAD-00/216 Wireless Ventilation starter kit comes pre-programmed with double push-button and actuator for speed controllerulering of ventilation.
Technical Specifications
- Manufacturer part number (MPN)
- CPAD-00/216
- EAN / GTIN
- 9010238033559
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 193731
- Depth
- 223 mm
- Height
- 31 mm
- Width
- 111 mm
- Weight
- 0.251 kg
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Features
- Radio frequent bidirectional
- Bus system operating type
- Other; Radio frequent
- Actuation function
- Ventilation
- Bus system product type
- Package: actuator, pushbutton
- Built-in installation box depth - min
- 18 mm
- Number of gangs (rocker)
- 2
- Number of inputs (binary)
- 0
- Number of switching contacts - max
- 2
- Rated operating voltage (Ue) - max
- 230 V
- Rated operating voltage (Ue) - min
- 230 V
- Amperage rating
- 6 A
- Fitted with
- LED indication; Bus connection
- Switching current - max
- 10 A
- Switching power - max
- 1380 W
- Width in number of modular spacings
- 3
- Output power
- 1380 W
- Power supply
- Mains; Battery
- Color
- Pure white
- Degree of protection
- IP20
- Functions
- Modular expandability
- Mounting method
- Flush mounted (plaster); Flush mounting; Surface mounting
- Power consumption
- 0.6 W
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- Yes
- Local operation/hand operation
- No
- With LED indication
- Yes
- Max. switching power
- 1380 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 2
- Max. switching current
- 10 A
- Rated current
- 6 A
- Rated operating voltage
- 230 V
- Different phases connectable
- No
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 18 mm
- Modular expandability
- Yes
- Country of origin
- Czechia
