Eaton

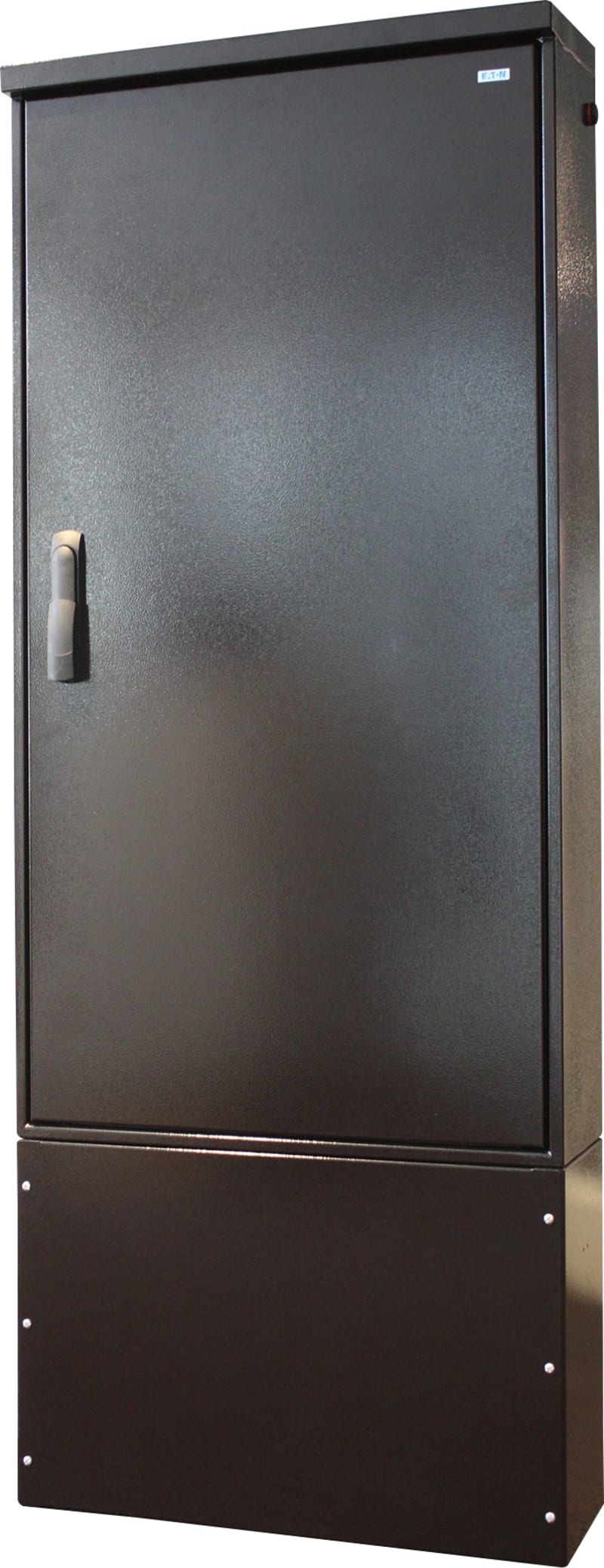

Connection cabinet, extended B600 TN, dark
Part number195379EAN / GTIN9010238092518HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 195379 MDB-BI-12060/TKS-TWIN/400V/RAL8022.
Technical Specifications
- Manufacturer part number (MPN)
- 195379
- EAN / GTIN
- 9010238092518
- Sales unit
- pcs
- Eaton catalogue number
- 195379
- Depth
- 265 mm
- Height
- 1600 mm
- Width
- 615 mm
- Weight
- 48 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 61439-3
- Special features
- Pre-wired cabinet Supplied with fuse switch disconnector, Insulator, Surge protection device with cable duct
- Type
- TKS Norway Extended
- Fitted with
- Mounting plate
- Degree of protection
- IP55; IK10
- Number of fields
- 1
- Number of meter cabinets
- 2
- Number of TSG-panels
- 0
- Application
- Basic device Outdoor
- RAL-number
- 8022
- Cover/door type
- Door with 3-point-locking system and rotary-handle
- Voltage rating
- 400 V AC
- Built-in depth
- 220 mm
- Built-in height
- 1810 mm
- Built-in width
- 615 mm
- Number of distributor rows
- 2
- Color
- Black-brown; Other
- Material
- Steel plate; Aluminum, powder-coated; Other
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 2
- Frequency rating of contacts
- 50 Hz
- Lower connection space
- With clamps
- Model
- 1-story
- Module rack type
- DIN rail
- Number of module space units per row
- 24
- Protection class
- I (earthed)
- Protective shrouding material
- Metal
- Functions
- Meter Cabinet
- Ambient operating temperature – max
- 40 °C
- Ambient operating temperature – min
- -40 °C
- Cable entry
- Cable plugs and grommets at bottom of enclosure
- Number of switching device panels
- 0
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238092518
- SAP 1200218342
- Code 82141604
Product Documentation
Document preview: Connection cabinet, extended B600 TN, dark (195379) — Specification Data Sheet (OEM)
