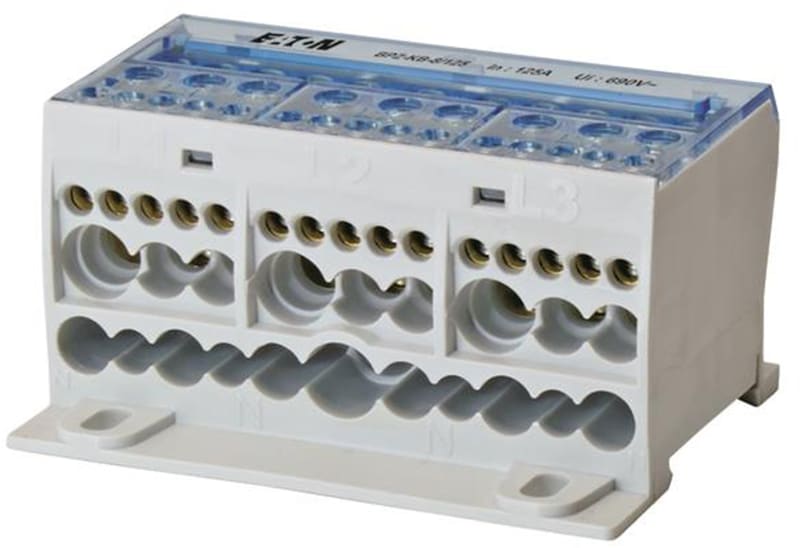

Terminal 4 poles 125A (BPZ-KB-8/125)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal 4 poles 125A (BPZ-KB-8/125) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 289968; Depth: 49 mm; Height: 74.5 mm; Width: 98 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-8/125
- EAN / GTIN
- 4015082899684
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 289968
- Depth
- 49 mm
- Height
- 74.5 mm
- Width
- 98 mm
- Weight
- 0.32 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0 (PA66); V-2 (PC)
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Used with
- Four-pole terminal blocks
- Amperage rating
- 125 A
- Number of poles
- Four-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Cu (IEC)
- 125 A
- Rated peak withstand current
- 24 kA
- Rated short-time withstand current (Icw)
- 4.2 kA
- Voltage rating at AC Cu (IEC) - max
- 690 VAC
- Voltage rating at DC Cu (IEC) - max
- 690 VDC
- Clamp material
- Plain; Brass
- Conductor cross section (solid, solid-strand) - max
- 35 mm²
- Conductor cross section (solid, solid-strand) - min
- 1.5 mm²
- Cover/door color
- Blue (Housing body)
- Housing color
- Light gray (RAL 7035)
- Housing material
- PC; PA66
- Mounting method
- Surface mounting; Flush mounting; Floor standing distribution board
- Mounting position
- Universal
- Number of clamp positions per pole
- 18
- Number of clamping units per pole
- 9
- Degree of protection
- IP20
- Torque rating
- 1.5 Nm (incoming). 0.8 Nm / 1.5 Nm (outgoing)
- Conductor cross section solid (solid, stranded)
- 1.5–35 mm²
- Max. rated current
- 125 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082899684
- SAP 1200518591
- Code 82663346
Product Documentation
More from Eaton
Eaton
Eaton PLSM-OV63/2 Miniature Circuit Breaker — 2P, OV, 63 A, 10 kA
Eaton
Uninterruptible UPS. 6000VA/ 5400W
9SX6KI
Eaton
Eaton NZMN1-4-A63 Molded-Case Circuit Breaker 4-Pole 63A 50KA
Eaton
Siren and flashing light (640025FULL-0061X)
Eaton
Uninterruptible UPS. 2000VA/1800W
9SX2000I
Eaton
Motor Protection Circuit Breaker 55-63A
PKZM4-63
Eaton
Cable gland IP66 (KT4)
Eaton
Eaton PLSM-OV40/3 Miniature Circuit Breaker — 3P, OV, 40 A, 10 kA
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BPZ-KB-8/125?
- BPZ-KB-8/125 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BPZ-KB-8/125.
- What is the HS code for BPZ-KB-8/125?
- The customs tariff (HS) code for BPZ-KB-8/125 is 8536.90.
- Who manufactures BPZ-KB-8/125?
- BPZ-KB-8/125 is a Eaton product in the Electrical Components range.
- Is a datasheet available for BPZ-KB-8/125?
- Yes — the BPZ-KB-8/125 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BPZ-KB-8/125?
- The minimum order quantity is 1.
- Is BPZ-KB-8/125 available?
- Yes — BPZ-KB-8/125 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
