Eaton
RCT, Black with frame
Part numberCPAD-00/199EAN / GTIN9010238089457HS code8536.50
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

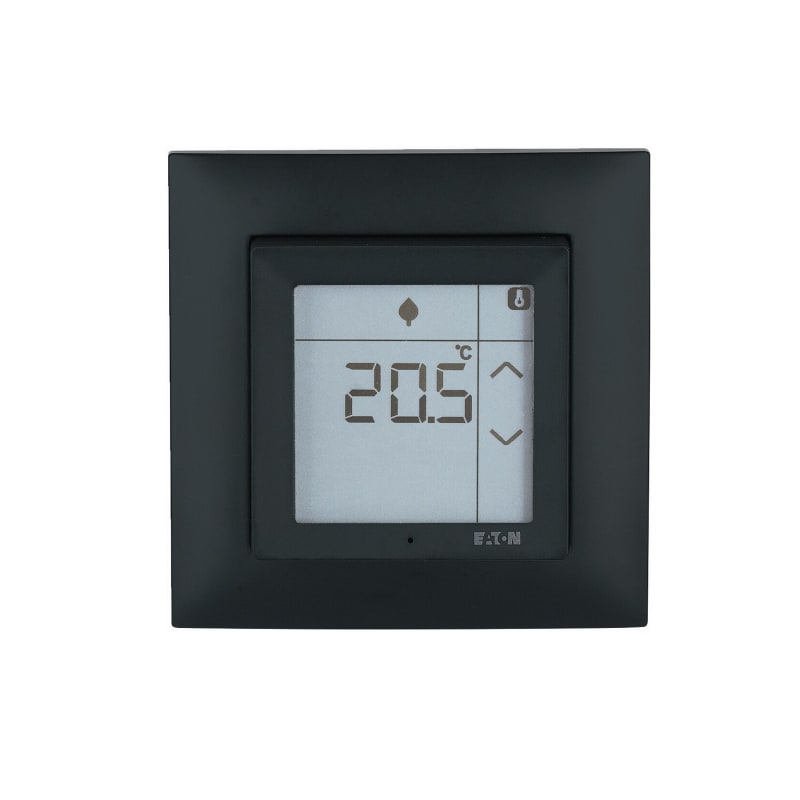

Eaton CPAD-00/199 Temperature and Air sensor with touch display. Black frame with frame.
Technical Specifications
- Manufacturer part number (MPN)
- CPAD-00/199
- EAN / GTIN
- 9010238089457
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 195247
- Depth
- 85 mm
- Height
- 23 mm
- Width
- 85 mm
- Weight
- 0.07 kg
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Features
- Radio frequent bidirectional
- Bus system operating type
- xComfort; Radio frequent
- Fitted with
- Display; Local operation; External sensor
- Assembly arrangement
- Basic element with complete housing
- Bus system product type
- Sensor, Controller
- Number of inputs (binary)
- 0
- RAL-number (Akin)
- 9005
- Standby power consumption (solstandby)
- 0.05 W
- Surface finishing
- Matt
- Power supply
- Battery
- Surface protection
- Untreated
- Class (temperature control)
- IV
- Material quality
- Thermoplastic
- Sensor type
- Temperature; Humidity
- Color
- Black; Jet black
- Degree of protection
- IP20
- Functions
- Parallel-service possible; Manual set point setting
- Material
- Plastic
- Mounting method
- Surface mounted (plaster); Surface mounting
- Colour
- Black
- With display
- Yes
- Bus system KNX
- No
- Bus system radio frequency
- Yes
- Bus system Powernet
- No
- With bus connection
- Yes
- Other bus systems
- xComfort
- Bus system LON
- No
- With anti-theft/dismantling protection
- No
- Manual set point setting
- Yes
- Parallel-service possible
- Yes
- Presence button
- No
- With LED indication
- No
- Transparent
- No
- With local operation
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- Yes
- Class of the temperature control
- IV
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- External sensor
- Yes
- Country of origin
- Czechia
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 9010238089457
- SAP 1200126829
- Code 81988082
Product Documentation
Document preview: RCT, Black with frame (CPAD-00/199) — Specification Data Sheet (OEM)
