Eaton

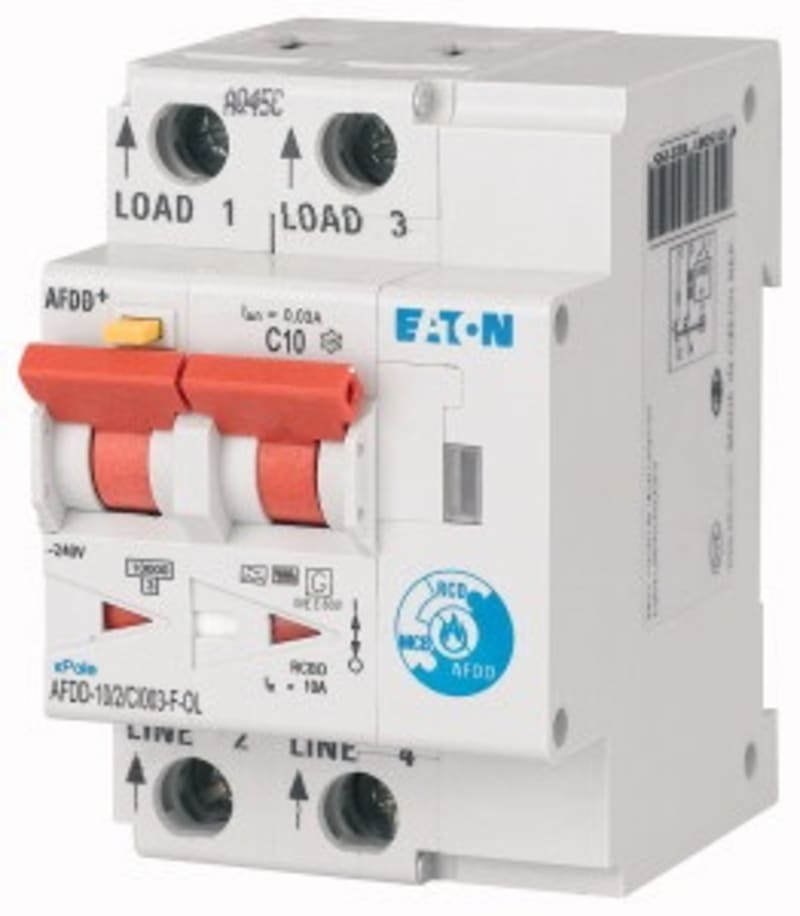

AFDD-20/2/C/003-F-OL (MB-300182)
Part numberMB-300182EAN / GTIN9010238802230HS code8536.20
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton MB-300182 AFDD-20/2/C/003-F-OL.
Technical Specifications
- Manufacturer part number (MPN)
- MB-300182
- EAN / GTIN
- 9010238802230
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Number of poles
- 2
- Rated voltage
- 230 V
- Rated current
- 20 A
- Rated fault current
- 0.03 A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 3
- Built-in depth
- 67 mm
- Control voltage type auxiliary equipment
- AC/DC
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Voltage type
- AC
- Rated insulation voltage Ui
- 440 V
- Surge current capacity
- 3 kA
- Power loss
- 8.9 W
- Number of protected poles
- 2
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- With interlocking device
- No
- Ambient temperature during operating
- -25–40 °C
- Anti-nuisance tripping version
- No
- Rated impulse withstand voltage Uimp
- 4 kV
- Disconnection characteristic
- Short-time delayed
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 9010238802230
- SAP 1200625366
- Code 83032663
Product Documentation
Document preview: AFDD-20/2/C/003-F-OL (MB-300182) — Specification sheet
