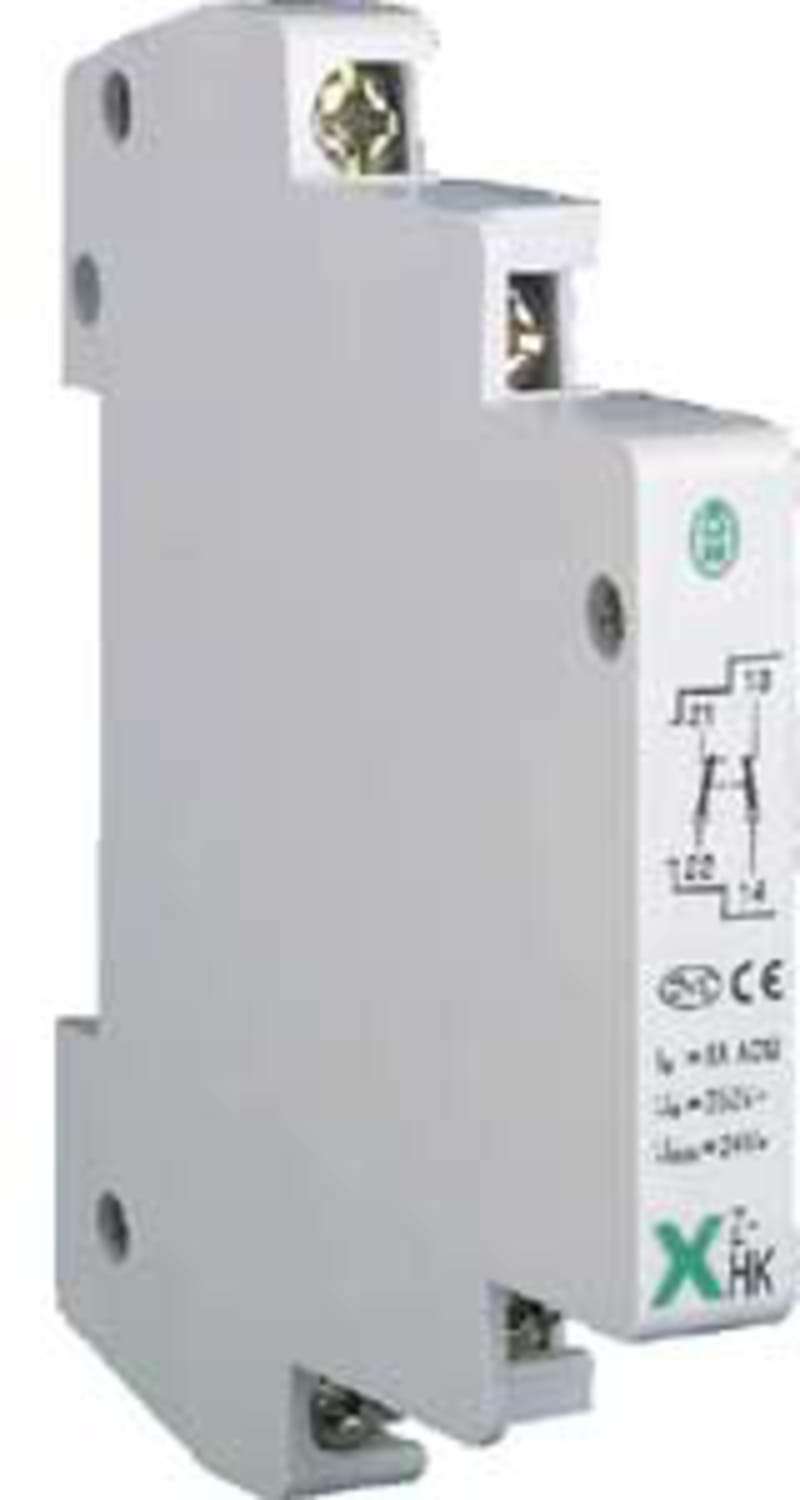

Auxiliary contact HK

Eaton Z-HK Auxiliary Contact akt Only F. Jordfeilbr.

Manufacturer part number (MPN)

Z-HK

EAN / GTIN

4015082484323

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248432

Depth

80 mm

Height

65.5 mm

Width

8.8 mm

Weight

0.04 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Used with

Auxiliary contacts; Accessory for residual current circuit breaker; Accessory

Accessory/spare part type

Auxiliary contacts

Mounting method

For fitting on left to: FI

Additional equipment required

Auxiliary switch

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Voltage type

AC

Functions

Auxiliary switch

Device fitting

Earth leakage switch

Type

Accessory Accessory for residual current circuit breaker

Application

Switchgear for industrial and advanced commercial applications

Rated operational voltage (Ue) - max

230 V

Rated switch current

3 A

Suitable for current of main contact unit - max

8 A

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Auxiliary switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

8 A

Country of origin

Serbia

HS Code

8536.50

• EAN 4015082484323
• SAP 1000075813
• Code 8749161
