RCT Complete WITH Frame
Pricing
Request a quote
We reply within 24 hours
Product Description

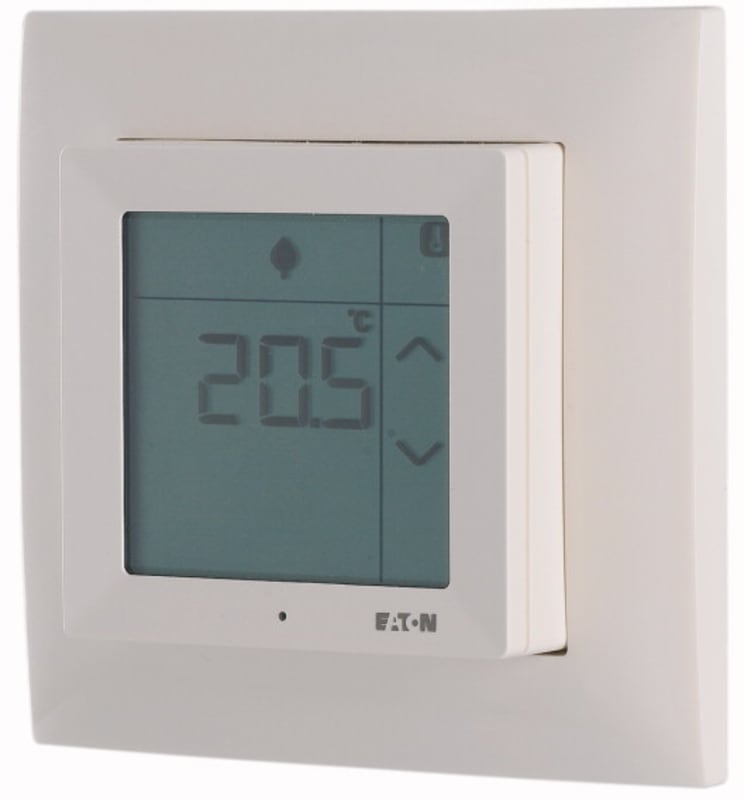

Eaton CPAD-00/198 CPAD-00/198,, wireless thermostat/transmitter for temperature and humidity for xComfort the system, complete with frame in clean white.
Technical Specifications
- Manufacturer part number (MPN)
- CPAD-00/198
- EAN / GTIN
- 4015081853960
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 187712
- Depth
- 85 mm
- Height
- 23 mm
- Width
- 85 mm
- Weight
- 0.07 kg
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Application
- Heating
- Features
- Radio frequent bidirectional
- Bus system operating type
- Radio frequent; xComfort
- Fitted with
- Local operation; External sensor; Display
- Assembly arrangement
- Basic element with complete housing
- Bus system product type
- Sensor, Controller
- Number of inputs (binary)
- 0
- RAL-number (Akin)
- 9010
- Standby power consumption (solstandby)
- 0.05 W
- Surface finishing
- Glossy
- Power supply
- Battery
- Surface protection
- Untreated
- Class (temperature control)
- IV
- Material quality
- Thermoplastic
- Sensor type
- Temperature; Humidity
- Color
- Pure white; White
- Degree of protection
- IP20
- Functions
- Parallel-service possible; Manual set point setting
- Material
- Plastic
- Mounting method
- Surface mounted (plaster); Surface mounting
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081853960
- SAP 1200023839
- Code 81441720
Product Documentation
More from Eaton
Eaton
Eaton M22-IVS Modular Snap-Fit Mounting Adapter
Eaton
xComfort Switching Actuator with Potential-Free Push-Button Input
CSAU-01/04
Eaton
Residual current circuit breaker with overcurrent 20A 3P B 30MAA (PKPM3-20/3/B/003-A)
Eaton
Terminal 50MM2 AL/CU FOR 16MM2 C (bpz-IC/50-16/235-P)
BPZ-IC/50-16/235-P
Eaton
Radiator Thermostat (CHVZ-01/05)
Eaton
Foot Switch, Black, 1 NO + 1 NC, Enclosed
FAK-S/KC11/I
Eaton
PUSH-Button Double 55X55MM
CTAA-02/04
Eaton
Fuse PV-25 A DC 1000 V gPV
PV-25A14F
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CPAD-00/198?
- CPAD-00/198 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CPAD-00/198.
- What is the HS code for CPAD-00/198?
- The customs tariff (HS) code for CPAD-00/198 is 8536.90.
- Who manufactures CPAD-00/198?
- CPAD-00/198 is a Eaton product in the SC001101 range.
- Is a datasheet available for CPAD-00/198?
- Yes — the CPAD-00/198 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CPAD-00/198?
- The minimum order quantity is 1.
- Is CPAD-00/198 available?
- Yes — CPAD-00/198 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
