Eaton

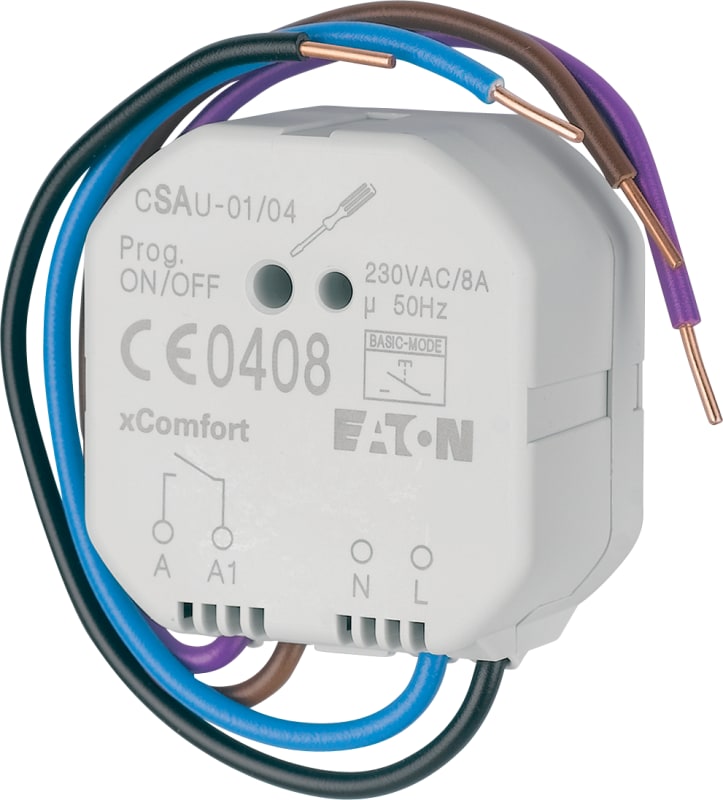

xComfort Switching Actuator with Potential-Free Push-Button Input
Part numberCSAU-01/04EAN / GTIN4015081189106HS code8541.41
Electrical Components
Home Automation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton xComfort CSAU-01/04 switching actuator with potential-free (volt-free) connection.
Technical Specifications
- Manufacturer part number (MPN)
- CSAU-01/04
- EAN / GTIN
- 4015081189106
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 121080
- Depth
- 65 mm
- Height
- 27 mm
- Width
- 65 mm
- Weight
- 0.056 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Local operation/hand operation
- Bus system operating type
- Radio frequent; xComfort
- Actuation function
- Switching
- Bus system product type
- Actuator
- Built-in installation box depth - min
- 26 mm
- Number of inputs (binary)
- 0
- Number of switching contacts - max
- 1
- Fitted with
- Bus connection
- Switching current - max
- 8 A
- Switching power - max
- 1840 W
- Width in number of modular spacings
- 3
- Output power
- 1840 W
- Power supply
- Mains
- Degree of protection
- IP20
- Functions
- Bus module detachable
- Mounting method
- Flush mounting; Flush mounted (plaster)
- Power consumption
- 0.6 W
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- Yes
- Local operation/hand operation
- Yes
- With LED indication
- No
- Max. switching power
- 1840 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 1
- Max. switching current
- 8 A
- Different phases connectable
- No
- With bus connection
- Yes
- Bus module detachable
- Yes
- Min. depth of built-in installation box
- 26 mm
- Modular expandability
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4015081189106
- SAP 1000099252
- Code 8946096
Product Documentation
Document preview: BRYTEAKT. POT.FRI TRYKKNAPPMOD (CSAU-01/04) — Specification Data Sheet (OEM)
