Eaton

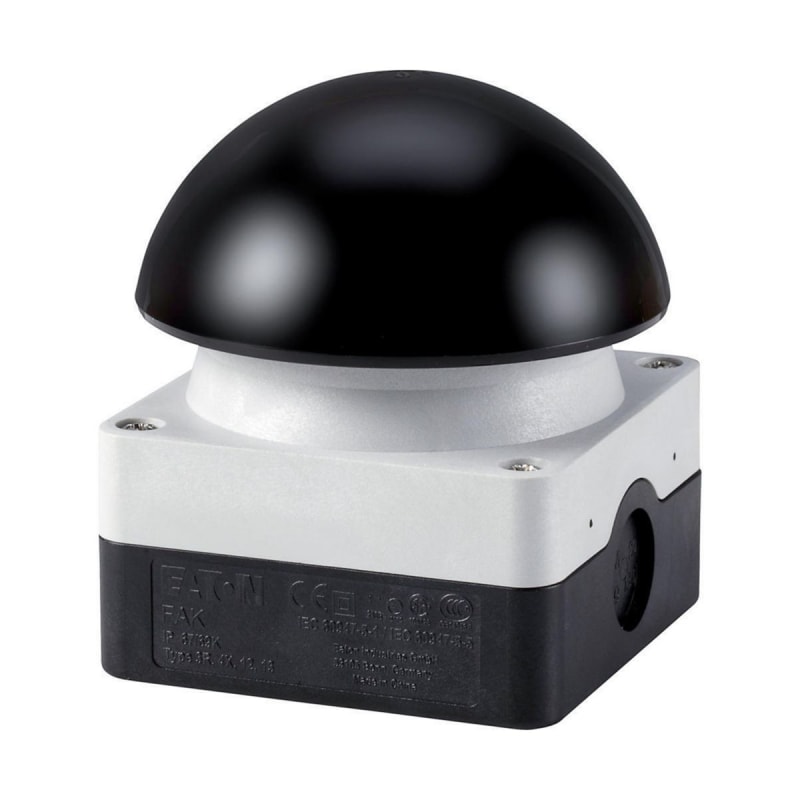

Foot Switch, Black, 1 NO + 1 NC, Enclosed
Part numberFAK-S/KC11/IEAN / GTIN4015082297497HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAK-S/KC11/I foot-operated push button switch, black, 1 N/O + 1 N/C contacts, in enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- FAK-S/KC11/I
- EAN / GTIN
- 4015082297497
- Sales unit
- pcs
- Eaton catalogue number
- 229749
- Depth
- 100 mm
- Height
- 85 mm
- Width
- 85 mm
- Weight
- 0.324 kg
- Certifications
- UL 508; CSA; IEC/EN 60947-5; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; UL File No.: E29184; CE; CSA Class No.: 3211-03; IEC/EN 60947-5-1; UL; CSA File No.: 012528; CSA-C22.2 No. 14-05; VDE 0660
- Catalog Notes
- Contacts with safety function, by positive opening to IEC/EN 60947-5-1
- Actuating force
- 40 N
- Actuator color
- Black
- Actuator function
- Momentary
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Enclosure color
- Black; Gray
- Unlocking method
- None
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Operating frequency
- 3600 Operations/h
- Product category
- Foot and palm switches
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Complete device
- Colour cap
- Black
- Spring-return
- Yes
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082297497
- SAP 1000033743
- Code 8511071
Product Documentation
Document preview: Foot Push Button Black 1S+1TO KAPSL. (fak-S/KC11/I) — Specification Data Sheet (OEM)
More from Eaton
Eaton
PUSH-Button Double 55X55MM
CTAA-02/04
Eaton

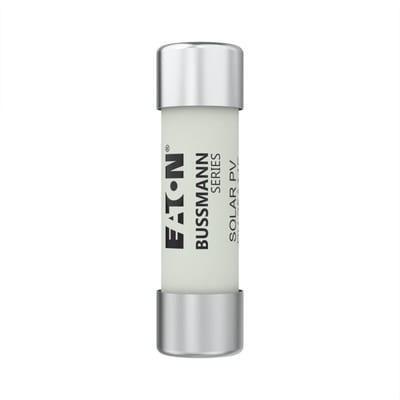

Fuse PV-25 A DC 1000 V gPV
PV-25A14F
Eaton

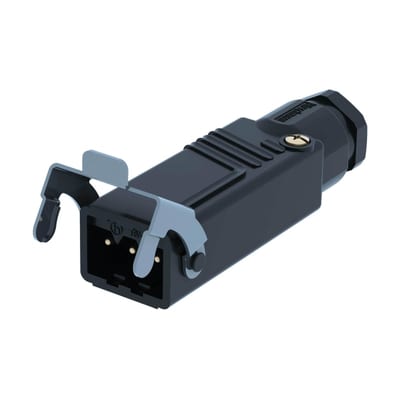

STAS-3 Hirschmann plug (Last)
500365
Eaton

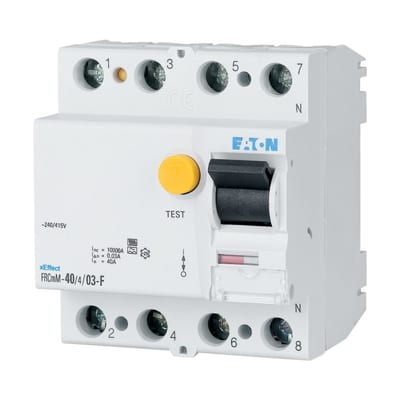

Residual current circuit breaker 40A 4P 100MA F (187415)
Eaton

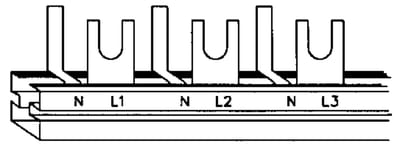

BUSBAR 3-PHASE+n 1-Pole+n 285mm
Z-GSV-16/3P+3N/9
Eaton

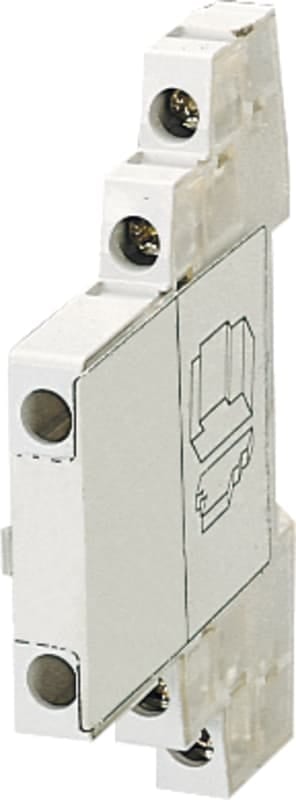

Auxiliary contact 1 NO + 1 NC
NHI11-PKZ0
Eaton

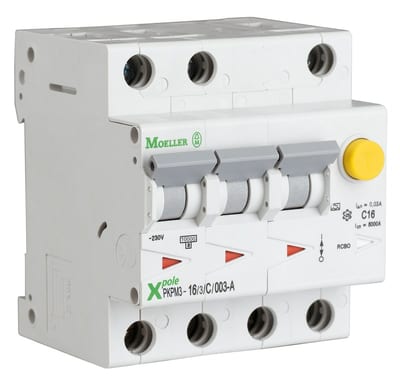

Residual current circuit breaker with overcurrent 20A 3P C 100MAA (PKPM3-20/3/C/01-A)
Eaton

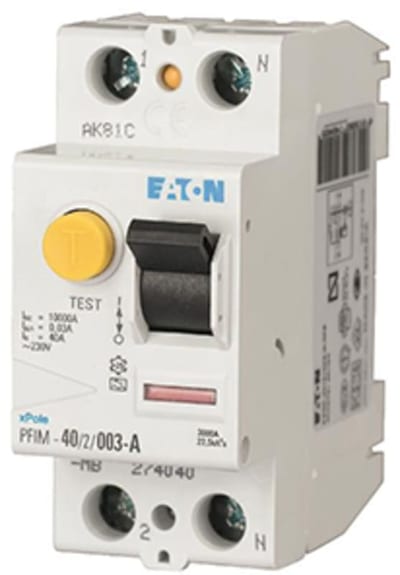

Residual current circuit breaker 63A 2P 30MAA
