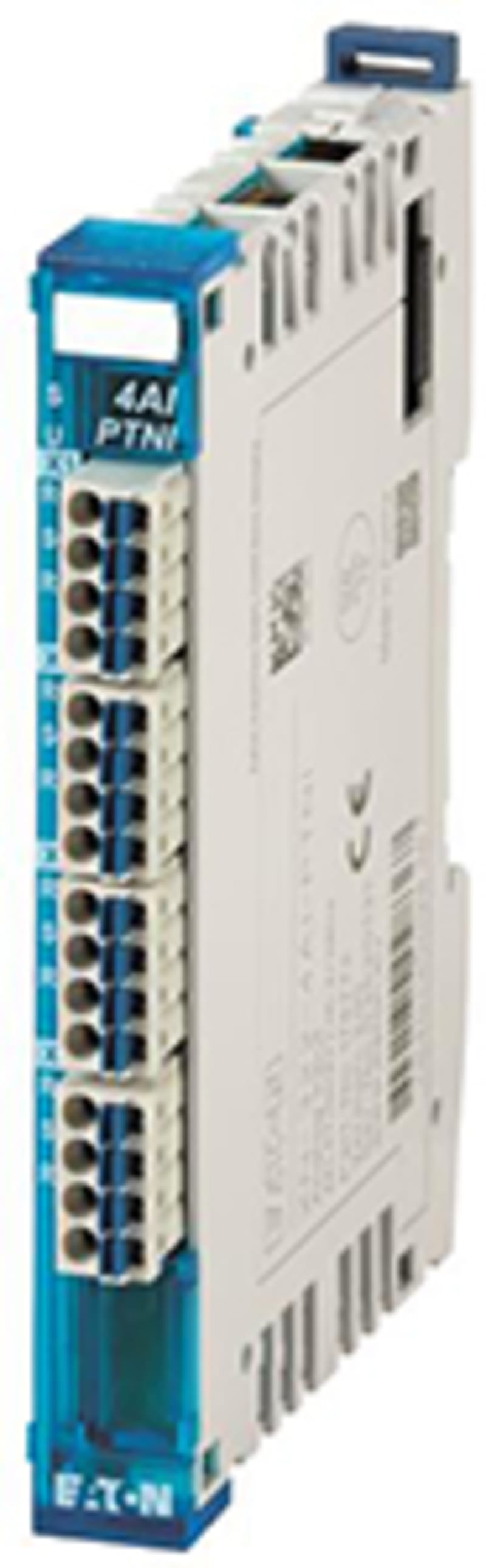

Analog input module; 4 analog inputs

Eaton 178772 Analog input module; 4 analog inputs; Pt/Ni/KTY/R with 2- or 3-conductor connection.

Manufacturer part number (MPN)

178772

EAN / GTIN

7640130098367

Sales unit

pcs

Eaton catalogue number

178772

Depth

104.2 mm

Height

16.8 mm

Width

80.3 mm

Weight

0.056 kg

Certifications

CE; UL File No.: E135462; cULus; EN 61131-2; EN 61000-6-2; EN 61000-6-4; UL508; CSA-C22.2 No. 142-M

Height of fall (IEC/EN 60068-2-32) - max

1 m

Mounting position

Horizontal

Shock resistance

15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-20 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Condensation: prevent with appropriate measures

Relative humidity

0 - 95 % (non-condensing)

Connection type

2-conductor/3-conductor, Temperature and resistance measurement; Push-in spring-cage terminal (plug-in connection), Connection design in TOP direction

Protocol

Other bus systems

Heat dissipation per pole, current-dependent Pvid

0.768 W

Static heat dissipation, non-current-dependent Pvs

1.08 W

Rated operational voltage

160 V (terminations)

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

18 VDC

Air discharge

8 kV

Burst impulse

1 kV, Signal cable; 2 kV, Supply cable

Contact discharge

4 kV

Electromagnetic fields

1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3); 10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Emitted interference

47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency); 40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)

Radiated RFI

10 V

Surge rating

0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC; 1 kV, Signal cable, unbalanced, EMC

Voltage dips

Voltage dips: 10 ms/Voltage fluctuations: Yes

Electric connection type

Plug-in connection

Features

Input, resistance thermometer; Fieldbus connection over separate bus coupler possible; Analog outputs configurable; Input, resistor; Analog inputs configurable; Input signal, configurable; Fieldbus connection over separate bus coupler possible

Fitted with

10 kHz, second-order low-pass input filter; Parameterizable Software input filter

Value representation

SIGNED16 (0.1 °C), UNSIGNED16 (0.1 Ω), Temperature and resistance measurement

Current consumption

37 mA (typ.), for +24 V, Power supply - Input; 0 mA (typ.), for +5 V power supply (internal), Power supply - Input

Degree of protection

IP20; NEMA 1

Mounting method

Rail mounting possible

Number of channels

4, Analog Inputs

Overvoltage category

III

Pollution degree

3

Product category

XN-322 analog input module

Resolution

16 Bit (Analog inputs)

Type

Analog input module for four PT100/PT1000/NI100/NI1000KTYxx/R resistance inputs with 2-wire and 3-wire configurations. XN300 I/O slice module

Used with

XN-312-…; XN300

Voltage type

DC

Accuracy

± 0.3 % of full scale, Temperature and resistance measurement

Input

4 Analog resistance inputs (Pt/Ni/KTY/R with 2-wire or 3-wire connection)

Load current

Not specified by plug manufacturer

Measured variables

Temperature; Resistance

Number of inputs (analog)

4

Number of outputs (analog)

0

Value refresh time/cycle time

Min. 4 / 4 ms (per channel / all channels), Analog Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Analog inputs: no

Gauge pin

A1 (according to IEC/EN 60947-1)

Insulating material group

I

Stripping length (main cable)

10 mm

Power consumption

0.3 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Input, current

No

Input, voltage

No

Input, resistor

Yes

Input, resistance thermometer

Yes

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Number of HW-interfaces other

1

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

HS Code

8537.10
