Eaton
Actuator LS-XF-ZBZ
Part numberLS-XF-ZBZEAN / GTIN4015081065929HS code8538.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

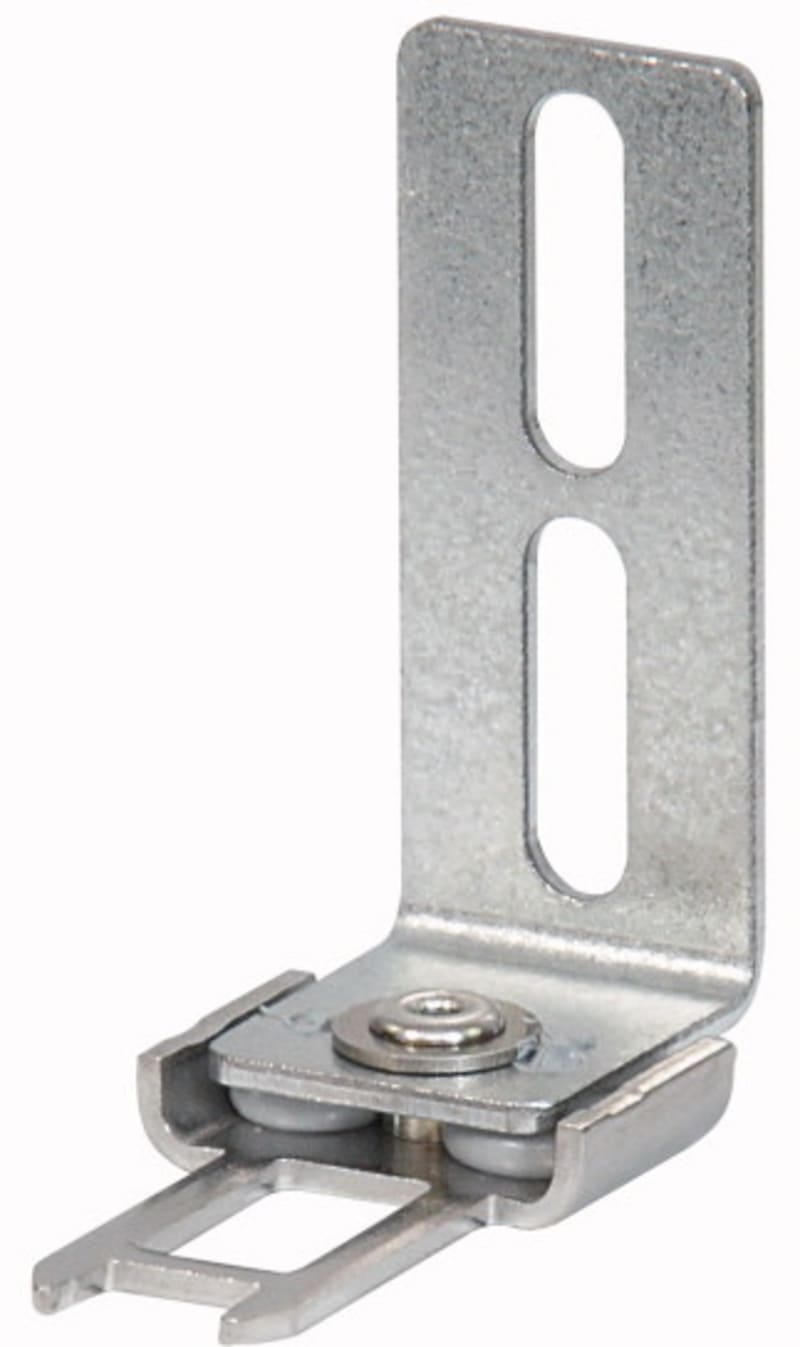

Eaton LS-XF-ZBZ Actuator, angled, flexible.
Technical Specifications
- Manufacturer part number (MPN)
- LS-XF-ZBZ
- EAN / GTIN
- 4015081065929
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 106832
- Depth
- 55 mm
- Height
- 65 mm
- Width
- 29 mm
- Weight
- 0.038 kg
- Compliances
- CE Marked
- Certifications
- UL 508; IEC 60947-5; CSA Std. C22.2 No. 14; EN 60947-5; CSA File No.: 012528; IEC/EN 60947; IEC/EN 60947-5; UL File No.: E29184; CSA; UL; CE; CSA-C22.2 No. 14; CSA Class No.: 3211-03; UL Category Control No.: NKCR
- Mechanical holding force
- 1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG); 1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF); 1200 N (according to GS-ET-19 (04/2004), XNW)
- Mounting position
- As required
- Shock resistance
- 10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Functions
- For combination with LS-...ZBZ/X basic devices
- Material
- Stainless steel
- Duty factor
- 100 %
- Model
- Actuator with vertical mounting
- Operating frequency
- 800 Operations/h
- Type
- Actuator Angled, flexible actuator
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081065929
- SAP 1000288799
- Code 8297216
Product Documentation
Document preview: Actuator, — Specification Data Sheet (OEM)
