Eaton

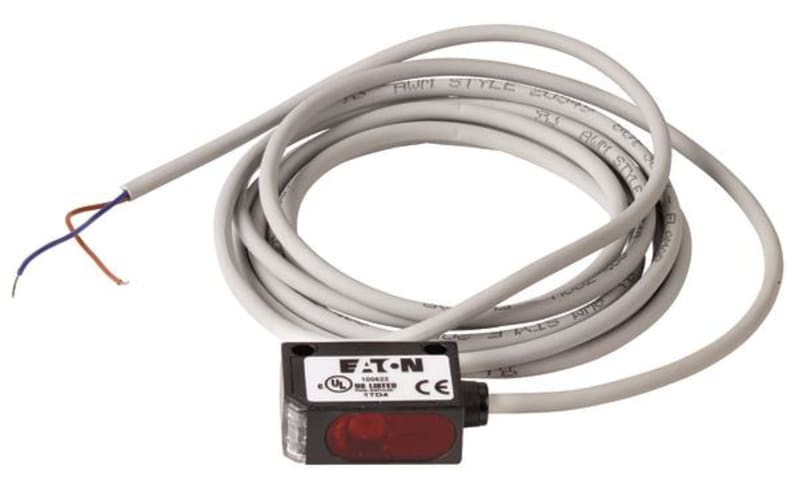

Area switch E71-NTBS-CA
Part numberE71-NTBS-CAEAN / GTIN4015081643295HS code8544.42
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E71-NTBS-CA Area switch, optical range 1.5m, 4L, 10-30VDC, NPN, cable.
Technical Specifications
- Manufacturer part number (MPN)
- E71-NTBS-CA
- EAN / GTIN
- 4015081643295
- HS code
- 8544.42
- Sales unit
- pcs
- Eaton catalogue number
- 100521
- Depth
- 340.77 mm
- Height
- 18.03 mm
- Width
- 15.24 mm
- Weight
- 0.24 kg
- Certifications
- CSA-C22.2 No. 14; CSA File No.: UL report applies to both US and Canada; UL; UL Category Control No.: NRKH, NRKH7; IEC/EN 60947-5-2; Certified by UL for use in Canada; CE; UL 508; UL File No.: E166051
- Type
- Optical sensors
- Device type
- Transmitter
- Electric connection type
- Cable
- Fitted with
- Transmitter (for combination with detector)
- Enclosure material
- Plastic
- Enclosure type
- Cuboid
- Operating mode
- Switching principle: Adjustable bright/dark switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Short-circuit protection; Thru-light beam; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 22
- Connection type
- 4-wire; 2 m connection cable
- Cable sheath material
- Other
- Light type
- Infrared light
- Degree of protection
- IP67; NEMA 4
- Interface type
- Other
- LED indicator
- Status indication of Operating voltage: Green LED; Status indication of Switching state: Yellow LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 30 g, Mechanical, Shock duration 11 ms
- Optical surface material
- Plastic
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 1500 mm
- Sensor height
- 32 mm
- Sensor length
- 20 mm
- Switching distance - max
- 1500 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Light-/dark switching
- Switching output type
- NPN
- Sensor material
- Insulated material
- Vibration resistance
- According to IEC/EN 60068-2-6; 10 - 55 Hz, Amplitude 0.5 mm
- Wavelength of the sensor
- 880 nm
- Width sensor
- 12 mm
- Product category
- E71 NanoView Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - max
- 70 °C
- Ambient storage temperature - min
- -25 °C
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 0
- Operating temperature - max
- 55 °C
- Operating temperature - min
- -25 °C
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4015081643295
- SAP 1200606865
- Code 82994748
Product Documentation
Document preview: Area switch, — Specification Data Sheet (OEM)
More from Eaton
Eaton

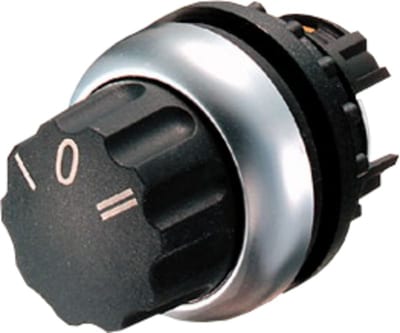

Vriknapp Round 3 Fixed STILL.
M22-WR3
Eaton

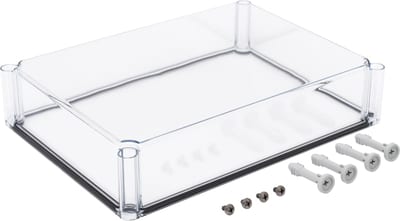

Cover CLEAR 380X280X80
EKP80-T
Eaton

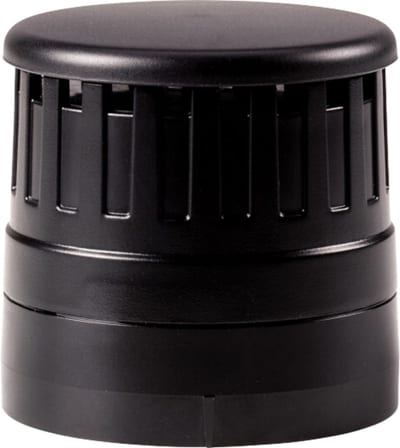

Akuplug,230V,Multitone (SL7-AP230-M)
Eaton

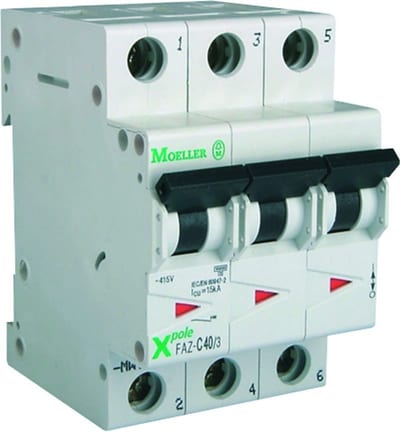

Eaton FAZ-C2/3 Miniature Circuit Breaker — 3P, Type C, 2 A, 15 kA
Eaton

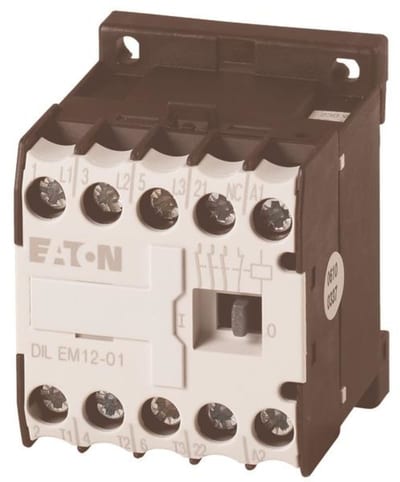

Contactor DILEM12-01-G(24VDC)
Eaton

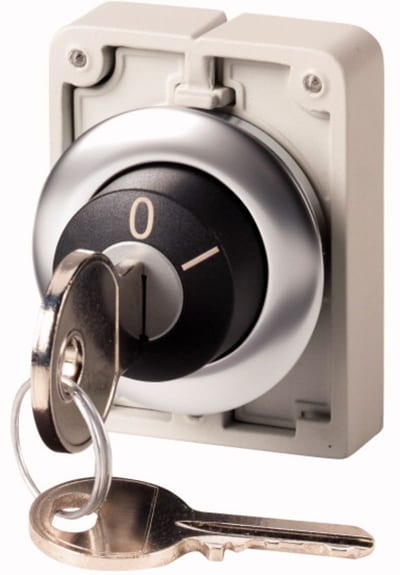

Key switch, Flat Front (M30C-FWRS-RS-A1)
Eaton

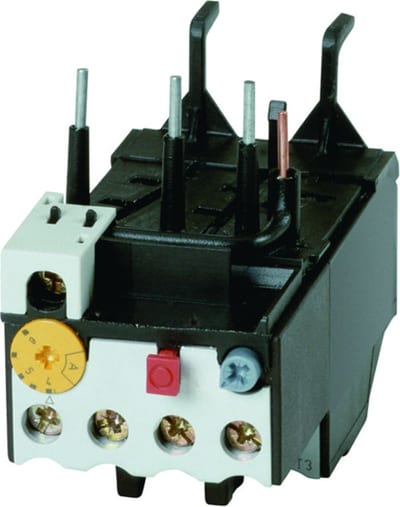

Motor Protection Relay 2,4-4A (ZB32-4)
Eaton

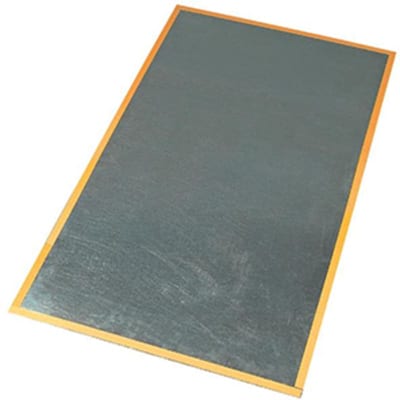

Backplate HxB=1560 x 800 mm
