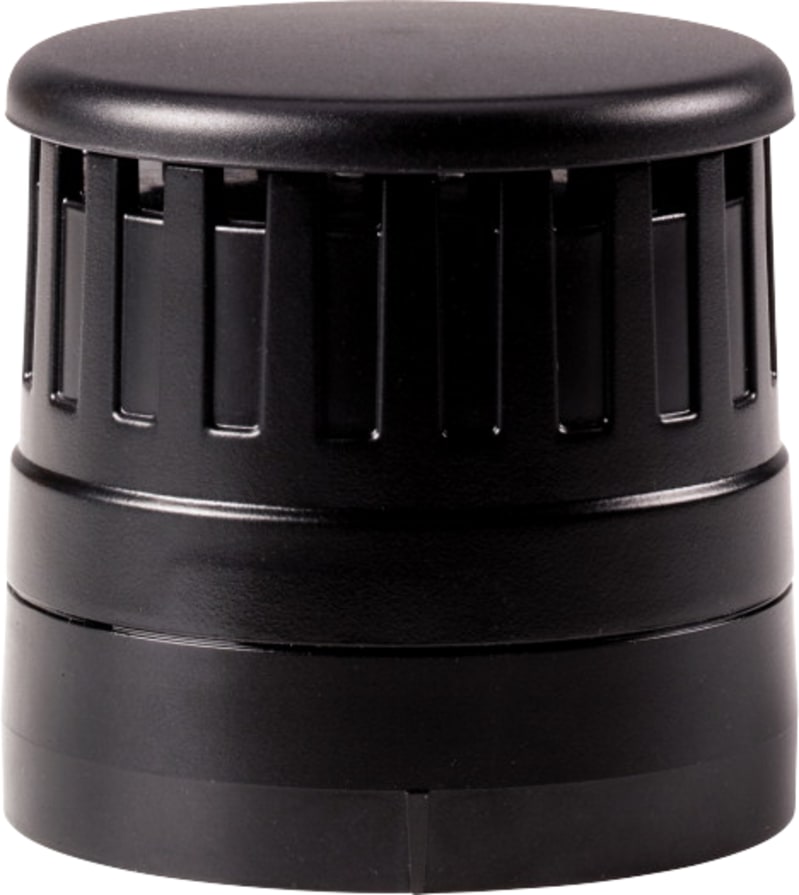

Akuplug,230V,Multitone (SL7-AP230-M)

Eaton Akuplug,230V,Multitone (SL7-AP230-M) is listed in the cBallast industrial catalogue. HS code: 8531.80.

Manufacturer part number (MPN)

SL7-AP230-M EAN / GTIN: 4015081678334 Sales unit: pcs Eaton catalogue number: 171289 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.103 kg Compliances: CE Marked Catalog Notes: 0 Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 43 mA Rated operational voltage (Ue) at AC - max: 240 V Rated operational voltage (Ue) at AC - min: 230 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Other Accessories: Internal DIP switch, internal potentiometer Alarm type: Continuous tone; Internal sound setting, 3 pole DIP; Pulsed tone; 8 types of sound; Tone adjustable Connection to SmartWire-DT: No Current consumption: 0.043 A, at 230/240 V AC Degree of protection: IP66; NEMA 13 Frequency rating: 500 - 2700 Hz Loudness: 100 dB; Can be adjusted with built-in potentiometer material: Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC) Mounting position: As required; Place only at the highest position on a pole Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Type: Acoustic module Voltage type: AC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 230–240 V Operating voltage AC 60 Hz: 230–240 V Country of origin: Austria

HS Code

8531.80

• EAN 4015081678334
• SAP 1000492324
• Code 8818911
