Eaton

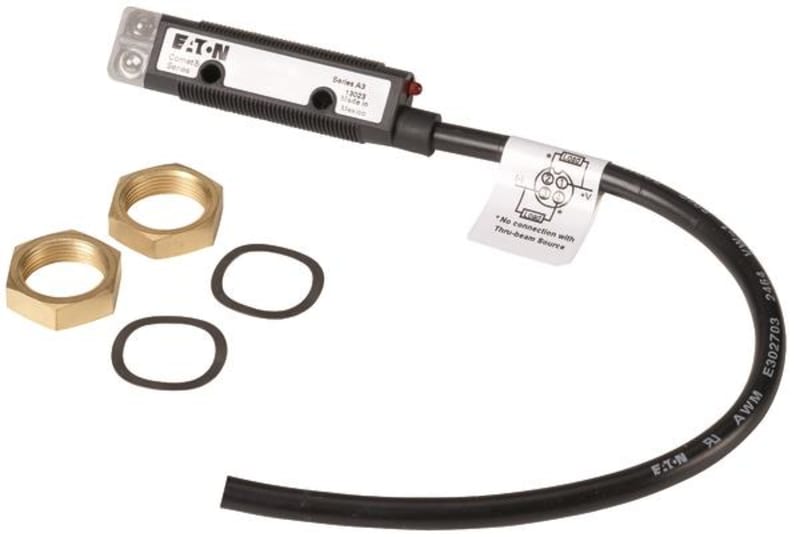

Optical sensor 13103AQD07
Part number13103AQD07EAN / GTIN4015081323906HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 13103AQD07 Optical sensor, Sn=225mm, 4L, 10-30VDC, NPN, PNP, M18, M12.
Technical Specifications
- Manufacturer part number (MPN)
- 13103AQD07
- EAN / GTIN
- 4015081323906
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135597
- Depth
- 127 mm
- Height
- 50.8 mm
- Width
- 152.4 mm
- Weight
- 0.3 kg
- Certifications
- CSA Class No.: 3211-07; CSA-C22.2 No. 14; IEC/EN 60947-5-2; CSA File No.: 50513; UL Category Control No.: NRKH
- NRKH7; UL File No.
- E117028; CE; UL; UL 508; CSA
- Type
- Optical sensors
- Features
- Straight beam
- Electric connection type
- Plug-in connection
- Fitted with
- Background suppression (Perfect Prox)
- Enclosure material
- Plastic
- Enclosure type
- Cylinder, screw-thread
- Operating mode
- Switching principle: Adjustable bright/dark switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Reflected-light beam; Protection against polarity reversal; Short-circuit protection
- Voltage type
- DC
- Wire size
- 22
- Connection type
- Plug-in connection M12 x 1; 4-wire
- Cable sheath material
- Other
- Light type
- Infrared light
- Degree of protection
- IP67; NEMA 6
- Interface type
- Other
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Programmable/configurable
- Load current
- Max. 100 mA (Ie, PNP); Max. 250 mA (Ie, NPN, 120 > 50°C)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Optical surface material
- Plastic
- Output current (mA) - max
- 250 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 225 mm
- Sensor length
- 66 mm
- Switching distance - max
- 225 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Light-/dark switching
- Switching output type
- PNP
- Sensor material
- Insulated material
- Triangulation
- Background fade-out
- Product category
- Comet Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -40 °C
- Diameter sensor
- 18 mm
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 2
- Operational current (Ib) in the switched state at 24 V DC
- 30 A
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081323906
- SAP 1200606840
- Code 82994657
Product Documentation
Document preview: Optisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton

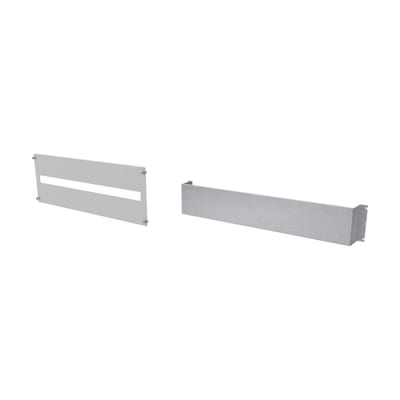

Mounting Kit BZM1/2 V H300 B1000 xE Basic
2457612
Eaton

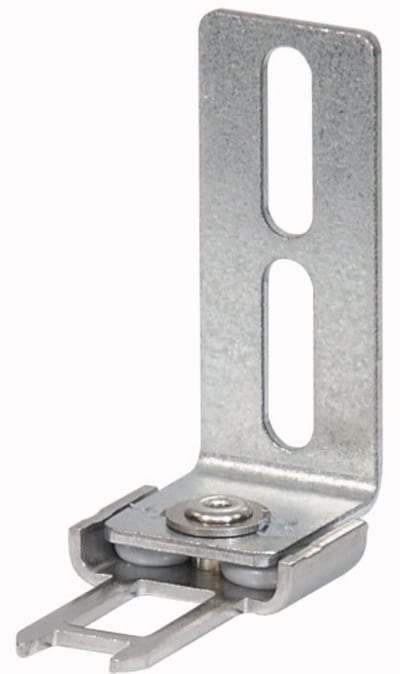

Actuator LS-XF-ZBZ
Eaton
Eaton FAZ-D1/2 Miniature Circuit Breaker — 2P, Type D, 1 A, 15 kA
Eaton
Eaton FAZ-C1.6/3N Miniature Circuit Breaker — 3P+N, Type C, 1.6 A, 15 kA
Eaton
Eaton FAZT-C40/1N Miniature Circuit Breaker — 1P+N, Type C, 40 A, 25 kA
Eaton

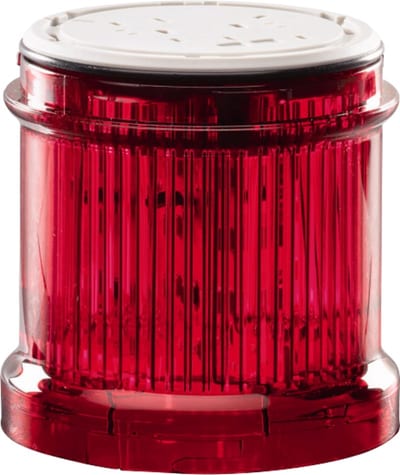

LED Steady light, Red, 120V (SL7-L120-R)
