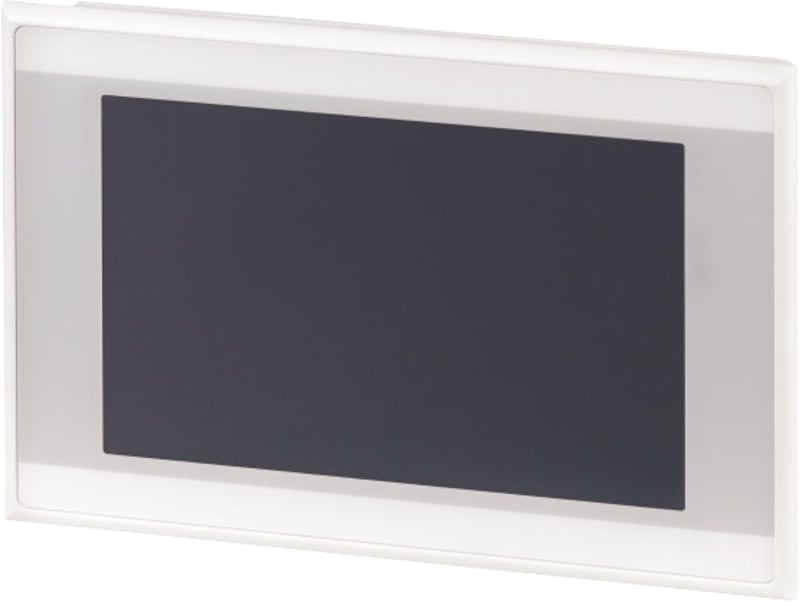

TOUCH7", PLC, SWD, DPM, 485

Eaton XV-102-E8-70TWRC-10.

Manufacturer part number (MPN)

XV-102-E8-70TWRC-10

EAN / GTIN

7640130097636

Sales unit

pcs

Eaton catalogue number

153528

Depth

210 mm

Height

38 mm

Width

135 mm

Weight

0.66 kg

Type

Coordinator for the SmartWire-DT communications system

Features

Overload proof; UL508, cUL approvals; USB device; Target and web visualization; Portrait format; Slot for SD card; USB Host; Fanless CPU and system cooling, natural convection-based passive cooling; Ethernet interface

Fuse type

Built-in fuse (not accessible)

Addressing

Address set automatically

Connection to SmartWire-DT

Yes

Enclosure material

Plastic

Supply voltage at AC

Supply voltage at AC

Supply voltage at AC

Supply voltage at AC

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Width of the front

210 mm

Product category

SmartWire-DT coordinators

Resolution

800 x 480 px WVGA

Air pressure

795 - 1080 hPa (operation)

Explosion safety category for dust

ATEX dust-ex-protection

II 3D Ex II T70°C IP5x

Zone 22, Category 3D; ATEX dust-ex-protection, in relation to CE

Display size

152 x 91 mm

Backup time

10 years, typ. (time at zero voltage)

Explosion safety category for gas

Explosion protection according to EN 61241-1; Explosion protection according to EN 60079-0; Explosion protection according to EN 13463_x

Memory capacity

64,000 kByte

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - max

60 °C

Ambient storage temperature - min

-20 °C

Built-in depth

33 mm

Equipment heat dissipation, current-dependent Pvid

9.5 W

Front height

135 mm

Number of buttons (programmable function)

0

Number of buttons with LED

0

Number of grey-scales/blue-scales of display

0

Number of HW-interfaces (industrial ethernet)

1

Number of HW-interfaces (other)

1

Battery runtime

Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)

Voltage type

DC

Connection

SmartWire-DT blade terminal SWD4-8MF2

Operating system

Windows CE 5.0 (license included)

Communication interface

PROFIBUS; SmartWire-DT master

Mounting method

Flush mounting - Inclination from vertical: ±45° (if using natural convection); Flush mounting; Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")

Display contrast ratio

300:1

Number of slots

1 (for SD-Card)

Display lighting

LED; Dimmable via software

Display type

Color display, TFT; Standard front with standard membrane (fully enclosed); TFT

Protection against polarity reversal

Yes; Yes, for supply voltage (Siemens MPI optional)

Relative humidity

10 - 95 % (non-condensing)

Lifespan

40,000 h (Service life of back-lighting)

Residual ripple

≤ 5 % (input voltage)

Connection type

Push in terminals

Supply voltage; SWD

Plug, 8-pole

Rated control supply voltage

24 V DC (UPOW, -20 %/+25 %); 24 V DC (UAUX, -20 %/+25 %)

Inrush current

12.5 A (for 6 ms)

Data transfer rate

250 kBit/s, SmartWire-DT; 125 kBit/s, SmartWire-DT

Degree of protection

IP20; IP20, rear

Luminance intensity

250 cd/m²

Degree of protection (front side)

IP65; NEMA 4X

Number of colors of the display

65536

Station

SmartWire-DT master, SmartWire-DT network

Vibration resistance

According to IEC/EN 60068-2-6

Processor

RISC CPU, 32 Bit, 400 MHz

RoHs conformity

Yes

Memory

32 kByte internal NVRAM (retained data); SD Memory Card Slot: SDA Specification 1.00 (External); 64 MByte internal DRAM (OS, Program and data memory); 128 MByte internal NAND-Flash (can be used for data backup)

Functions

Additional software components, loadable; Process value representation (output) possible; Process default value (input) possible; SmartWire-DT coordination

Touch technology

Resistive touch; Touch sensor (glass with foil), Resistive touch protective screen; Glass with film touch sensor

Model

Insulating enclosure and front plate

Interfaces

USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated); Ethernet (100Base-TX/10Base-T); USB 2.0 device (not galvanically isolated); RS485

LED indicator

Status indication of Supply voltage: LED; Status indication of SmartWire-DT master: Green and red LEDs; Status indication of SmartWire-DT network: Configurable green or red LED

Voltage dips

≤ 10 ms from rated voltage (24 V DC); ≤ 10 ms, Bridging voltage dips; 5 ms from undervoltage (19.2 V DC)

Number of HW-interfaces (parallel)

0

Number of HW-interfaces (RS-232)

0

Number of HW-interfaces (RS-422)

0

Number of HW-interfaces (RS-485)

1

Number of HW-interfaces (serial TTY)

0

Number of HW-interfaces (USB)

2

Number of HW-interfaces (wireless)

0

Number of interfaces (PROFINET)

0

Number of online/runtime languages

100

Number of password levels

200

Number of pixels (horizontal)

800

Number of pixels (vertical)

480

Number of SmartWire-DT slaves

99

Number of system buttons

1

Operating temperature - max

50 °C

Operating temperature - min

0 °C

Repetition rate

1 s

Screen size (diagonal)

7 in

Static heat dissipation, non-current-dependent Pvs

9.5 W

Permissible voltage

35 V DC (for a duration of < 100 ms); 18.0 - 31.2 V DC, absolute with ripple; 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %); 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)

Potential isolation

Between UPow and 15 V SmartWire-DT supply voltage: no; Supply voltage UAUX: no; Power supply: no

Power consumption

Max. 10 W; 9.5 W total; 2.5 W (USB Slave to USB Host); 7 W

Protocol

PROFIBUS; MODBUS; Other bus systems; TCP/IP; EtherNet/IP

Rated operational current (Ie)

0.7 A

Rated operational voltage

24 V DC (power-supply - safety extra low voltage); Typically UAUX -0.2 V (for 24 V DC slaves); 14.5 V (± 3 % - SmartWire-DT)

Short-circuit protection

Yes, Short-circuit rating, SmartWire-DT supply voltage; No, external fuse FAZ Z3, Supply voltage UAux

Shock resistance

Mechanical, According to IEC/EN 60068-2-27

Terminal capacity

24 - 16 AWG, solid or stranded; 0.25 - 1.5 mm², flexible with ferrule; 0.2 - 1.5 mm², solid

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Number of HW-interfaces other

1

HS Code

8537.10

• EAN 7640130097636
• SAP 1000339058
• Code 8371606
