Eaton
iBox Distribution Board Package TN 40 A, 8 Circuits
Part numberI-48-4-DHS-PKP-40-4EAN / GTIN4015081756131HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

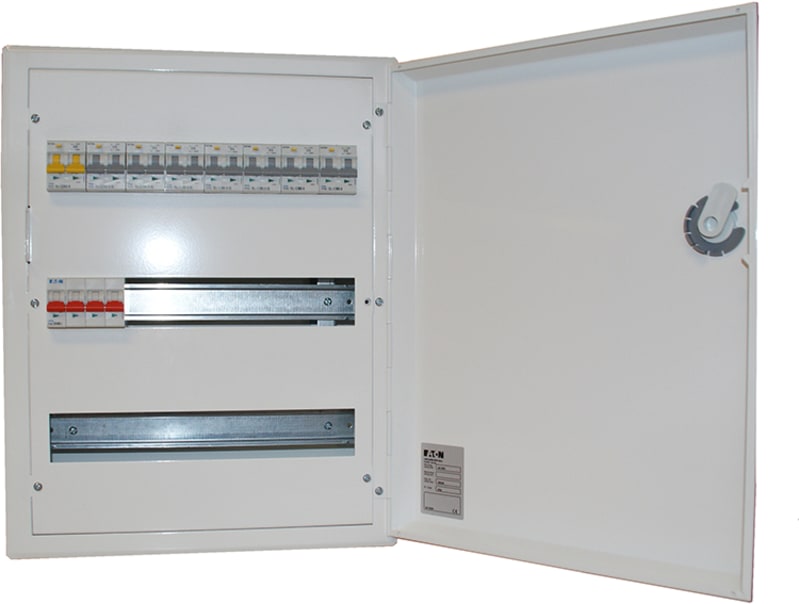

Eaton I-48-4-DHS-PKP-40-4 iBox complete distribution board package, 8 circuits, TN network, 40 A; 395 × 500 × 165 mm.
Technical Specifications
- Manufacturer part number (MPN)
- I-48-4-DHS-PKP-40-4
- EAN / GTIN
- 4015081756131
- Sales unit
- pcs
- Eaton catalogue number
- 180438
- Depth
- 165 mm
- Height
- 500 mm
- Width
- 395 mm
- Weight
- 8.2 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Earthing terminal block
- Enclosure material
- Steel
- Built-in height
- 500 mm
- Built-in width
- 395 mm
- Built-in depth
- 165 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- RAL-number
- 9016
- Width in number of modular spacings
- 16
- Color
- White
- Number of rows
- 3
- Degree of protection
- IP30
- Functions
- Sealable
- Mounting method
- DIN-rail; Hollow wall
- Internal depth
- 133 mm
- Number of openings for socket outlets
- 0
- Rated current
- 40 A
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 133 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081756131
- SAP 1000706627
- Code 8198238
Product Documentation
Document preview: SKAPPAKKE IBOX TN 40A 8 KURSER (I-48-4-DHS-PKP-40-4) — Specification Data Sheet (OEM)
