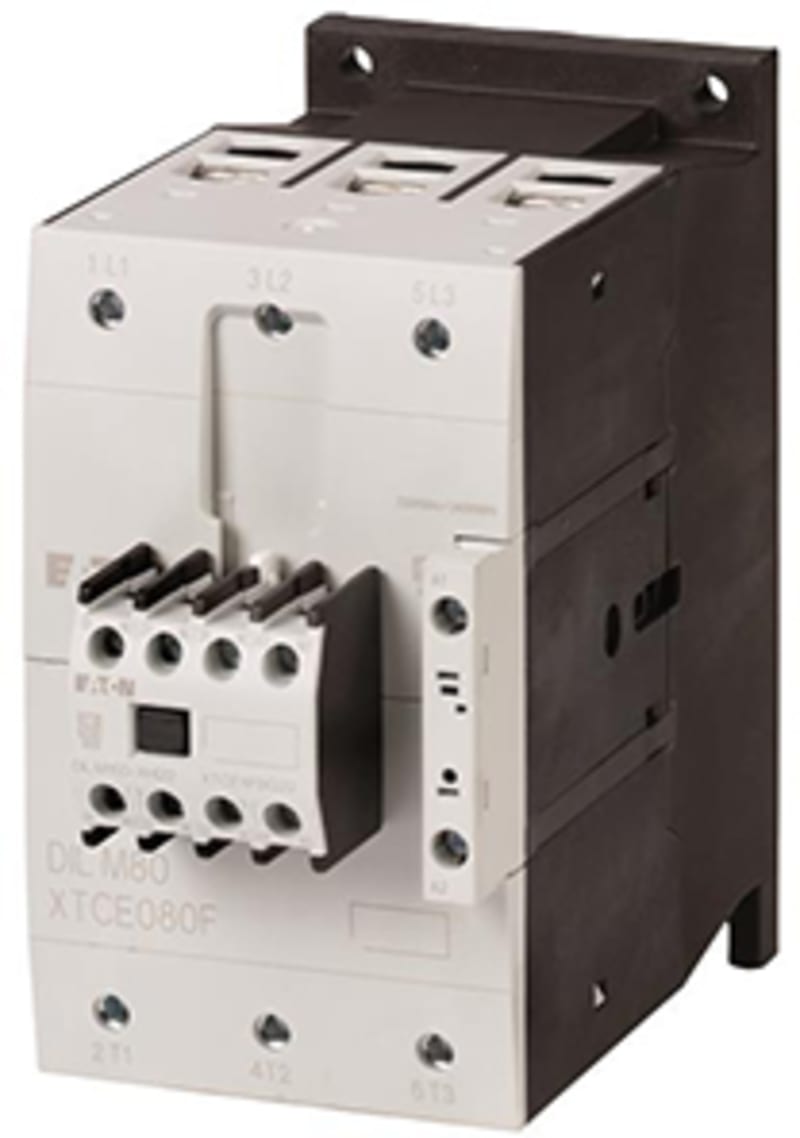

Contactor, DILM80-22(230V50HZ) (DILM80-22(230V50HZ,240V60HZ))

Eaton DILM80-22(230V50HZ,240V60HZ) Contactor, 400V 37 kW, 2 N/O, 2 NC, 230 V 50 Hz, 240 V 60 Hz,.

Manufacturer part number (MPN)

DILM80-22(230V50HZ,240V60HZ)

EAN / GTIN

4015082394493

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

239449

Depth

175 mm

Height

170 mm

Width

90 mm

Weight

2.22 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-4-1; EN 60947-4-1; IEC/EN 60947; CE; CSA-C22.2 No. 60947-4-1-14; VDE 0660; UL Category Control No.: NLDX; UL File No.: E29096; CSA Class No.: 2411-03, 3211-04; UL; IEC/EN 60947-4-1; UL 60947-4-1; CSA; CSA File No.: 012528

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

200 A

Conventional thermal current Ith (3-pole, enclosed)

80 A

Conventional thermal current Ith at 55°C (3-pole, open)

94 A

Conventional thermal current Ith at 60°C (3-pole, open)

90 A

Conventional thermal current Ith of main contacts (1-pole, open)

225 A

Equipment heat dissipation, current-dependent Pvid

9 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

3 W

Rated operational current for specified heat dissipation (In)

80 A

Static heat dissipation, non-current-dependent Pvs

5.8 W

Rated breaking capacity at 220/230 V

800 A

Rated breaking capacity at 380/400 V

800 A

Rated breaking capacity at 500 V

800 A

Rated breaking capacity at 660/690 V

650 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

1120 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

110 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

80 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

80 A

Rated operational current (Ie) at AC-3, 440 V

80 A

Rated operational current (Ie) at AC-3, 500 V

80 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

65 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

40 A

Rated operational current (Ie) at AC-4, 440 V

40 A

Rated operational current (Ie) at AC-4, 500 V

40 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

27 A

Rated operational current (Ie) at DC-1, 110 V

110 A

Rated operational current (Ie) at DC-1, 220 V

70 A

Rated operational current (Ie) at DC-1, 60 V

110 A

Rated operational power at AC-3, 240 V, 50 Hz

27.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

37 kW

Rated operational power at AC-3, 415 V, 50 Hz

48 kW

Rated operational power at AC-3, 440 V, 50 Hz

51 kW

Rated operational power at AC-3, 500 V, 50 Hz

58 kW

Rated operational power at AC-3, 690 V, 50 Hz

63 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

11.5 kW

Rated operational power at AC-4, 240 V, 50 Hz

13 kW

Rated operational power at AC-4, 415 V, 50 Hz

24 kW

Rated operational power at AC-4, 440 V, 50 Hz

25 kW

Rated operational power at AC-4, 500 V, 50 Hz

29 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

26 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

7,000,000 Operations (Coil 50/60 Hz); 10,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

0.6 mΩ

Suitable for

Also motors with efficiency class IE3

Type

Full voltage non-reversing contactor

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC

Arcing time

15 ms

Coil voltage

230-240 Vac, 50/60 Hz

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

310 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up, 60 Hz

345 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

26 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 5.8 W, Dual-frequency coil in a cold state and 1.0 x Us; 5.8 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

5.8 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 5.8 W, Dual-frequency coil in a cold state and 1.0 x Us; 30 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Switching time (AC operated, make contacts, closing delay) - max

20 ms

Switching time (AC operated, make contacts, closing delay) - min

14 ms

Switching time (AC operated, make contacts, opening delay) - max

14 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

Power consumption

37 kW

Assigned motor power at 115/120 V, 60 Hz, 1-phase

7.5 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

25 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

15 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

30 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

60 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

75 HP

Safe isolation

690 V AC, Between the contacts, According to EN 61140; 440 V AC, Between coil and contacts, According to EN 61140

Short-circuit current rating (basic rating)

10 kA, 600 A max. fuse, SCCR (UL/CSA); 10 kA, 600 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 300 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 600 A max. fuse, SCCR (UL/CSA); 65 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 300 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 600 A max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

250 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

200 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

160 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

160 A gG/gL

HS Code

8536.90

• EAN 4015082394493
• SAP 1000288742
• Code 846679
