Eco Gateway 2 Ethernet IP

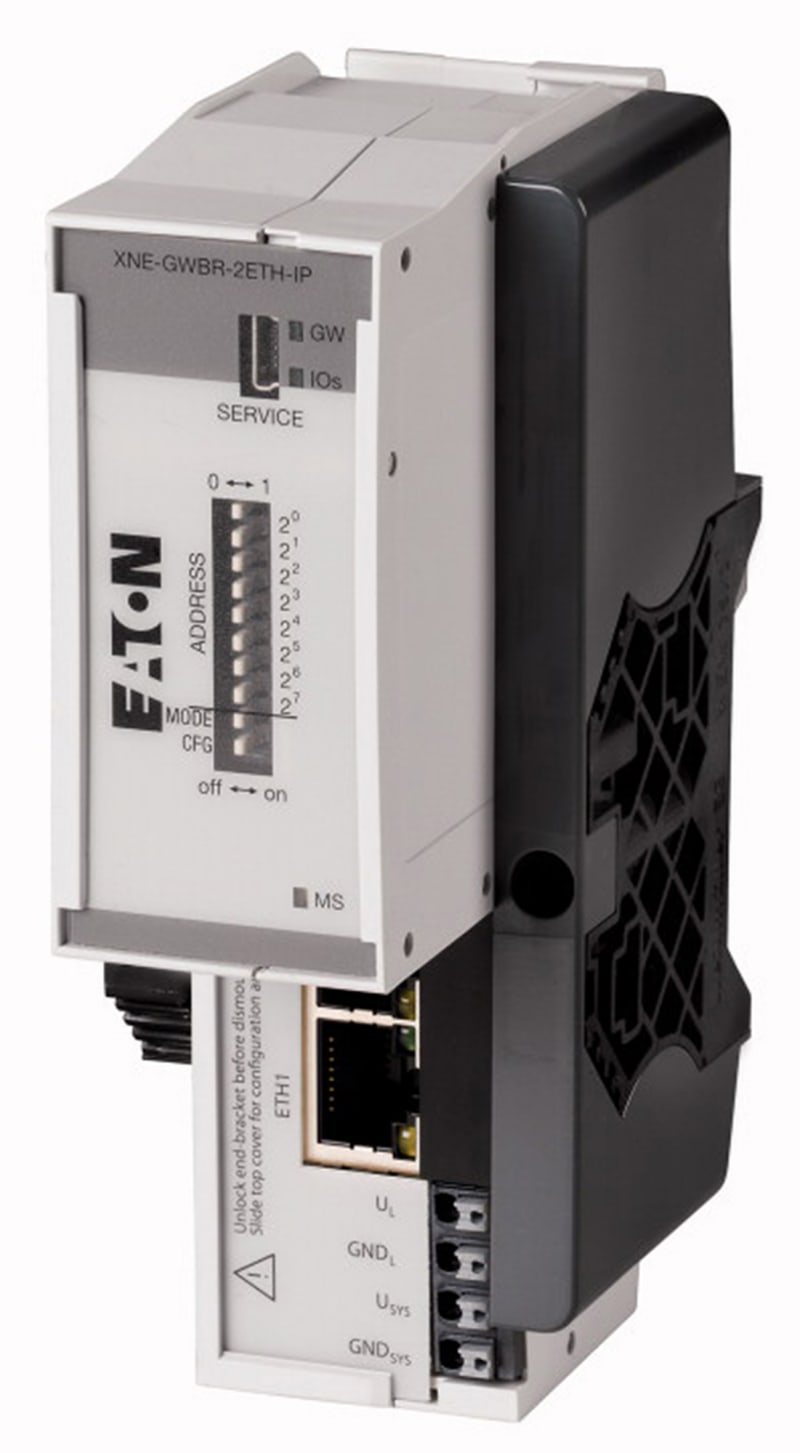

Eaton Eco Gateway 2 Ethernet IP (part number XNE-GWBR-2ETH-IP) is listed under Control & Automation / Fieldbus I/O. Sales unit: pcs; Eaton catalogue number: 140047; Depth: 129 mm; Height: 75 mm; Width: 33.5 mm; Weight: 0.136 kg.

Manufacturer part number (MPN)

XNE-GWBR-2ETH-IP

EAN / GTIN

7640130095281

Sales unit

pcs

Eaton catalogue number

140047

Depth

129 mm

Height

75 mm

Width

33.5 mm

Weight

0.136 kg

Certifications

IEC/EN 61131-2; IEC/EN 61000-6-2; cULus; IEC/EN 61000-6-4; Rated data for terminations according to IEC/EN 60947-7-1; CE

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Mechanical, According to IEC/EN 60068-2-27; Continuous according to IEC/EN 60068-2-29

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Addressing

Address set via decimal rotary coding switch, BootP, DHCP or I/Oassistant; Address set via DIP switch, BootP

DHCP or PGM; Address range

1 - 254 decimal

Connection type

Push-In spring-cage terminals, Connection design in TOP direction; Screw terminals, Field bus/Supply voltage); 2 x RJ45 (Ethernet Switch), Field bus

Data transfer rate

100 MBit/s, Networking; Setting automatically; 10/100 MBit/s; 10 MBit/s, Networking

Field voltage

24 V DC (UL)

Interfaces

Mini-USB (Service interface); Ethernet (Ethernet-IP protocol), Field bus connection

Protocol

EtherNet/IP; Ethernet; Other bus systems; TCP/IP

Static heat dissipation, non-current-dependent Pvs

8 W

Supply voltage

4.7 - 5.3 V DC

Supply voltage at AC

Supply voltage at AC

Supply voltage at DC - max

30 V

Supply voltage at DC - min

18 V

Air discharge

According to EN 61100-4-2

Burst impulse

According to IEC/EN 61000-4-4

Contact discharge

According to EN 61100-4-2

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3); 30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Features

Fieldbus connection over separate bus coupler possible

Fitted with

Bus refreshing module; Potential separation

Accessories

1 x end plate XN-ABPL and 2 x end bracket XN-WEW-32/2-SW included with supplied equipment.

Admissible range

18 - 30 V DC, Networking

Configuration

Maximum station configuration: 74 cards (XN

XNE) of slice design or max. length of station

1 m

Degree of protection

IP20

Mounting method

Rail mounting possible

Residual ripple

According to EN 61131-2

Type

XI/ON ECO gateways XNE-Gateway with integrated supply

Voltage type

DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

8 mm

Terminal capacity

0.25 - 0.75 mm², with ferrules with plastic collar; 0.25 - 1.5 mm², solid; 0.25 - 1.5 mm², flexible without ferrule; 0.25 - 1.5 mm², with ferrules without plastic collar

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

With potential separation

No

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90
