Eaton

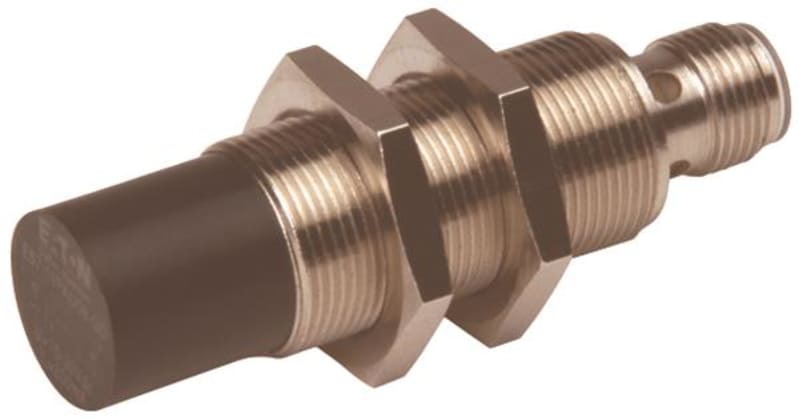

Area switch, E57-18GU08-GDB
Part number135940EAN / GTIN4015081327331HS code8544.42
Sensors & Instrumentation
Inductive Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 135940 Area switch, E57 Global series, 1 N/O, 3-wire, 10 - 30 V DC, M18 x 1 mm, Sn= 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 135940
- EAN / GTIN
- 4015081327331
- HS code
- 8544.42
- Sales unit
- pcs
- Eaton catalogue number
- 135940
- Depth
- 152.4 mm
- Height
- 44.45 mm
- Width
- 152.4 mm
- Weight
- 0.23 kg
- Certifications
- CSA Class No.: 4652-04 / 4652-84; IEC/EN 60947-5-2; CSA-C22.2 No. 14; UL File No.: CSA report applies to both US and Canada; CE; CSA File No.: 224447; CSA; UL 508
- Type
- Inductive sensor
- Electric connection type
- Connector M12
- Enclosure material finishing
- Other
- Actuation type
- Metallic Target
- Enclosure material
- Metal
- Enclosure type
- Cylinder, screw-thread
- Category (EN 954-1)
- B
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Safety performance level (EN ISO 13849-1)
- None
- SIL (IEC 61508)
- None
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Diameter sensor
- 18 mm
- Number of contact energized outputs with signalling function
- 0
- Number of contacts (normally open contacts)
- 1
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 1
- Operational current (Ib) in the switched state at 24 V DC
- 20 A
- Functions
- Short-circuit protection; Protection against polarity reversal; Protection against wire breakage
- Voltage type
- DC
- Mounting method
- Non-flush mounting
- Material
- Metal
- Connection type
- Plug-in connection M12 x 1; 3-wire
- Installation type
- Not flat
- Degree of protection
- IP67; IP69; NEMA Other
- Interface type
- None
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Normally open contact
- Load current
- Max. 100 mA (Ie)
- Residual current
- 0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)
- Residual ripple
- 10 % (Uₑ)
- Shock resistance
- 30 g, Mechanical, Shock duration 11 ms
- Switching frequency
- 500 Hz
- Voltage rating - max
- 30 V
- Product category
- E57 Global Series
- Switching output type
- PNP
- Temperature drift of sn
- 10 %
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn) - max
- 8 mm
- Repeatability
- 1 %
- Sensor length
- 80 mm
- Supply voltage - max
- 30 V
- Supply voltage - min
- 10 V
- Switching hysteresis of Sn
- 15 %
- Voltage drop (Ud)
- 1.5 V
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4015081327331
- SAP 1200304067
- Code 82285831
Product Documentation
Document preview: Area switch, E57-18GU08-GDB (135940) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Green marking strip B = 600
XSFDR06-B
Eaton

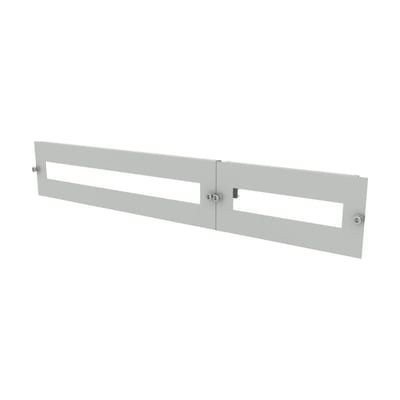

Front plate mod split 31 mod H150 B800 xE
EP-502476
Eaton

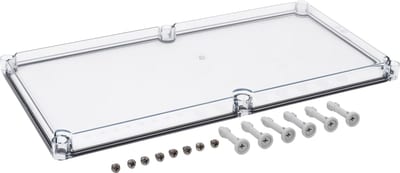

Cover CLEAR 280X560X30
EKT30-T
Eaton

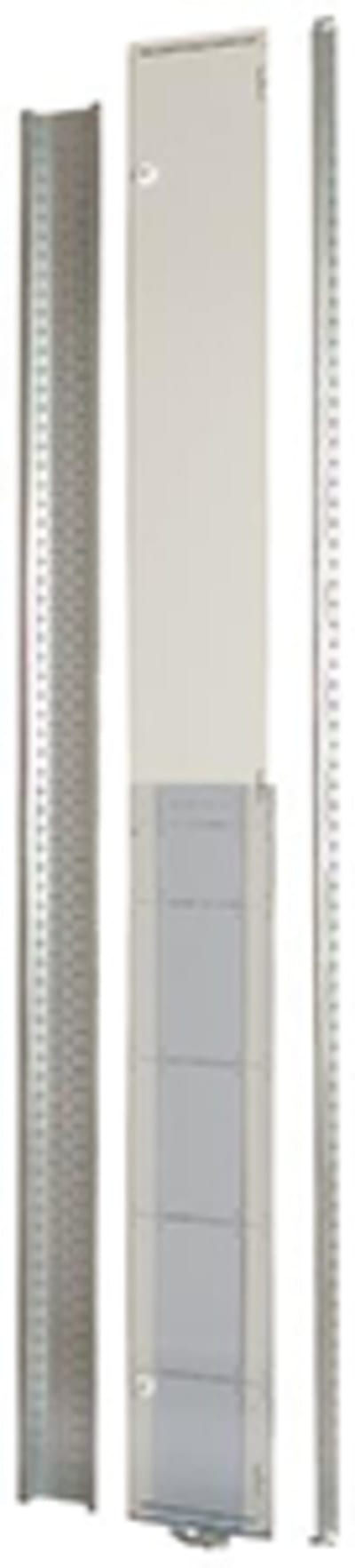

Cablevei B=200mm L=1400mm
XVTL-ICD-14
Eaton
Philipsmejsel 521 (AK-PFI-4P)
Eaton

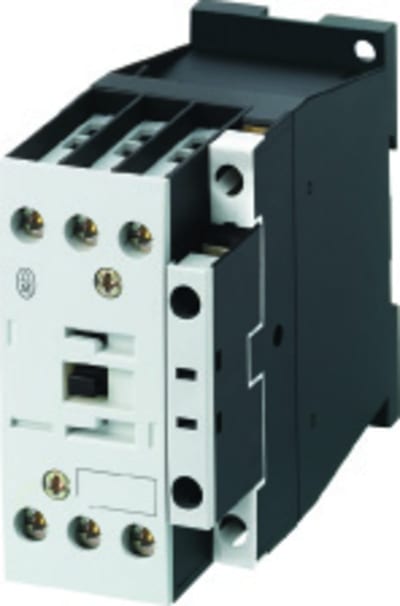

CONTACTOR,25A AC-3, DC Coil (DILM25-01(RDC24))
Eaton

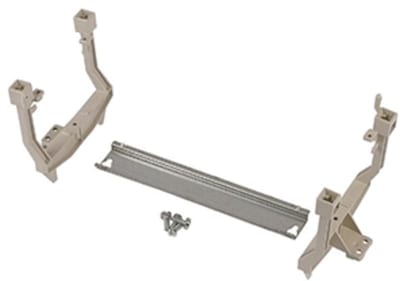

Mounting rail support 1X9
TG23
Eaton

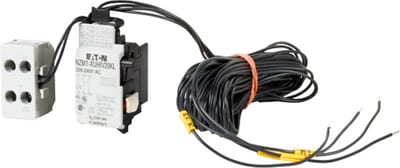

Eaton NZM1-XUHIV208-240VAC Undervoltage release
