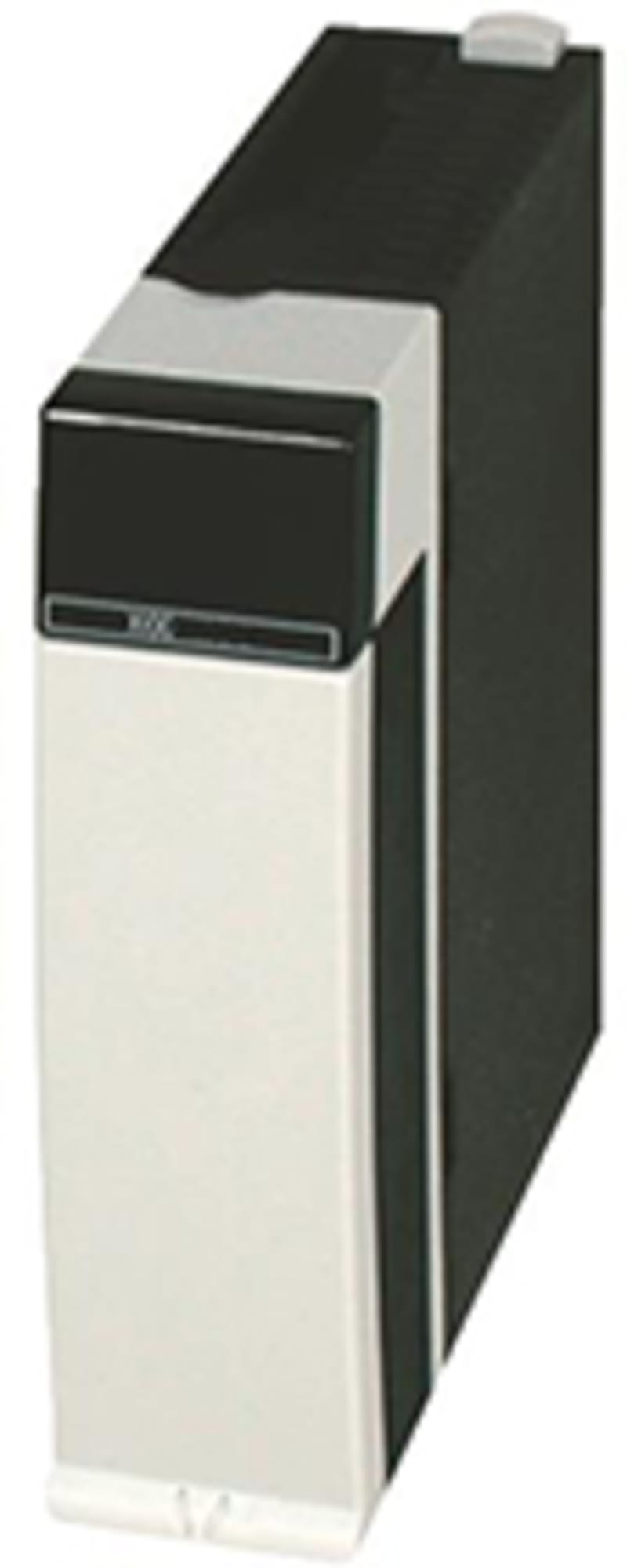

XIOC-4T-PT expansion module 4 Pt100/Pt1000 inputs

Eaton 257901 XIOC-4T-PT expansion module with four Pt100/Pt1000 temperature inputs. 24 V DC supply, screw or spring-clamp connection, IP20, for the XC100/200 controller family.

Manufacturer part number (MPN)

257901

EAN / GTIN

4015082579012

Sales unit

pcs

Eaton catalogue number

257901

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.135 kg

Certifications

CSA-C22.2 No. 0-M; EN 50178; UL; CSA; CSA Class No.: 2252-01; CSA File No.: 012528; CE; CSA-C22.2 No. 142-M; IEC/EN 61131-2; UL File No.: E135462; UL Category Control No.: NRAQ; UL508

Catalog Notes

In these cases, the resistance value is 7FFFhex

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

57 - 150 Hz ± 1.0 mm; 10 - 57 Hz, ± 0.075 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Operating temperature - max

400 °C

Operating temperature - min

-20 °C

Connection type

Screened cable

Static heat dissipation, non-current-dependent Pvs

4.8 W

Power loss

Max. 4.8 W

Power supply

24 V DC (-15/+20 %), 100 mA

Rated operational voltage

24 (12) V DC

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Features

Analog outputs configurable; Input, resistance thermometer; Analog inputs configurable

Functions

Linearization

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

200 mA max., internal (5 V DC), Inputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resistance

Pt100 - IEC 751, Pt1000 (Platinum temperature resistance); Max 0.4 kΩ (4 channels, impedance)

Resolution

15 Bit (signed, digital)

Type

Analog module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Number of channels

4, Input

Accuracy

3 %, -50 to 400 °C (Pt100); 0.5 %, -20 to 40 °C (Pt100); 6 %, -50 to 400 °C (Pt100)

Input

4 Inputs for temperature monitoring (Pt100/1000)

Number of inputs (analog)

4

Number of outputs (analog)

0

Temperature error

≤ -25 °C or ≥ +45 °C = resistance value 7FFFFhex, Error detection -20 °C to 40 °C, Inputs; ≤ -60 °C or ≥ +410 °C = resistance value 7FFFFhex, Error detection -50 °C to 400 °C, Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Analog inputs: Opto-isolated; Analog outputs: no

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules Plug-in terminal block

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

Yes

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Type of electric connection

Screw-/spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Japan

HS Code

8537.10
