Eaton

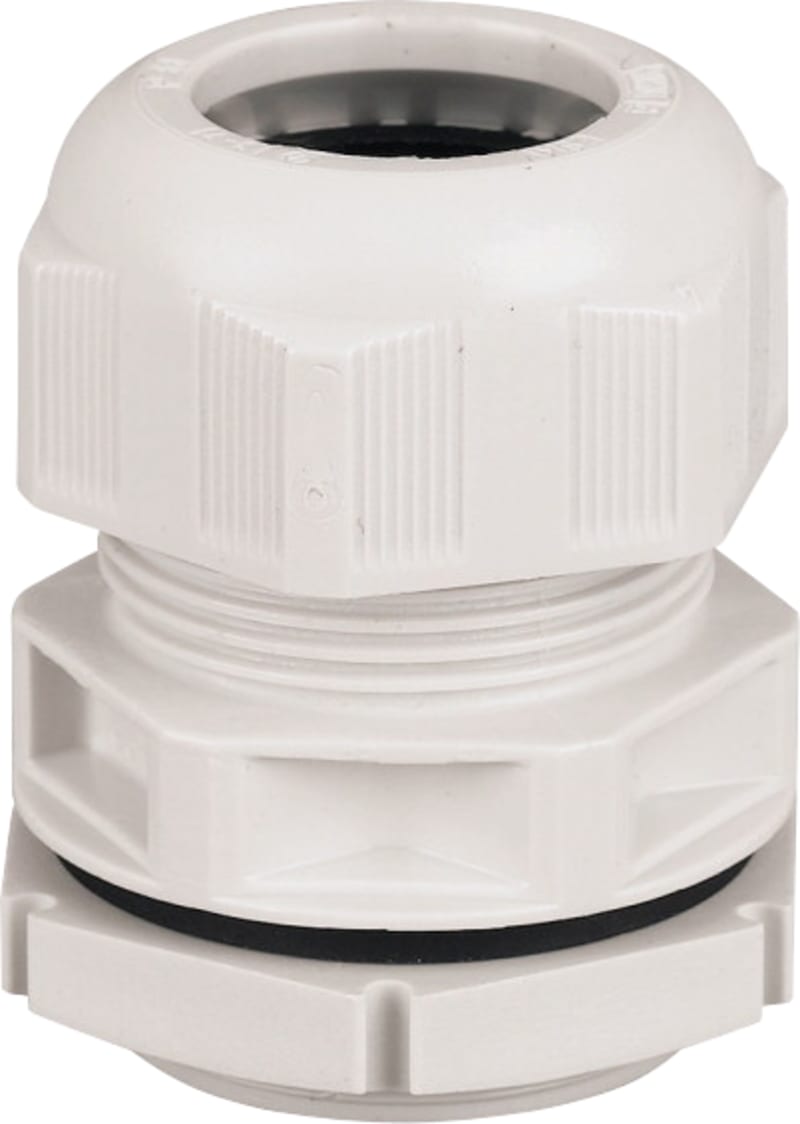

Nipple IP68 M50 (206913)
Part number206913EAN / GTIN4015082069131HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 206913 Accessories for Eaton cabinet and panels: Kabellead-throughsnippel IP68 M50.
Technical Specifications
- Manufacturer part number (MPN)
- 206913
- EAN / GTIN
- 4015082069131
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 206913
- Depth
- 80 mm
- Height
- 50 mm
- Width
- 50 mm
- Weight
- 114 g
- Compliances
- RoHS conform
- Used with
- NYM 35 mm² (4x) or 25 mm² (5x)
- Surface finishing
- RAL 7035, light gray
- Special features
- Flammability classification V2 according to UL94 with lock nut and built-in strain relief with lock nut and built-in strain relief
- Type
- General switchboard accessory
- Chemical resistance
- Resistant against: acetone, petrol, paraffin, diesel, grease, oil, solvent for paints and varnishes
- Material
- Halogen free; Polyamide; Plastic
- Color
- Gray
- Nominal thread size Metric/PG
- 50
- Nominal thread size inch/gas pipe thread
- Other
- Pitch thread
- 1.5 mm
- Thread Length
- 14 mm
- Wrench width
- 55 mm
- Suitable for cable diameter - max
- 35 mm
- Suitable for cable diameter - min
- 21 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Model
- Straight
- Type of sealing
- Cut-out ring
- For ex-zone gas
- None
- For ex-zone dust
- None
- Temperature resistance
- -20 °C - 100 °C, short-time up to approx. 120 °C
- Fitted with
- Locknut; Strain Relief
- Flammability characteristics (UL)
- V2 (UL94)
- Lamp type included
- Halogen Free
- Flame retardant
- Glow wire test 750 °C according to EN 60695-2-11
- Thread type
- Metric
- Protection, proofing and resistance
- Shock Resistant
- Accessory/spare part type
- Cable management
- Stress fracture risk
- Low
- Opening diameter
- 50.5 mm
- Operating temperature - max
- 120 °C
- Operating temperature - min
- -20 °C
- Outer cable diameter - max
- 35 mm
- Outer cable diameter - min
- 21 mm
- RAL-number
- 7035
- Cable entry type
- M50
- For wall thickness - min
- 0.5 mm
- For wall thickness - max
- 2.5 mm
- Connection type to housing
- Screwing
- Type of strain relief according to EN 62444
- Type A
- Material sealing
- Ethylene-propylene diene monomer rubber (EPDM)
- For wall thickness
- 0.5–2.5 mm
- Pressure-compensating
- No
- Suitable for cable diameter
- 21–35 mm
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -20–120 °C
- Explosion-tested version
- No
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Colour
- Grey
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4015082069131
- SAP 1000664443
- Code 8503938
Product Documentation
Document preview: NIPPLE IP68 M50 (206913) — Specification Data Sheet (OEM)
