Eaton

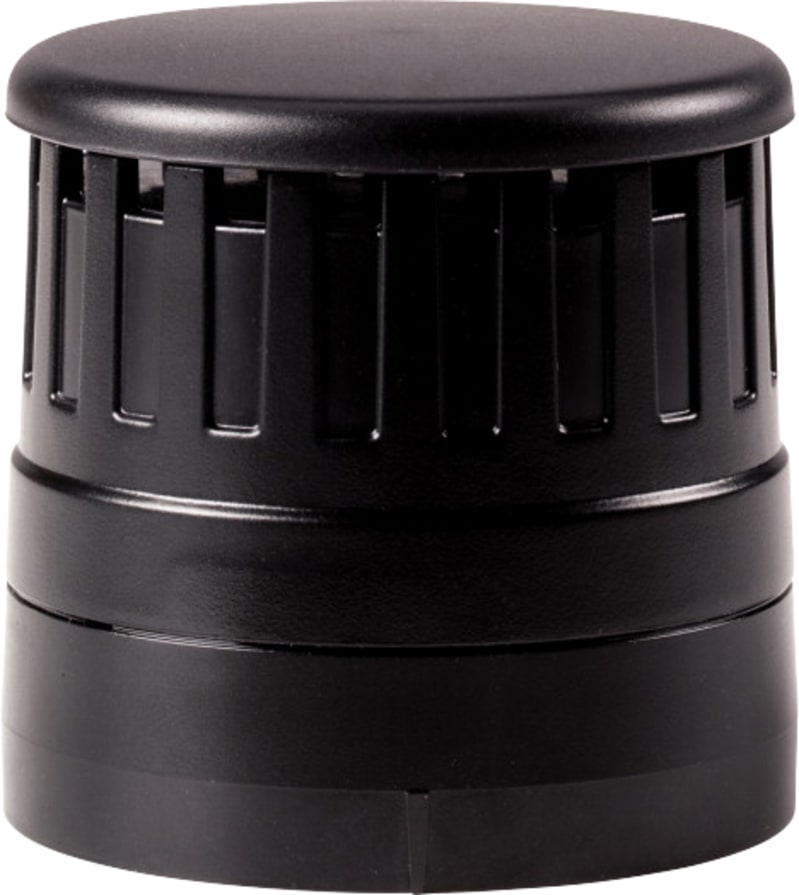

Akuplug,120V,Multitone (SL7-AP120-M)
Part numberSL7-AP120-MEAN / GTIN4015081679164HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug,120V,Multitone (SL7-AP120-M) is listed in the cBallast industrial catalogue. HS code: 8531.80.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-AP120-M EAN / GTIN: 4015081679164 Sales unit: pcs Eaton catalogue number: 171288 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.103 kg Certifications: UL report applies to both US and Canada; UL Category Control No.: NKCR; CSA-C22.2 No. 14-10; IEC/EN 60529; UL File No.: E29184; CSA-C22.2 No. 94-91; UL; UL 508; CSA Class No.: NKCR7; Certified by UL for use in Canada; IEC/EN 60947-5-1; CE Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 45 mA Rated operational voltage (Ue) at AC - max: 120 V Rated operational voltage (Ue) at AC - min: 110 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Other Alarm type: Tone adjustable; Internal sound setting, 3 pole DIP; 8 types of sound; Pulsed tone; Continuous tone Connection to SmartWire-DT: No Current consumption: 0.045 A, at 110/120 V AC Degree of protection: IP66; NEMA 13 Frequency rating: 500 - 2700 Hz Loudness: 100 dB; Can be adjusted with built-in potentiometer material: Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC) Mounting position: Place only at the highest position on a pole; As required Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Type: Acoustic module Voltage type: AC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 110–120 V Operating voltage AC 60 Hz: 110–120 V Country of origin: Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081679164
- SAP 1000492323
- Code 8605778
Product Documentation
Document preview: Akuplug,120V,Multitone (SL7-AP120-M) — Specification Data Sheet (OEM)
