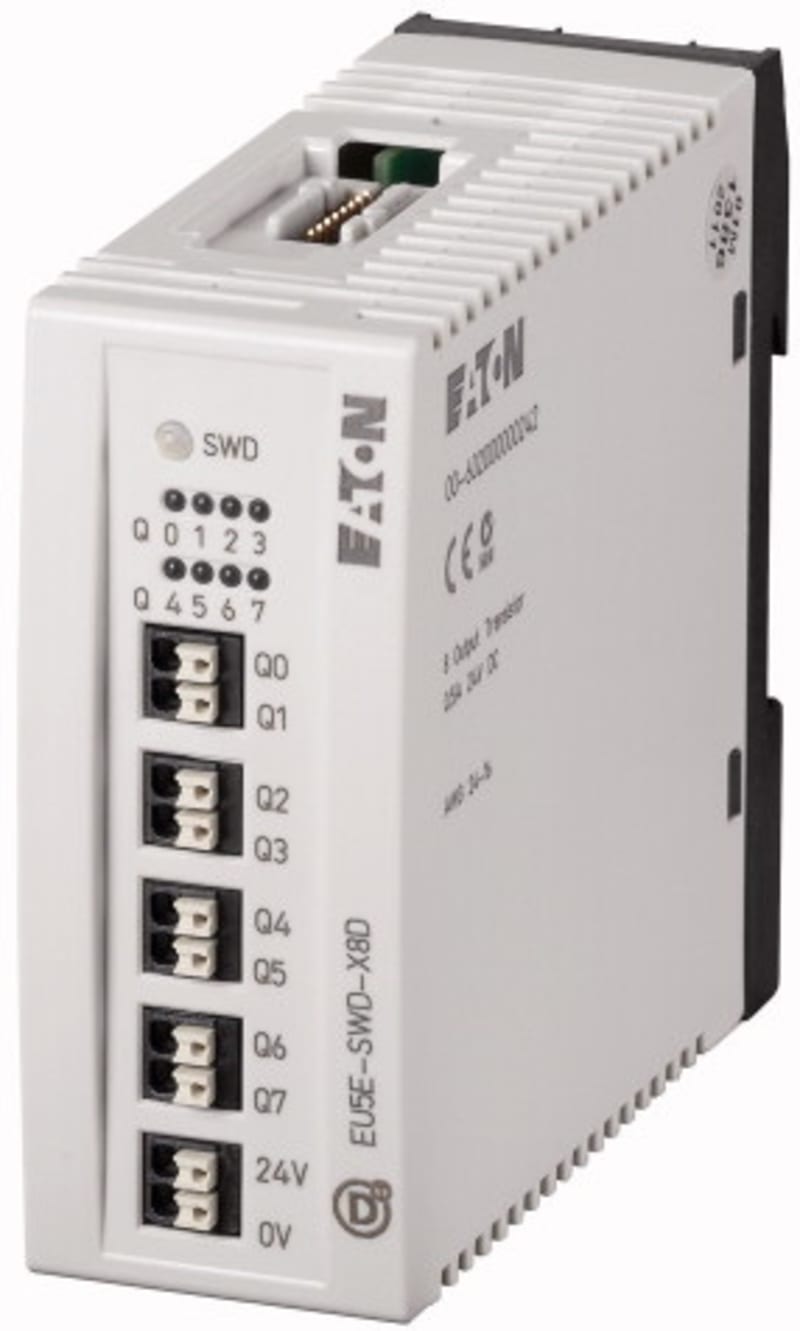

Eaton EU5E-SWD-X8D

Eaton EU5E-SWD-X8D is listed under Control & Automation / I/O Modules. Sales unit: pcs; Eaton catalogue number: 144061; Depth: 102 mm; Height: 90 mm; Width: 35 mm; Weight: 0.09 kg.

Manufacturer part number (MPN)

EU5E-SWD-X8D

EAN / GTIN

4015081405916

Sales unit

pcs

Eaton catalogue number

144061

Depth

102 mm

Height

90 mm

Width

35 mm

Weight

0.09 kg

Certifications

CSA; IEC/EN 61131-2; CSA File No.: 2324643; UL Category Control No.: NKCR; UL File No.: E29184; CSA Class No.: 3211-07; UL

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Condensation: prevent with appropriate measures

Operating temperature - max

55 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

Push in terminals, Supply and I/O sensor; Plug, 8-pole

SmartWire-DT; Connection plug

external device plug SWD4-8SF2-5, SmartWire-DT

Data transfer rate

250 kBit/s, SmartWire-DT; Setting automatically

LED indicator

Status indication of display outputs: Yellow LED; Status indication of SmartWire-DT network: Green LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

1.3 W

Input current at signal 1

4 mA

Output current

0.5 A

Power loss

1.3 W

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply)

Short-circuit protection

Outputs are short-circuit proof

Short-circuit tripping current

Max. 1.2 A over 3 ms, Digital semi-conductor outputs

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

2 kV, Supply cable, according to IEC/EN 61131-2, Level 3; 1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3; 1 kV, Signal cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class A (EN 55011)

Surge rating

0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Flat plug-in connection

Features

Fieldbus connection over separate bus coupler possible; Overload proof (with diagnostics); Fieldbus connection over separate bus coupler possible

Functions

For connection of digital I/O signals; Short-circuit protection, outputs available

Current consumption

43 mA, SmartWire-DT network

Degree of protection

IP20

Mounting method

Wall mounting/direct mounting; Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Overvoltage category

II

Pollution degree

2

Product category

SmartWire-DT slave

Residual ripple

≤ 5 % (input voltage)

Terminal capacity

0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor; 0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor

Type

Digital modules

Voltage type

DC

Lamp load

≤ 3 W (at RLL)

Number of inputs (digital)

0

Number of outputs (digital)

8

Output

8 Transistor Outputs

Switching capacity

IEC/EN 60947-5-1, utilization category DC-13, Digital outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Outputs to SmartWire-DT: yes

Protection against polarity reversal

Yes; Yes, for supply voltage (Siemens MPI optional)

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Number of digital outputs

8

Digital inputs configurable

No

Digital outputs configurable

No

Permitted voltage at input

0–28.8 V

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

HS Code

8538.90

• EAN 4015081405916
• SAP 1000362985
• Code 8831296
