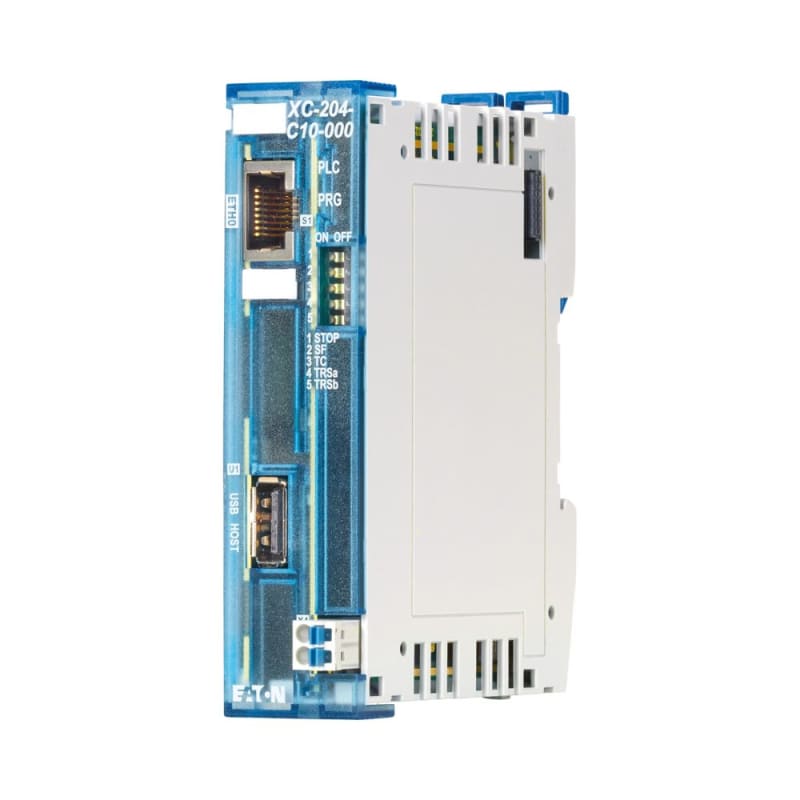

Modular PLC XC204 (XC-204-C10-000)

Eaton XC-204-C10-000 Modular PLS XC204, Micro PLS, programmable CODESYS 3, USB, Ethernet, XN300 IO expandable.

Manufacturer part number (MPN)

XC-204-C10-000

EAN / GTIN

4015081997619

Sales unit

pcs

Package quantity

3 pcs

Eaton catalogue number

199973

Depth

104.2 mm

Height

29.3 mm

Width

80.3 mm

Weight

0.11 kg

Certifications

UL listed; EN 61131; EAC; UL File No.: E205091; CE; cULus Listed

Mounting position

Vertical (on horizontal top-hat rail)

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Vibration resistance

5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-20 °C

Ambient storage temperature - min

-25 °C

Relative humidity

< 95 % (non-condensing)

Interfaces

ETH; XN300

Protocol

EtherNet/IP; MODBUS; Other bus systems; TCP/IP

Heat dissipation details

The max. heat dissipation is specified as the maximum power produced inside the device's housing.

Static heat dissipation, non-current-dependent Pvs

6.3 W

Emitted interference

40 dB (at 30 - 230 MHz, Class A, radiated, high frequency); 47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)

Fitted with

XSOFT-CODESYS 3

Functions

Additional program memory possible

Connection type

Push-in spring-cage terminal, Connection design in TOP direction

Degree of protection

IP20

Model

Modular

Mounting method

Rail mounting possible

Overvoltage category

II

Pollution degree

2

Voltage type

DC

Number of channels

0

Number of inputs (analog)

0

Number of inputs (digital)

0

Number of outputs (analog)

0

Number of outputs (digital)

0

Number of relay outputs

0

Rated operational current (Ie)

1.4 A (supply input)

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

19.2 VDC

Voltage dips

20 ms; 10 ms

Explosion safety category for dust

None

Explosion safety category for gas

None

Memory capacity

512,000 kByte

Terminal capacity

0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)

Terminal capacity (AWG)

24 - 16

Terminal capacity (flexible with ferrule)

0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)

Terminal capacity (flexible)

0.2 - 1.5 mm², H 07V-K

Terminal capacity (solid)

0.2 - 1.5 mm², H07V-U

With display

No

Suitable for safety functions

No

Type of memory

RAM

Memory size

512000 kByte

Processing time (1K, binary operation)

0.00125 ms

Supporting protocol for LON

No

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces USB

1

Number of HW-interfaces other

1

With optical interface

No

Additional program memory possible

Yes

Supporting protocol for TCP/IP

Yes

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

Yes

Redundancy

No

Suitable for rail mounting

Yes

System accessory

Yes

Appendant operation agent (Ex ia)

No

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Front built-in possible

No

Rack-assembly possible

No

Wall mounting/direct mounting

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

IO link master

No

Max. number of time switches

1000

Performance level according to EN ISO 13849-1

None

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supply voltage DC

19.2–30 V

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

Supporting protocol for IEC 61850 Ethernet

No

Supporting protocol for DNP3

No

Supporting protocol for IEC 60870

No

Mobile communications standard 4G (LTE)

No

Supporting protocol for EtherCAT

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Country of origin

Germany

HS Code

8537.10
