EASY-E4-AC, Styrerelè (197216)

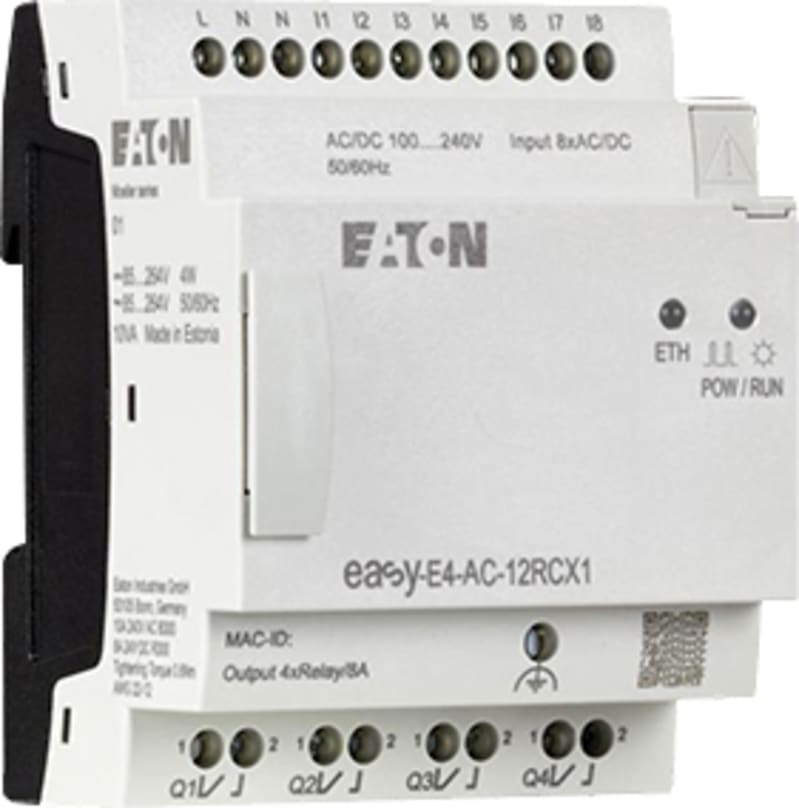

Eaton 197216 EASY-E4-AC-12RCX1.

Manufacturer part number (MPN)

197216

EAN / GTIN

4015080892779

Sales unit

pcs

Eaton catalogue number

197216

Depth

58 mm

Height

90 mm

Width

72 mm

Weight

0.25 kg

Compliances

Eaton supports the product until its end of life

Catalog Notes

Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

According to IEC/EN 60068-2-6; 10 - 57 Hz, 0.15 mm constant amplitude; 57 - 150 Hz, 2 g constant acceleration

Cable length

100 m (max. permissible per input I7 to I8), Digital inputs 115/230 V AC; 40 m (max. permissible per input I1 to I6), Digital inputs 115/230 V AC

Cable type

Ethernet: CAT5

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201

CSA-C22.2 NO. 61010-2-201; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal; Ethernet: RJ45 plug, 8-pole

Data transfer rate

10/100 MBit/s

LED indicator

Status indication of Ethernet: LED; Status indication of Power/RUN

Equipment heat dissipation, current-dependent Pvid

4 W

Static heat dissipation, non-current-dependent Pvs

4 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

8 A

Inrush current

12.5 A (for 6 ms)

Power consumption

4 W

Power loss

10 W

Rated breaking capacity

300000 Operations at AC-15, 250 V AC, 3 A (600 Ops./h); 200000 Operations at DC-13, 24 V DC, 1 A (500 Ops./h)

Rated insulation voltage (Ui)

240 V

Rated operational voltage

110/120 V DC (power supply); Max. 300 V DC; Max. 300 V AC; 100/110/115/120/230/240 AC (-15 %/+10 %); 85 - 264 V AC; 240 V AC

Supply frequency

50/60 Hz (± 5%)

Supply voltage at AC

50 Hz - max

264 VAC

Supply voltage at AC

50 Hz - min

85 VAC

Supply voltage at DC - max

264 VDC

Supply voltage at DC - min

85 VDC

Uninterrupted current

8 A AC, at 240 V AC (UL/CSA); 1 A DC, at R 300 (UL/CSA); 8 A DC, at 24 V DC (UL/CSA); 5 A AC, max. thermal continuous current cos ϕ = 1 at B 300 (UL/CSA)

Air discharge

8 kV

Burst impulse

2 kV, Supply cable; According to IEC/EN 61000-4-4; 2 kV, Signal cable

Contact discharge

6 kV

Electromagnetic fields

1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3); 10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 1 kV, Supply cables, symmetrical, power pulses (Surge), EMC; 2 kV, Supply cables, asymmetrical, power pulses (Surge), EMC

Voltage dips

10 ms

Features

Expandable; Networkable (Ethernet)

Fitted with

Timer; Real time clock; Relay output

Indication

LCD-display used as status indication of Digital inputs 115/230 V AC

Degree of protection

IP20

Display temperature - max

55 °C

Display temperature - min

0 °C

Input frequency

50/60 Hz (Digital inputs, at 115/230 V AC); 50/60 Hz (Digital inputs, at 24 V DC)

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Lifespan, mechanical

1,000,000 Operations

Mounting method

Front build in possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Wall mounting/direct mounting; Rail mounting possible; Screw fixing using fixing brackets ZB4-101-GF1 (accessories)

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protection

B16 circuit breaker or 8 A (T) fuse, Protection of an Output relay

Protocol

MODBUS; TCP/IP

Rated impulse withstand voltage (Uimp)

Relay outputs: 6 kV (contact-coil)

Residual ripple

≤ 5 %

Resolution

1 min (Range H:M) 1 s (Range M:S) 5 ms (Range S)

Software

EASYSOFT-SWLIC/easySoft

Switching frequency

10 Hz, Relay outputs; 2 Hz, Resistive load/lamp load, Relay outputs; 0.5 Hz, Inductive load, Relay outputs

Type

easyE4 base device

Used with

easyE4

Utilization category

B 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes AC; R 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes DC

Voltage type

AC

Accuracy

± 1 %, Repetition accuracy of timing relays (of values); ± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)

Input current

6 x 0.5 mA (I1 - I6, at 230 V AC, 50 Hz, at signal 1); 2 x 4 mA (I7 - I8, at 115 V AC, 60 Hz, at signal 1); 6 x 0.25 mA (I1 - I6, at 115 V AC, 60 Hz, at signal 1); 2 x 6 mA (I7 - I8, at 230 V AC, 50 Hz, at signal 1); 6 x 0.25 mA (I1 - I8, at 115 V AC, 60 Hz, at signal 1)

Input voltage

Condition 0: 0 - 40 V AC, Digital inputs

115/230 V AC); Condition 1

79 - 264 V AC, Digital inputs, 115/230 V AC)

Making/breaking capacity

28/28 VA (DC, at R 300); 3600/360 VA (AC, at B 300)

Number of inputs (analog)

0

Number of inputs (digital)

8

Number of outputs (analog)

0

Number of outputs (digital)

4

Output

Relay outputs in groups of 1; 4 Relay Outputs; > 500 mA (Relay outputs

Recommended for load

12 V AC/DC); Voltage; Current

Parallel switching

Not permitted

Explosion safety category for dust

None

Explosion safety category for gas

None

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional)

Safe isolation

300 V AC, Between coil and contact, According to EN 50178; 300 V AC, Between two contacts, According to EN 50178

Short-circuit protection

≥ 1A (T), Fuse, Power supply

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage AC 50 Hz

85–264 V

Supply voltage AC 60 Hz

85–264 V

Supply voltage DC

85–264 V

Switching current

8 A

Number of digital inputs

8

Number of digital outputs

4

With relay output

Yes

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

HS Code

8537.10
