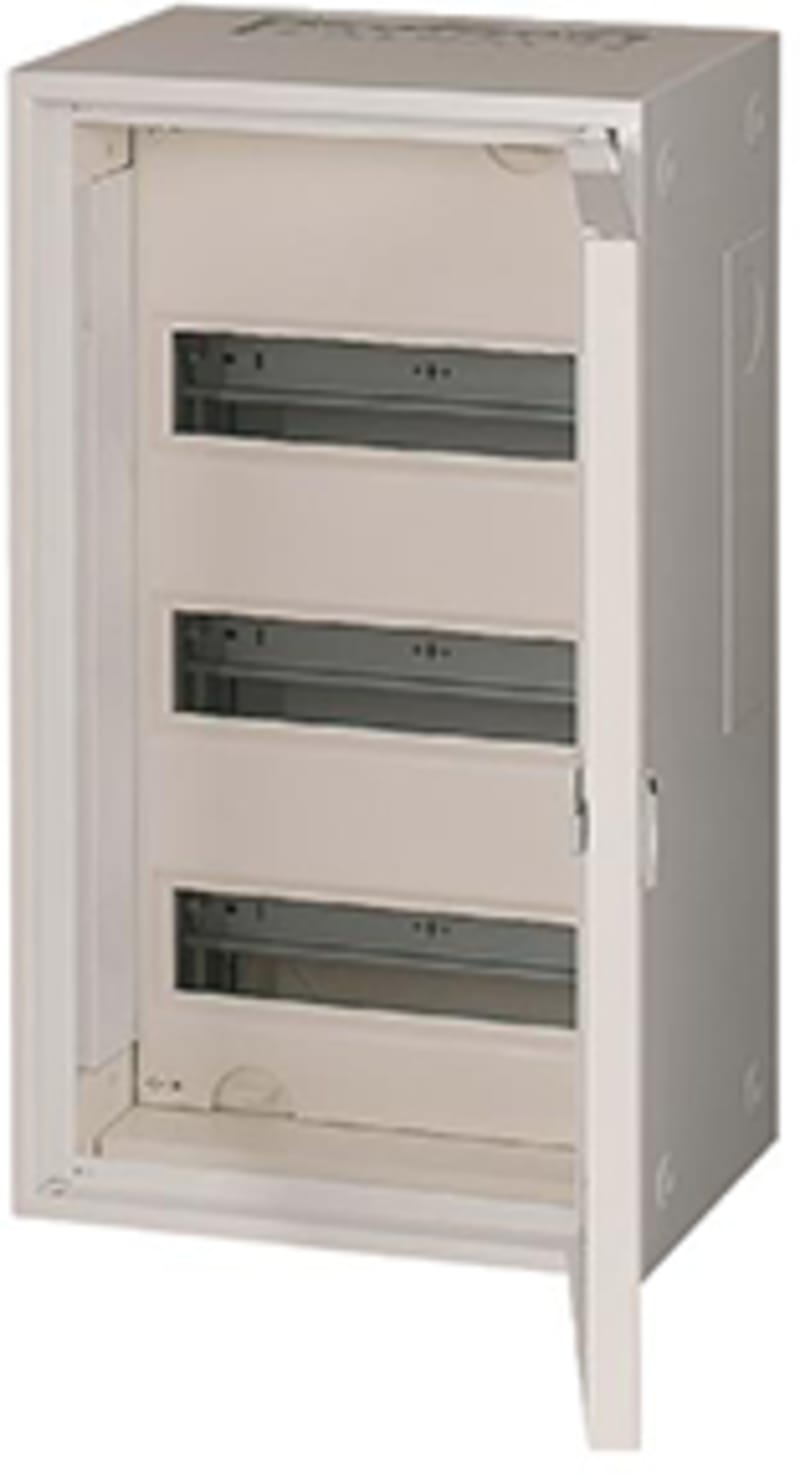

Wall-mount cabinet EWK 36 mod H500 B300 D225
Part numberEWK-G13/31EAN / GTIN9010238007406HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Wall-mount cabinet EWK 36 mod H500 B300 D225 (part number EWK-G13/31) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 193157; Depth: 230 mm; Height: 500 mm; Width: 300 mm; Weight: 9.9 kg.
Technical Specifications
- Manufacturer part number (MPN)
- EWK-G13/31
- EAN / GTIN
- 9010238007406
- Sales unit
- pcs
- Eaton catalogue number
- 193157
- Depth
- 230 mm
- Height
- 500 mm
- Width
- 300 mm
- Weight
- 9.9 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 62208
- Features
- EMC-version; Earthing terminal block; Neutral terminal block
- Fitted with
- Neutral-/protective conductor terminal; Locking screws can be sealed; Installation panel for modular installation devices; Enclosure
- Functions
- Extension possible; Basic device; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 9016
- Special features
- IP31 Protection Class II Steel sheet enclosure white (RAL 9016)
- Used with
- Installation distribution boards; EWK DBO; Basic device
- Application
- Indoor
- Color
- White; Traffic white (RAL 9016)
- Type
- Basic device ECO distribution board Installation distribution board
- Ambient operating temperature details
- -5 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 400 V AC
- Built-in depth
- 230 mm
- Built-in height
- 500 mm
- Built-in width
- 300 mm
- Cable entry postion
- Cable entries on top and bottom via F3A flange (not part of delivery), back plate
- Closure type
- Other
- Cover/door color
- White
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- Enclosure material
- Steel
- Internal depth
- 128 mm
- Material
- Polystyren (plastic); Sheet steel, powder-coated
- Module rack type
- Rail frame
- Mounting method
- Surface mounted (plaster); DIN-rail; Surface mounting
- Number of module space units per row
- 12
- Number of rows
- 3
- PE and N terminal number and cross section
- PE: 6 x (1.5 mm² - 16 mm²); N: 21 x (0.75 mm² - 4 mm²)
- Protective shrouding material
- Plastic
- Terminal type
- Plug-in terminals
- Width in number of modular spacings
- 12
- Degree of protection
- IP31; IK08 (impact resistance)
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- Yes
- Inner depth
- 128 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- Yes
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238007406
- SAP 1200086264
- Code 81941820
Product Documentation
Document preview: Wall-mount cabinet EWK 36 mod H500 B300 D225 (EWK-G13/31) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Contactor 25A DC-Coil (DILM25-10(RDC24))
Eaton
LED-Element RED 85-264V Bottom
M22-LEDC230-R
Eaton
Overload relay ZBT95-97
Eaton
Led Strobe Light Orange 24V, HP (SL4-FL24-A-M)
Eaton
Eaton FAZ-Z50/2 Miniature Circuit Breaker — 2P, Type Z, 50 A, 15 kA
Eaton
Step Switch (T0-2-96/I1)
Eaton
Key switch, RMQ (M22-WS3-2K10-BVP)
Eaton
Auxiliary cover
22DDILE
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
