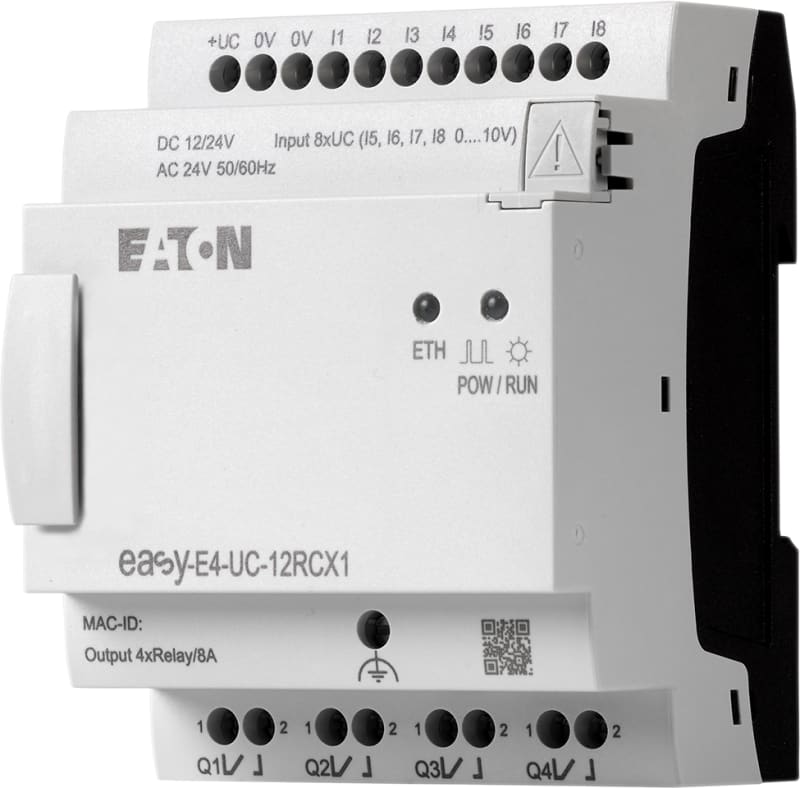

Styrerelè, EASYE4 (197212)

Eaton 197212 EASY-E4-UC-12RCX1.

Manufacturer part number (MPN)

197212

EAN / GTIN

4015081939473

Sales unit

pcs

Eaton catalogue number

197212

Depth

58 mm

Height

90 mm

Width

72 mm

Weight

0.25 kg

Compliances

Eaton supports the product until its end of life

Catalog Notes

Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; According to IEC/EN 60068-2-6; 10 - 57 Hz, 0.15 mm constant amplitude

Cable length

100 m, unscreened, Digital inputs 12 V DC; 100 m, unscreened, Digital inputs 24 V AC; ≤ 30 m, screened, Analog inputs; 100 m, unscreened, Digital inputs 24 V DC; 40 m (max. per input), Digital inputs 24 V DC

Cable type

Ethernet: CAT5

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Condensation: prevent with appropriate measures; Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal; Ethernet: RJ45 plug, 8-pole

Data transfer rate

10/100 MBit/s

LED indicator

Status indication of Power/RUN; Status indication of Ethernet: LED

Equipment heat dissipation, current-dependent Pvid

4 W

Static heat dissipation, non-current-dependent Pvs

3 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

8 A

Power consumption

3 W

Rated breaking capacity

200000 Operations at DC-13, 24 V DC, 1 A (500 Ops./h); 300000 Operations at AC-15, 250 V AC, 3 A (600 Ops./h)

Rated insulation voltage (Ui)

240 V

Rated operational voltage

10.2 - 28.8 V DC; 12 V DC (digital inputs); 12/24 V DC (-15 %/+ 20 % - power supply); 24 V AC (digital inputs); 24 V DC (digital inputs); 20.4 - 26.4 V AC; Max. 300 V AC; 24 V AC (-15 %/+10 % - power supply); 240 V AC; Max. 300 V DC

Supply frequency

50/60 Hz (± 5%)

Supply voltage at AC

50 Hz - max

26.4 VAC

Supply voltage at AC

50 Hz - min

20.4 VAC

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

10.2 VDC

Uninterrupted current

1 A DC, at R 300 (UL/CSA); 5 A AC, max. thermal continuous current cos ϕ = 1 at B 300 (UL/CSA); 8 A DC, at 24 V DC (UL/CSA); 10 A AC, at 240 V AC (UL/CSA)

Air discharge

8 kV

Burst impulse

2 kV, Signal cable; 2 kV, Supply cable; According to IEC/EN 61000-4-4

Contact discharge

6 kV

Electromagnetic fields

10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

2 kV, Supply cables, asymmetrical, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 1 kV, Supply cables, symmetrical, power pulses (Surge), EMC

Voltage dips

≤ 1 ms from rated voltage (12 V DC); 10 ms

Features

Expandable; Networkable (Ethernet)

Fitted with

Timer; Relay output; Real time clock

Indication

LCD-display used as status indication of Digital inputs 12 V DC; LCD-display used as status indication of Digital inputs 24 V DC

Degree of protection

IP20

Frequency counter

Pulse shape: Square (digital inputs 24 V DC); Cable length: ≤ 20 m (screened

Digital inputs 24 V DC); Number

4 (I1, I2, I3

I4 - Digital inputs 24 V DC); Pulse pause ratio

1:1 (Digital inputs 24 V DC); Counter frequency: 5 kHz (Digital inputs 24 V DC)

Input frequency

50/60 Hz (Digital inputs, at 24 V DC)

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Lifespan, mechanical

10,000,000 Operations

Mounting method

Front build in possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Wall mounting/direct mounting; Rail mounting possible; Screw fixing using fixing brackets ZB4-101-GF1 (accessories)

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protection

Miniature circuit-breaker B16 or slow-blow 8 A fuse, Protection of an output relay

Protocol

MODBUS; TCP/IP

Rated impulse withstand voltage (Uimp)

Relay outputs: 6 kV (contact-coil)

Residual ripple

≤ 5 %

Resolution

1 min (Range H:M) 1 s (Range M:S) 12 Bit (value 0 - 4095, Analog inputs) 5 ms (Range S)

Software

EASYSOFT-SWLIC/easySoft

Switching frequency

0.5 Hz, Inductive load, Relay outputs; 2 Hz, Resistive load/lamp load, Relay outputs; 10 Hz, Relay outputs

Type

easyE4 base device

Used with

easyE4

Utilization category

B 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes AC; R 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes DC

Voltage type

AC/DC

Accuracy

± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year); ± 2 %, (I5, I6, I7, I8) ± 0.12 V, of actual value, within a single device (Analog Inputs); ± 1 %, Repetition accuracy of timing relays (of values); ± 3 %, of actual value, two easy devices (Analog Inputs)

Conversions

Each CPU cycle for Analog inputs

Incremental counter

Number of counter inputs: 2 (I1 + I2

I3 + I4); Signal offset

90°; Pulse pause ratio: 1:1; Value range: -2147483648 to +2147483647; Pulse shape: Square; Counter frequency: ≤ 5 kHz

Incremental encoder

Cable length: ≤ 20 m (screened)

Input

Voltage (DC)

Input current

2.2 mA (I5 - I8, at 24 V DC, at signal 1); 3.3 mA (I1 - I4, at 24 V DC, at signal 1); 1 mA (Analog inputs); 200 mA

Input impedance

13.3 kΩ

Making/breaking capacity

3600/360 VA (AC, at B 300); 28/28 VA (DC, at R 300)

Number of inputs (analog)

0; 4

Number of inputs (digital)

4; 8

Number of outputs (analog)

0

Number of outputs (digital)

4

Output

Relay outputs in groups of 1; > 500 mA (Relay outputs

Recommended for load

12 V AC/DC); 4 Relay Outputs; Voltage; Current

Parallel switching

Not permitted

Rapid counter inputs

Value range: -2147483648 to +2147483647; Number of rapid counter inputs: 4 (I1, I2, I3

I4); Cable length

≤ 20 m (shielded); Pulse pause ratio: 1:1; Pulse shape: Square; Counter frequency: ≤ 10 kHz

Signal range

0 - 10 V DC, Analog inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional)

Safe isolation

300 V AC, Between coil and contact, According to EN 50178; 300 V AC, Between two contacts, According to EN 50178

Short-circuit protection

≥ 1A (T), Fuse, Power supply

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Document Name

Description Action

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage AC 50 Hz

85–264 V

Supply voltage AC 60 Hz

85–264 V

Supply voltage DC

10.2–28.8 V

Switching current

8 A

Number of digital inputs

8

Number of digital outputs

4

HS Code

8537.10
