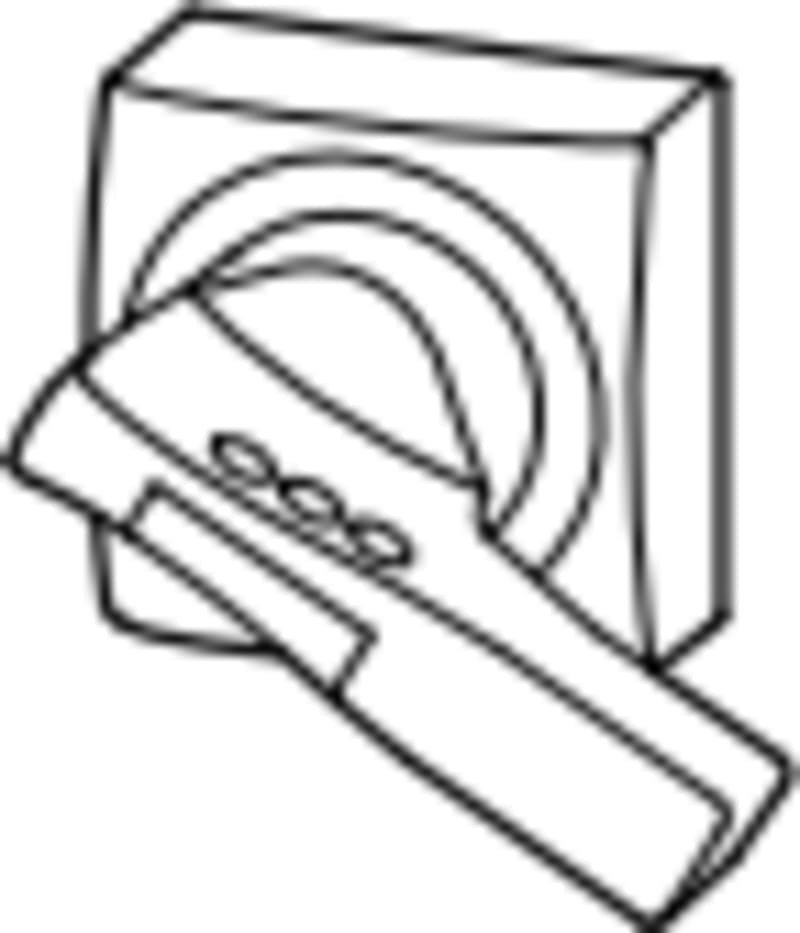

Eaton Rotary handle Lockable Red Low Type NZM2-XTVDVR-0

Eaton NZM2-XTVDVR-0 Rotary handle Lockable Red Low Type.

Manufacturer part number (MPN)

NZM2-XTVDVR-0

EAN / GTIN

4015082794019

Sales unit

pcs

Eaton catalogue number

279401

Depth

100 mm

Height

190 mm

Width

110 mm

Weight

0.715 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

UL489; CE marking; UL (Category Control Number DIHS); CSA certified; UL (File No. E140305); IEC60947; CSA (File No. 22086); CSA-C22.2 No. 5-09; CSA (Class No. 1437-01); UL listed

Features

Lockable; Red-yellow for emergency switching off

Fitted with

Padlock

Frame

NZM2

Suitable for

Emergency stop; Switch disconnector; Power circuit breaker

Type

Accessory Door coupling rotary handle

Used with

NZM2(-4), PN2(-4), N(S)2(-4)

Color

Red

Cover/door type

Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock not defeated in the locked OFF position.; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

Lockable on the handle on the switch using up to 3 padlocks; With door interlock

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

Yes

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082794019
• SAP 1000080420
• Code 8844351
